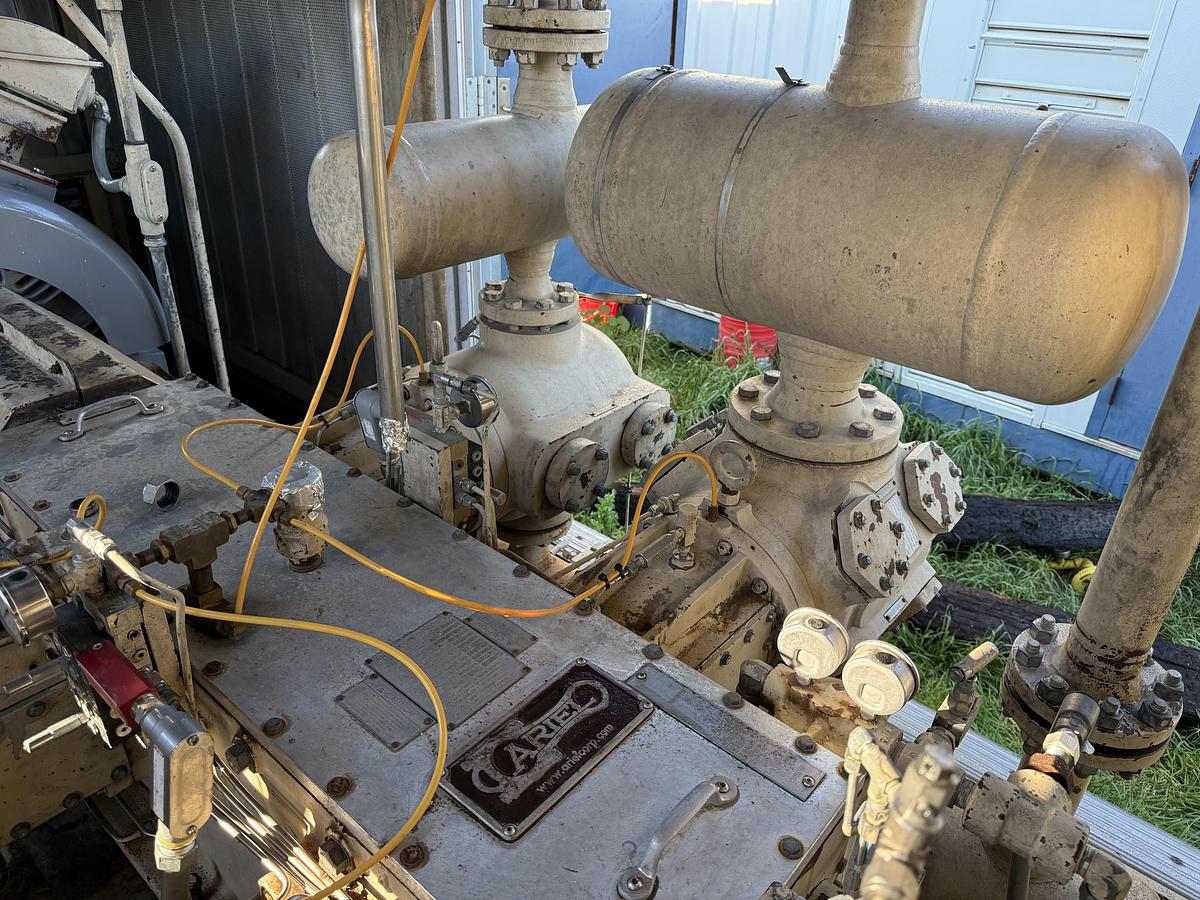

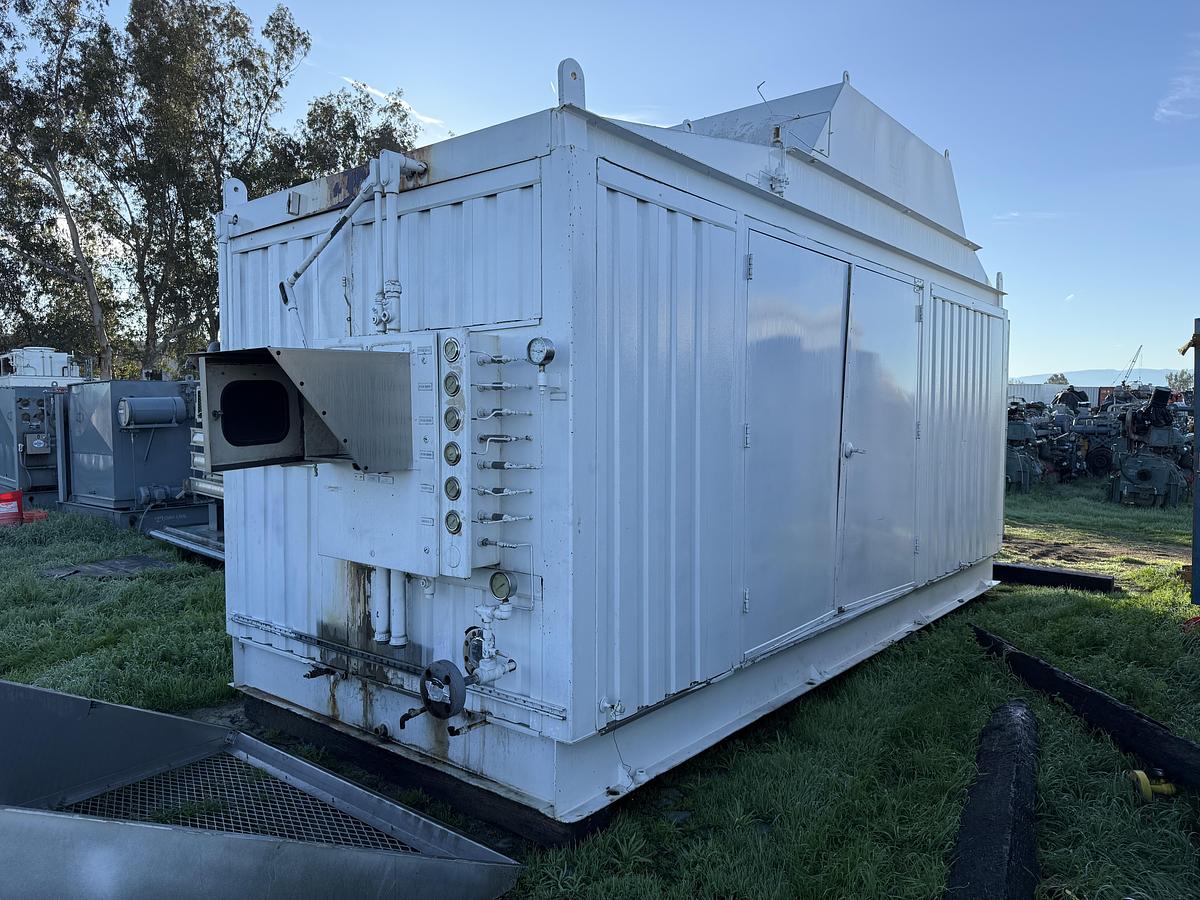

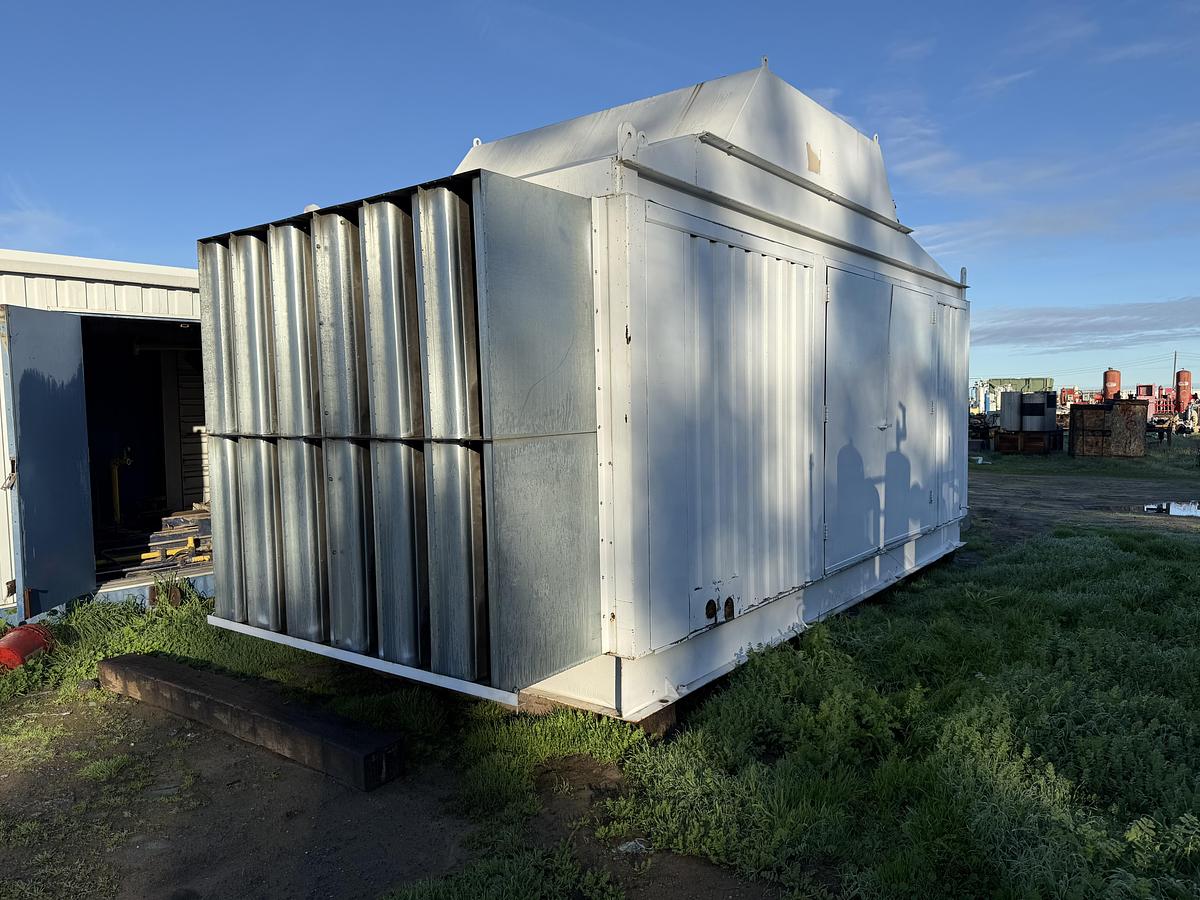

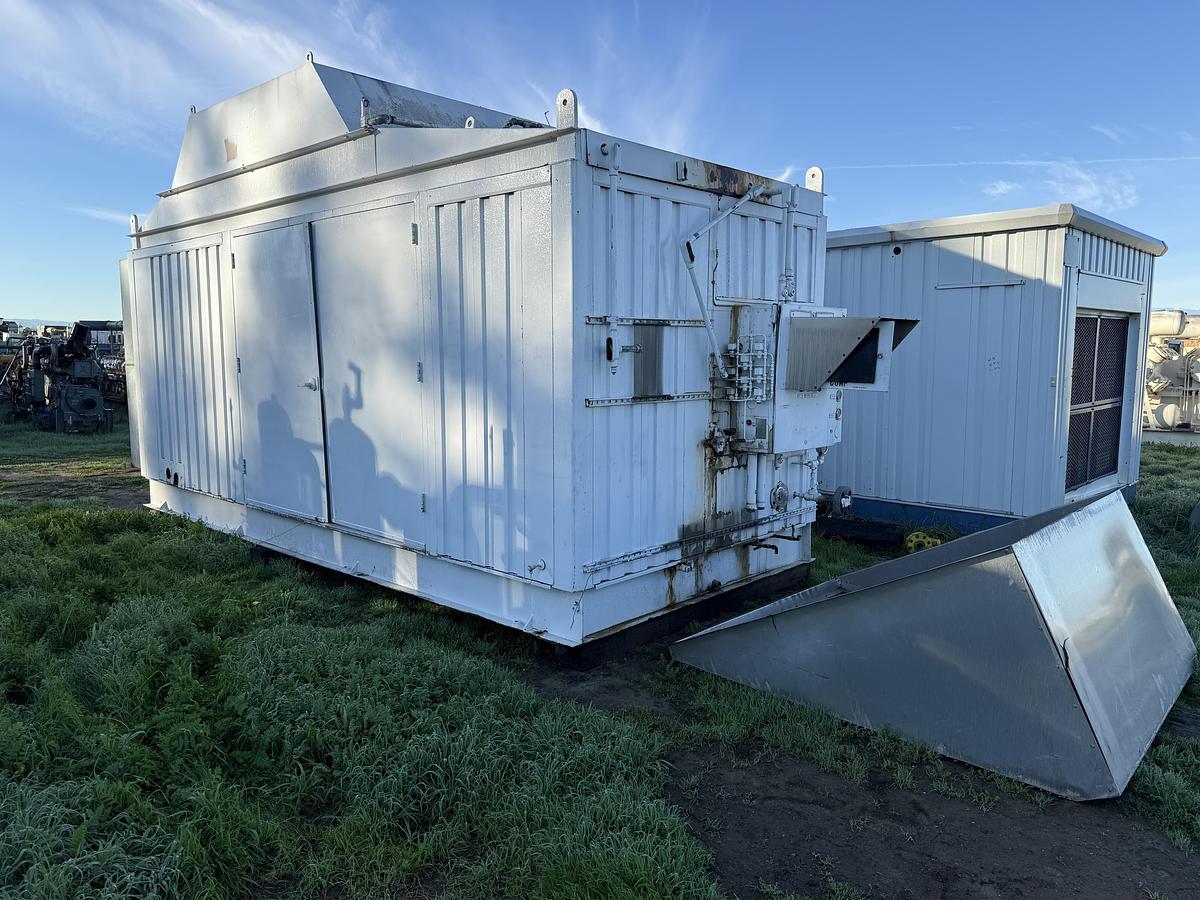

600 HP / Ariel JGA-4 SN F-21749 Four Stage CNG Compressor Package Size 6.125” x 4.125” x 3.375” x 3.375” x 1.75” x 1.75” with ACE E721 Cooler
600 HP / Ariel JGA-4 SN F-21749 Four Stage CNG Compressor Package Size 6.125” x 4.125” x 3.375” x 3.375” x 1.75” x 1.75” with ACE E721 Cooler
Description

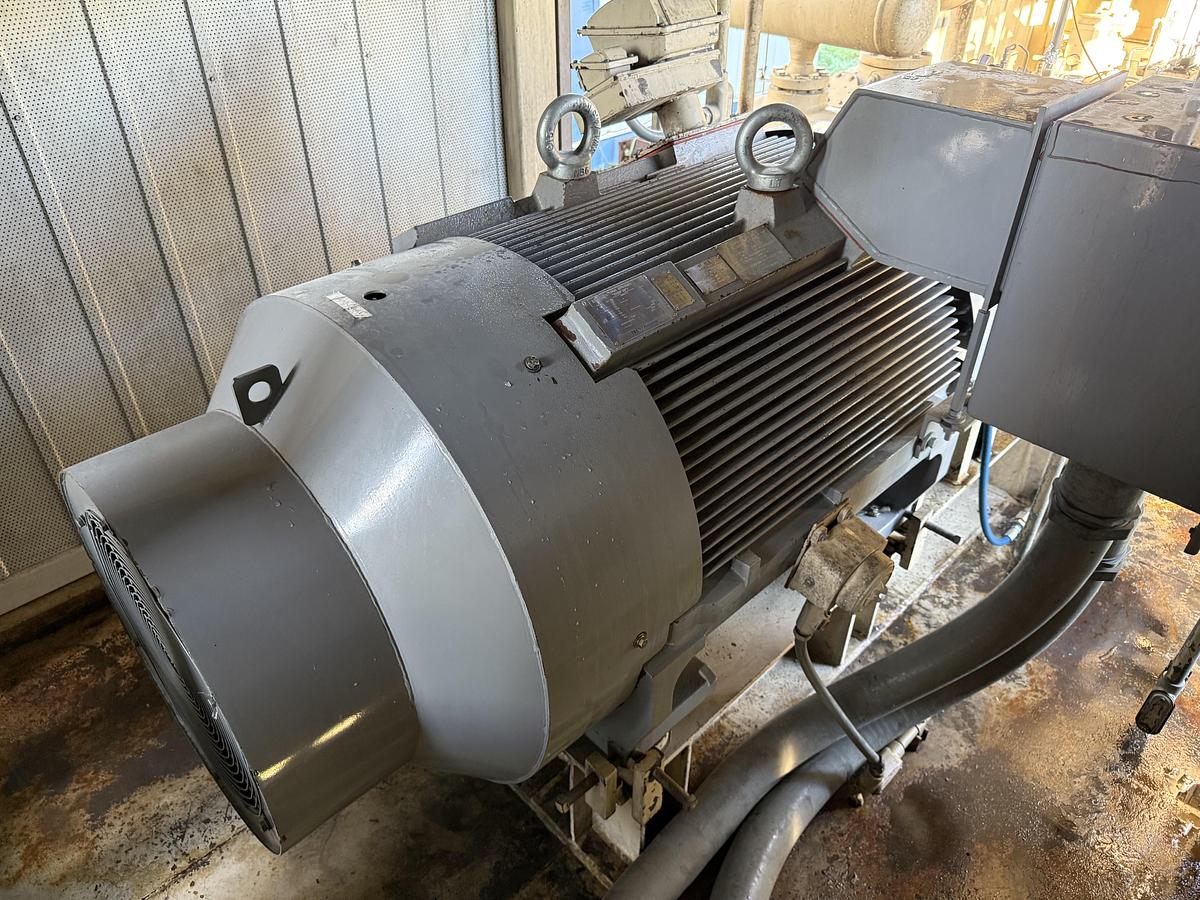

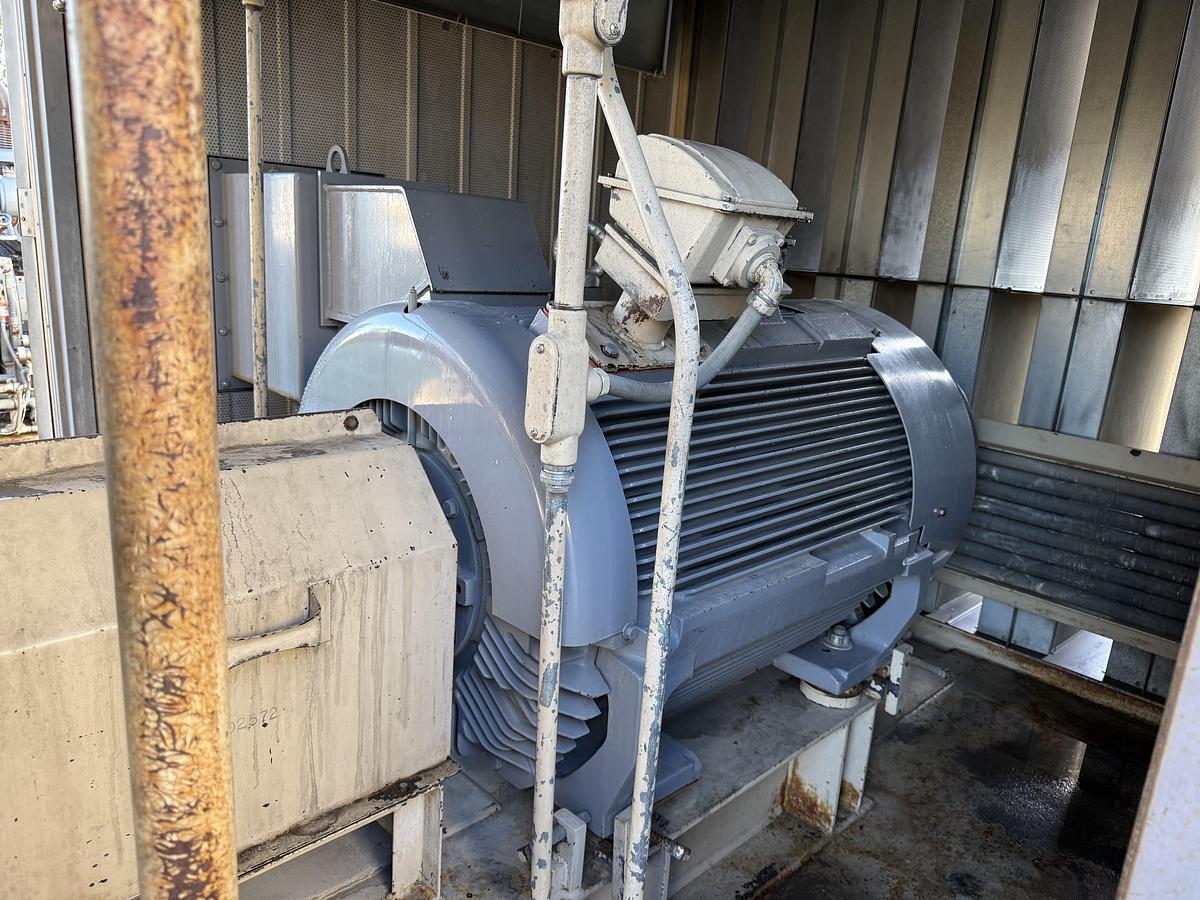

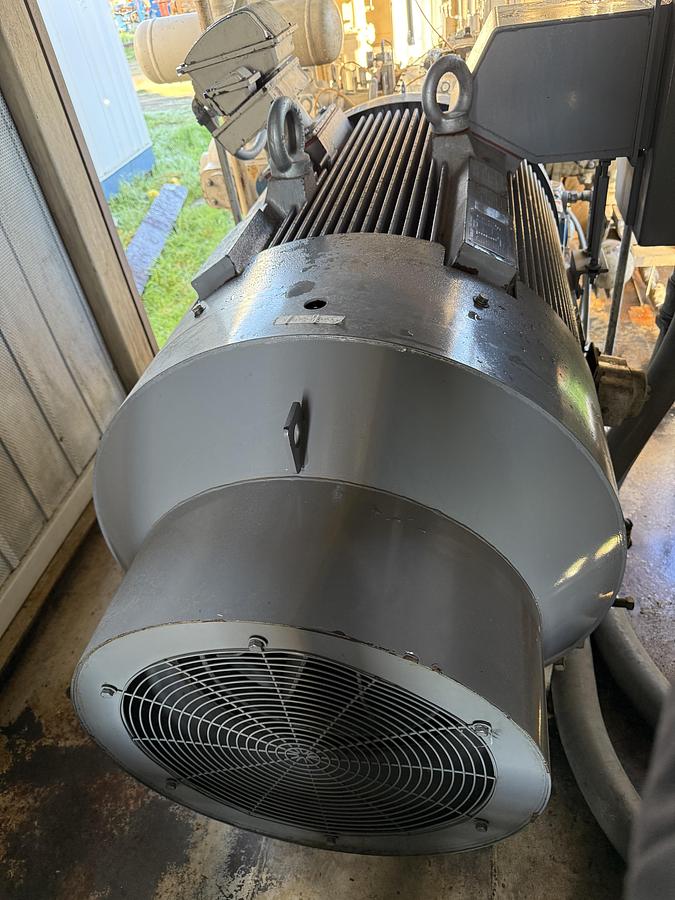

Teco Westinghouse MAX-E1 Electric Motor
HP: 600
RPM: 1785
Volts: 460
Frame: 5808B
Type: AEHE-UW
SN: XE FC19 A646T1-3

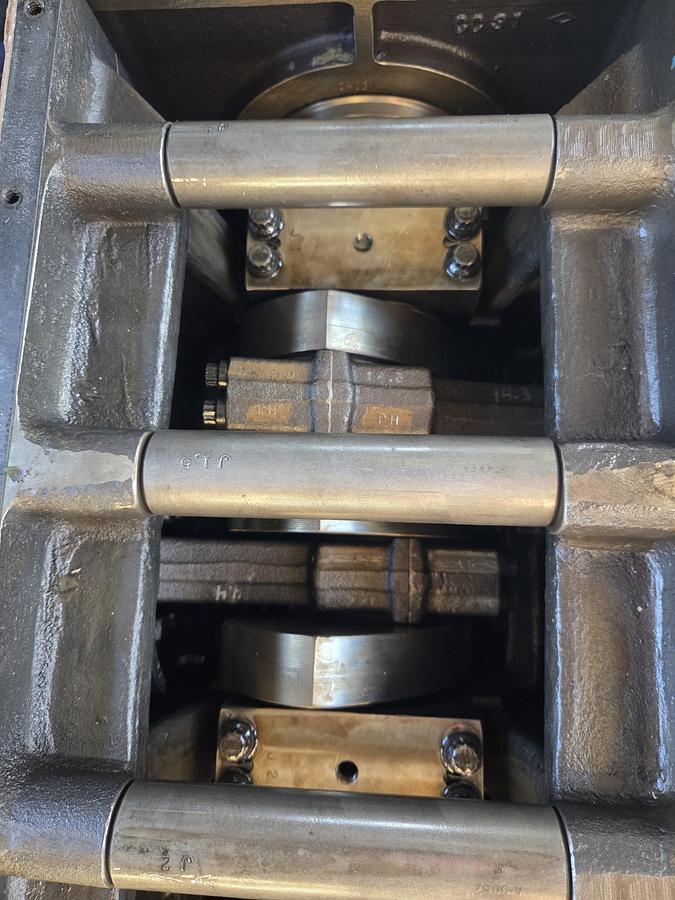

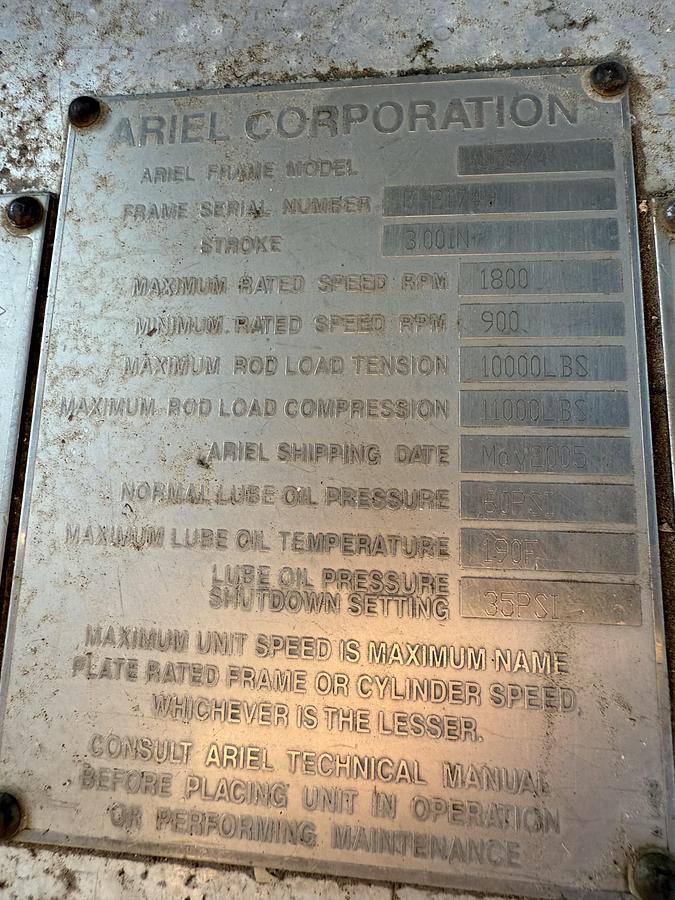

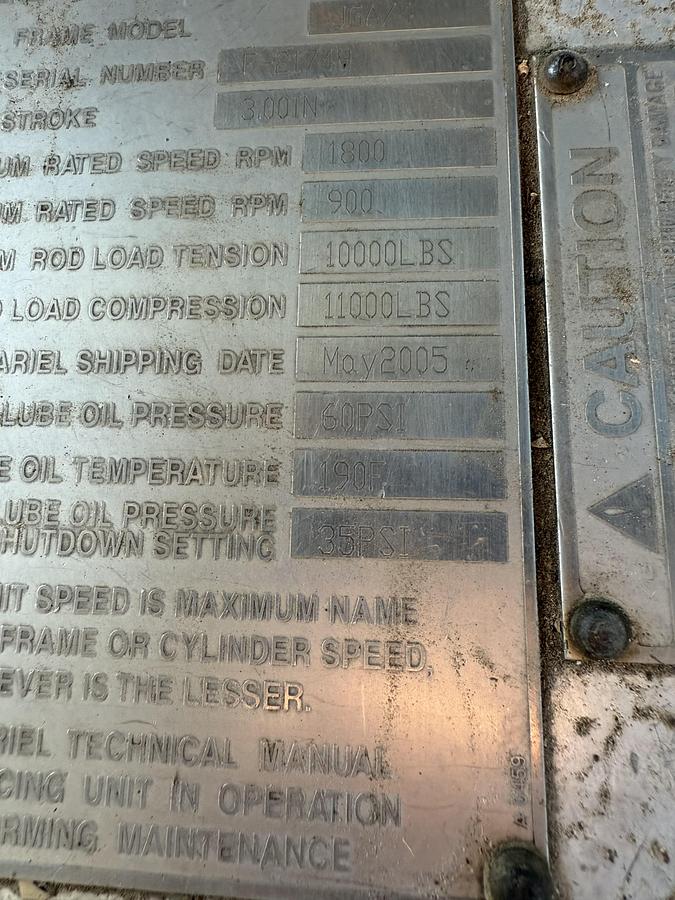

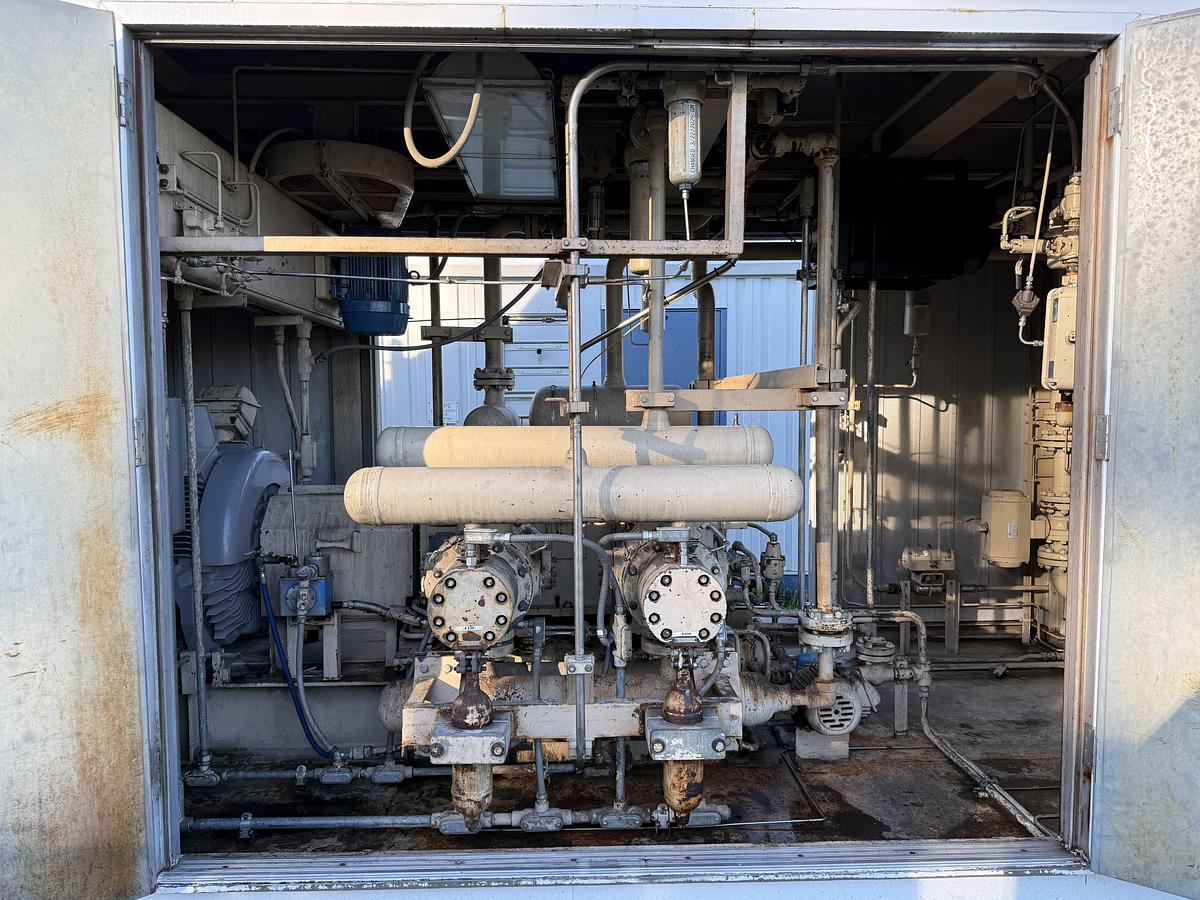

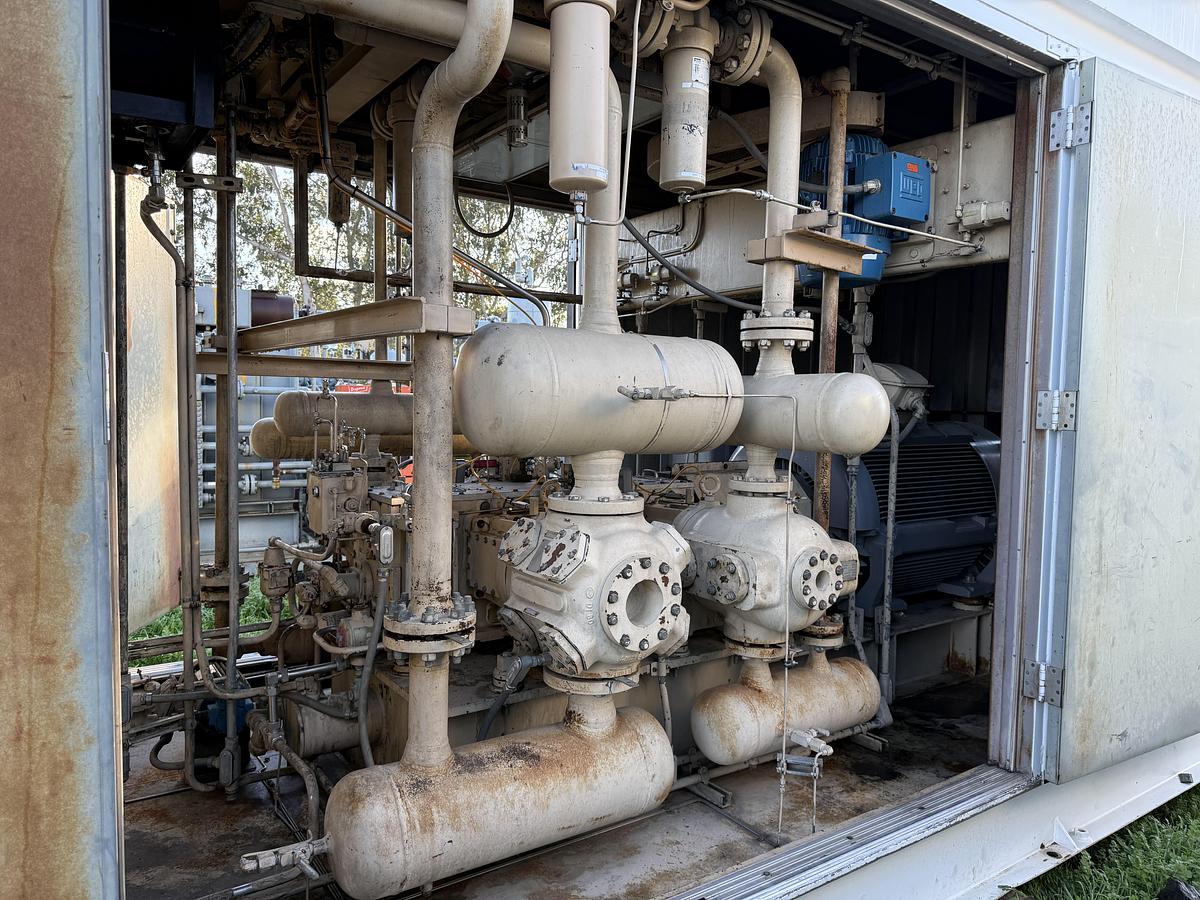

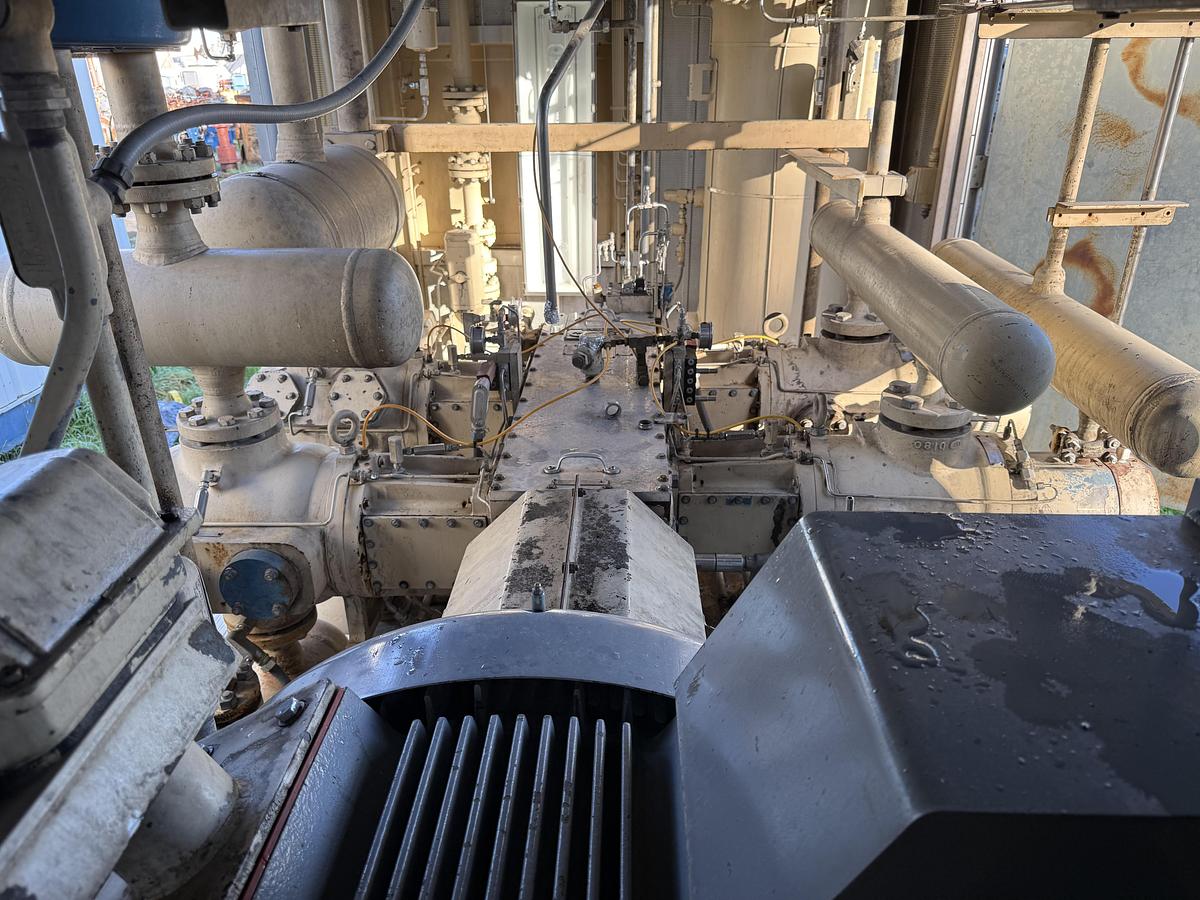

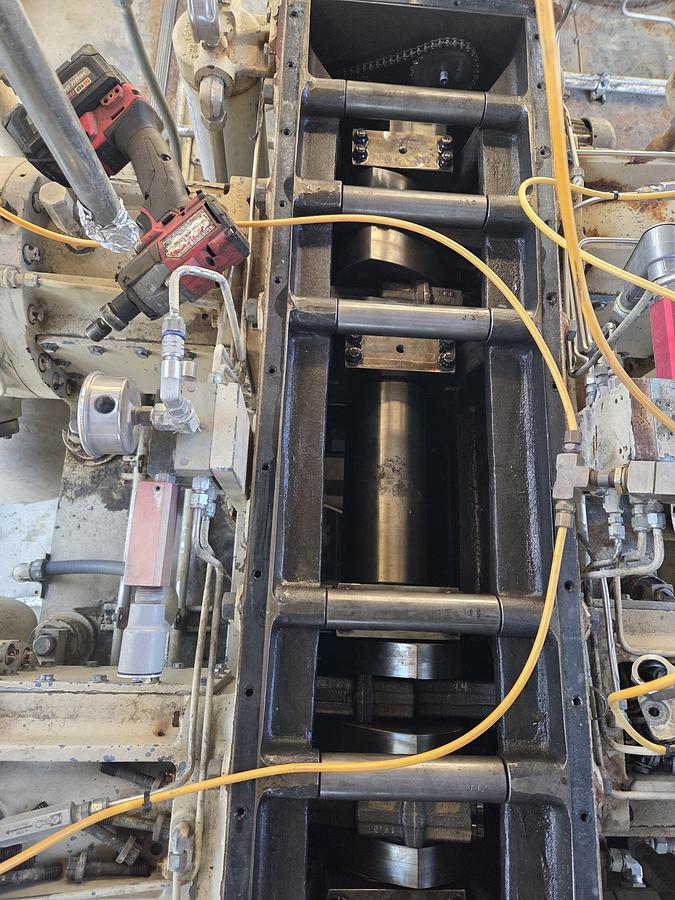

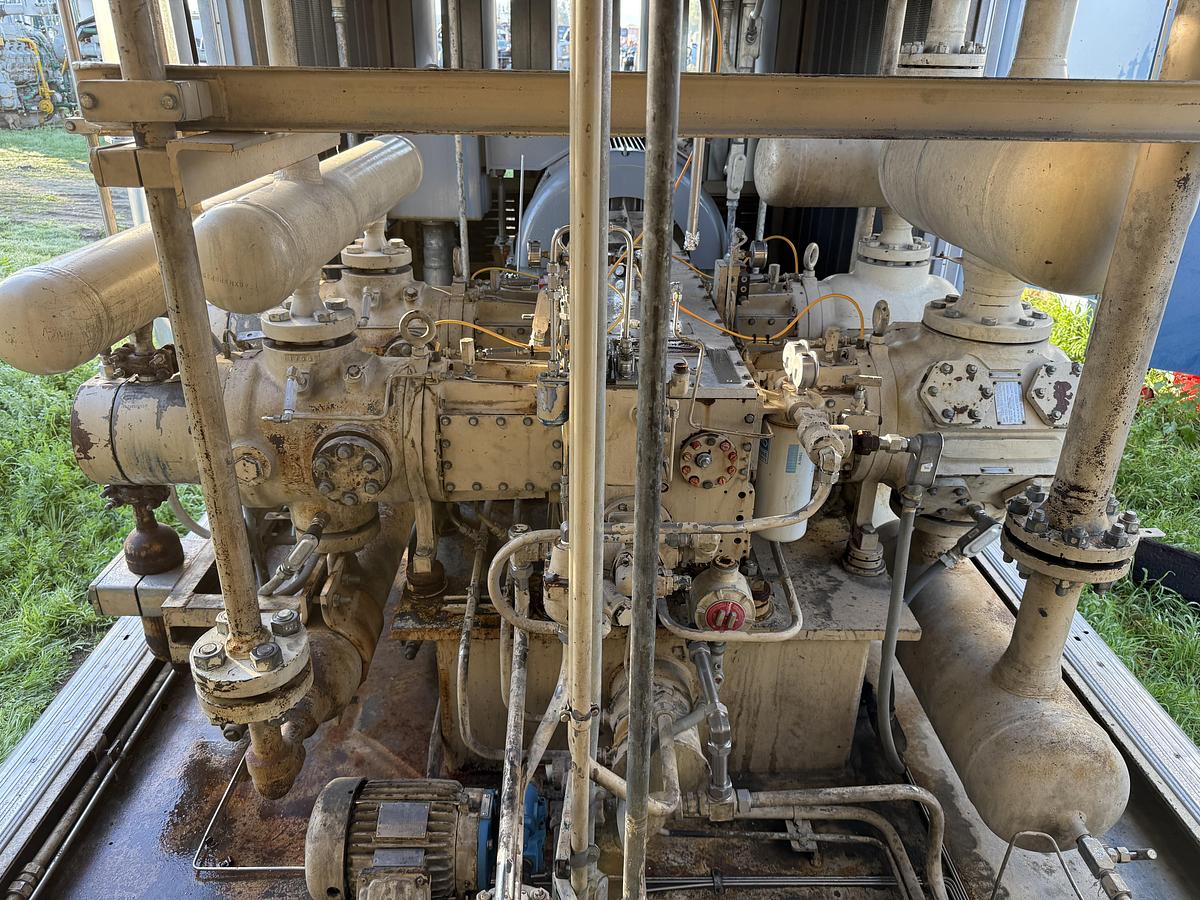

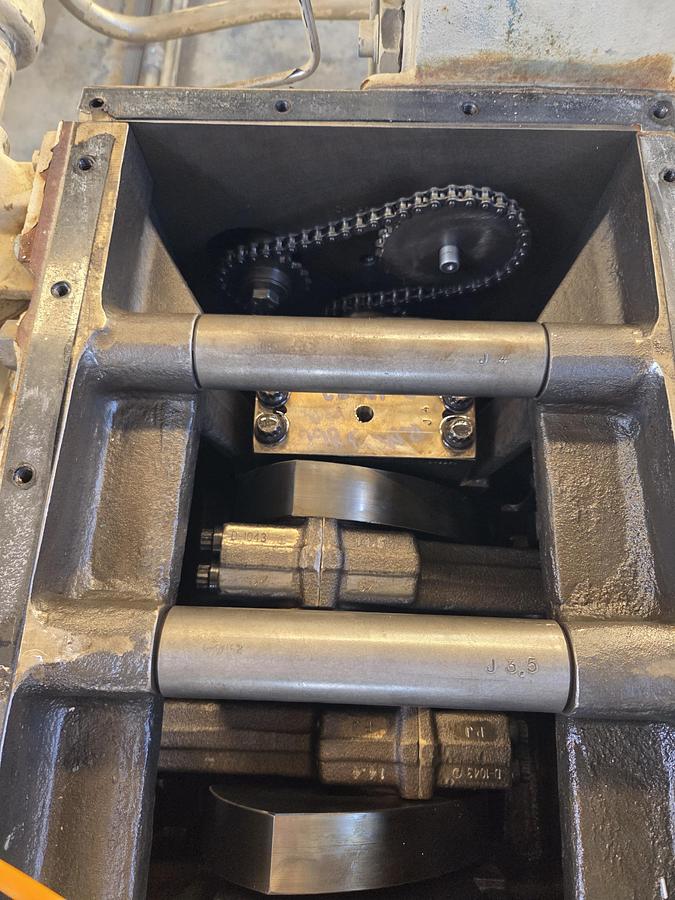

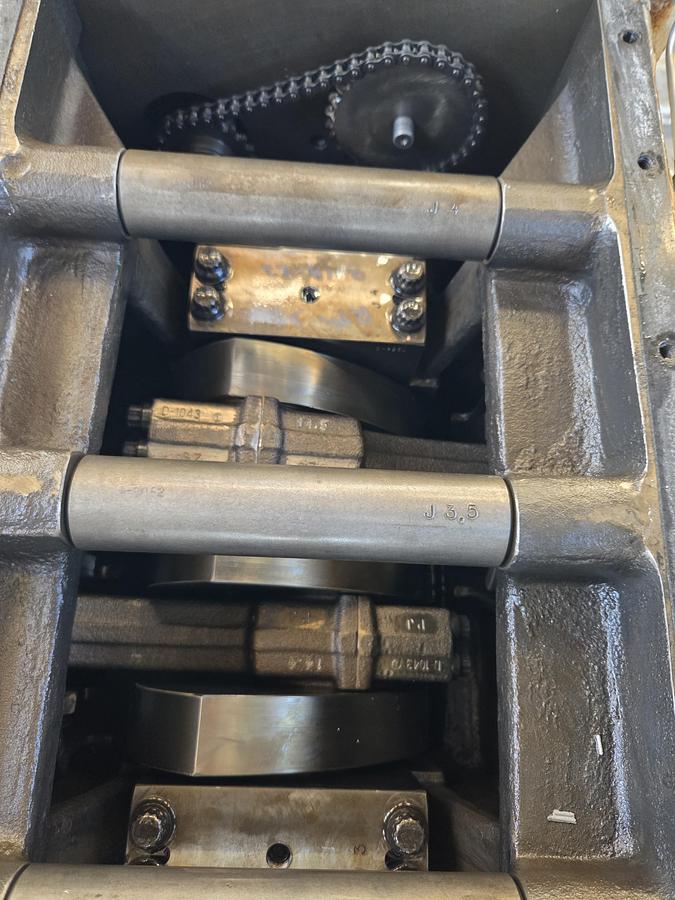

Ariel Compressor Frame
Model: JGA-4
Stroke: 3”
RPM: 1800
Rod Load: 21,000 lbs
MFG Date: May 2005
SN: F-21749

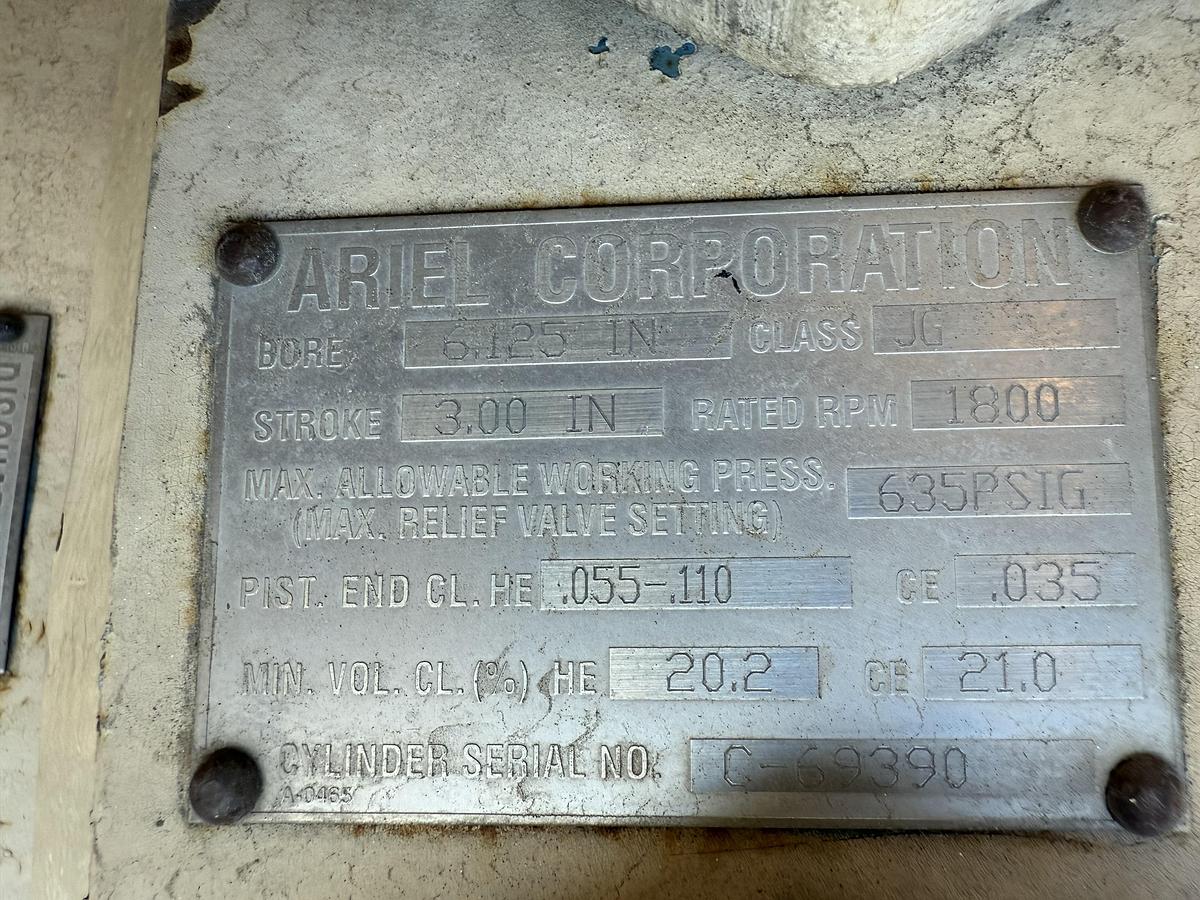

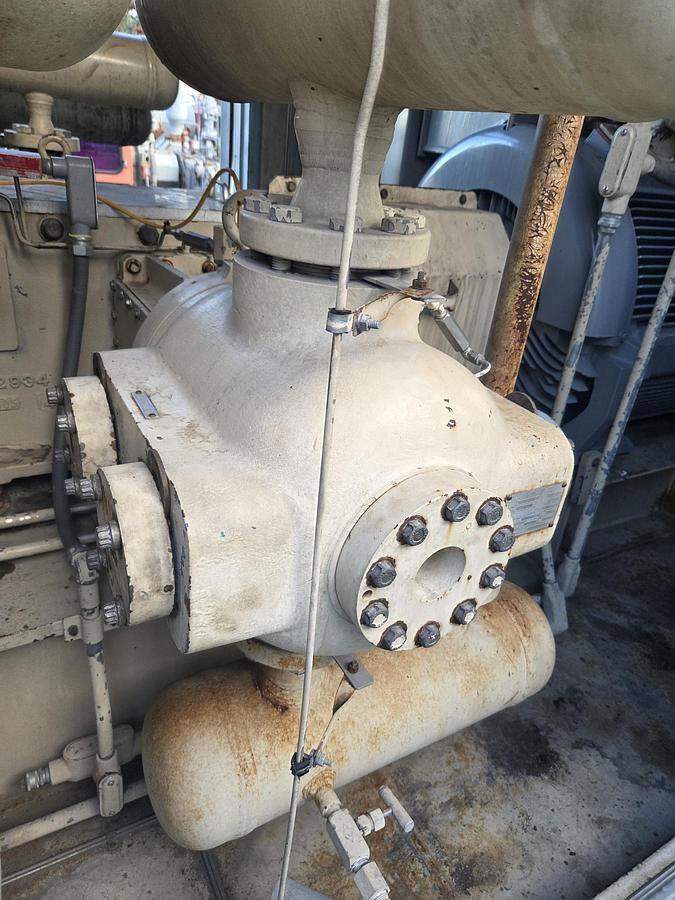

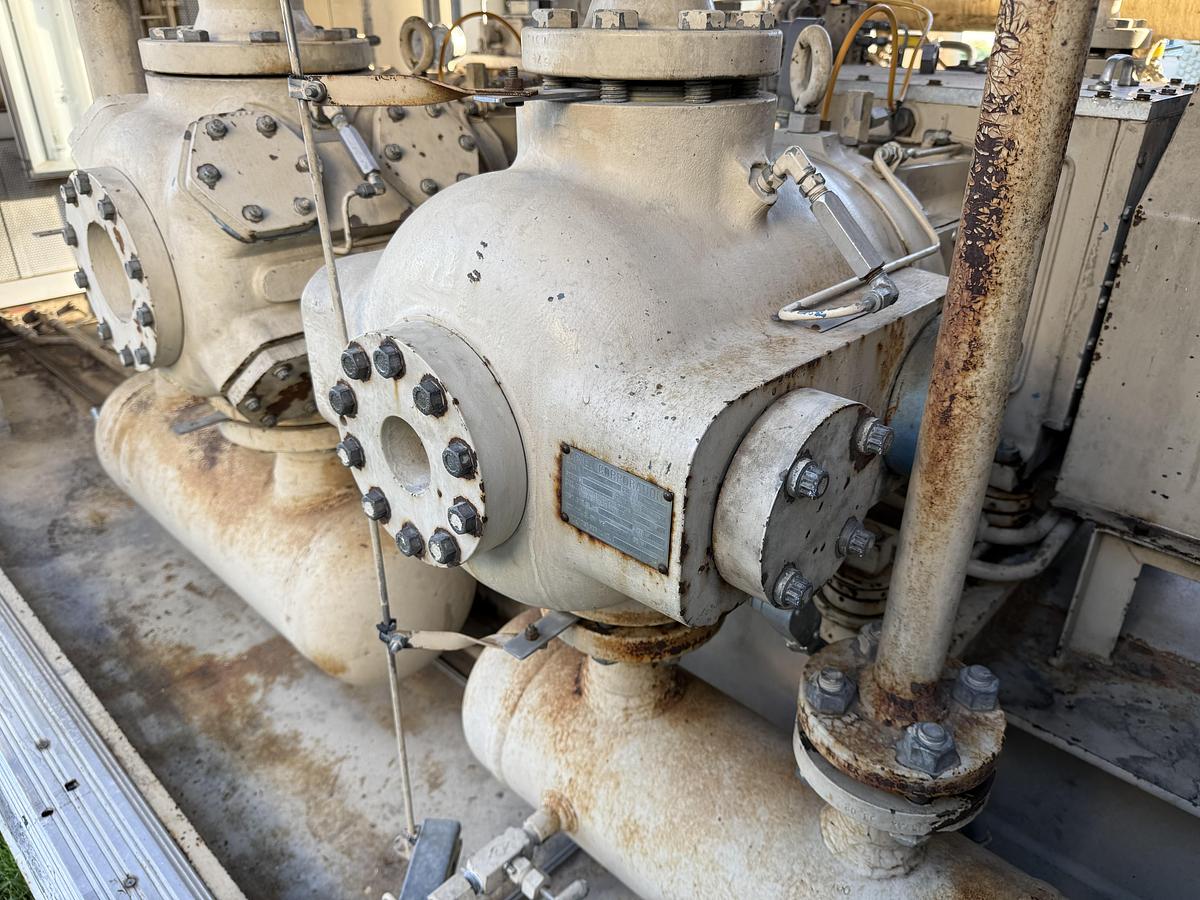

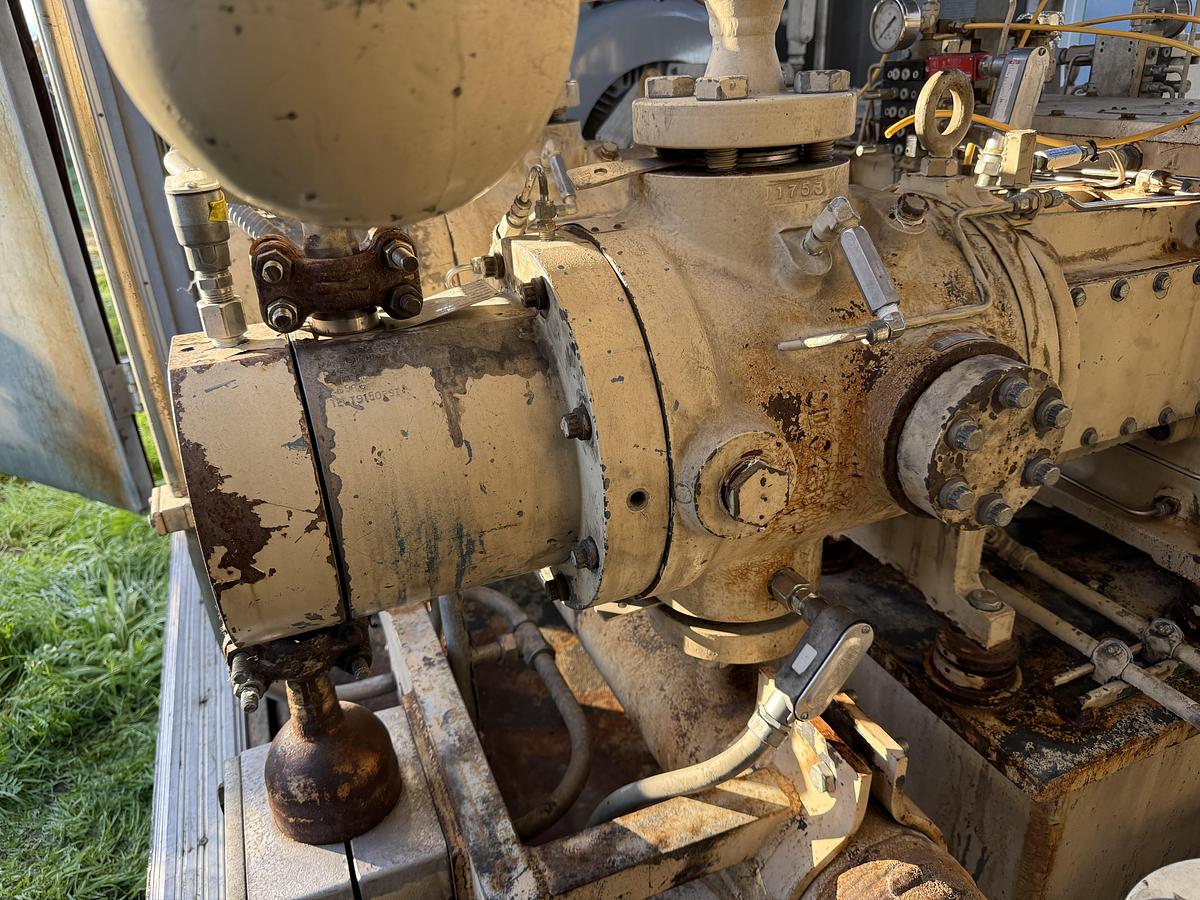

Ariel 1st stage cylinder
Bore: 6.125”
Stroke: 3”
Class: JG
MAWP: 635
SN: C-69390

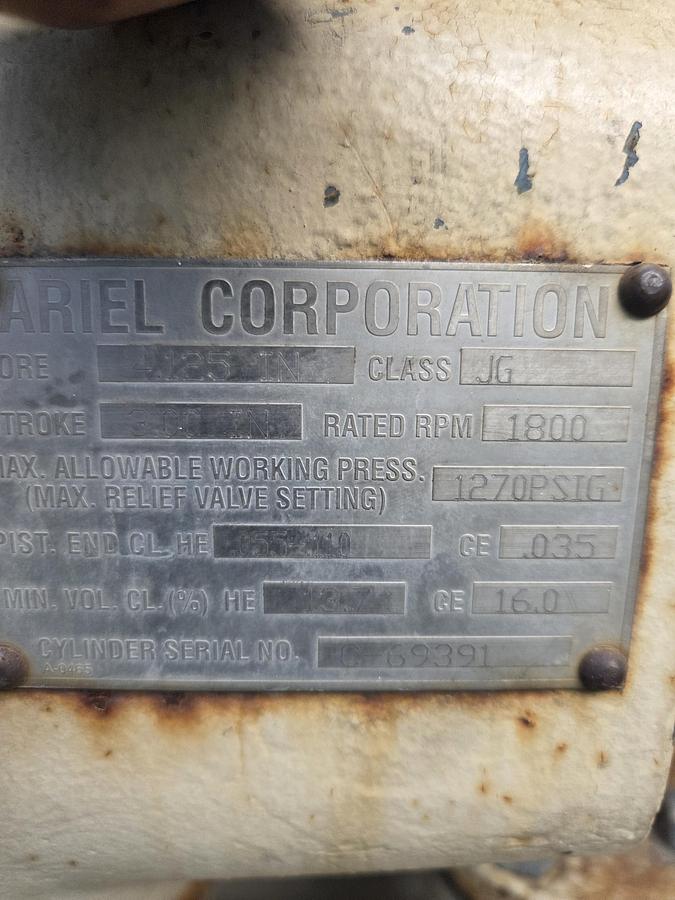

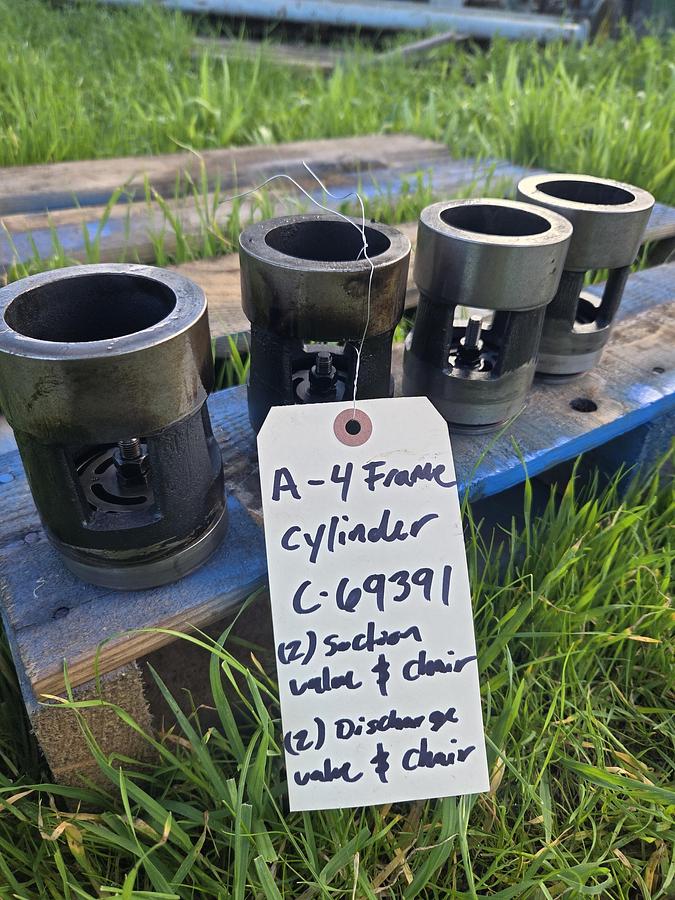

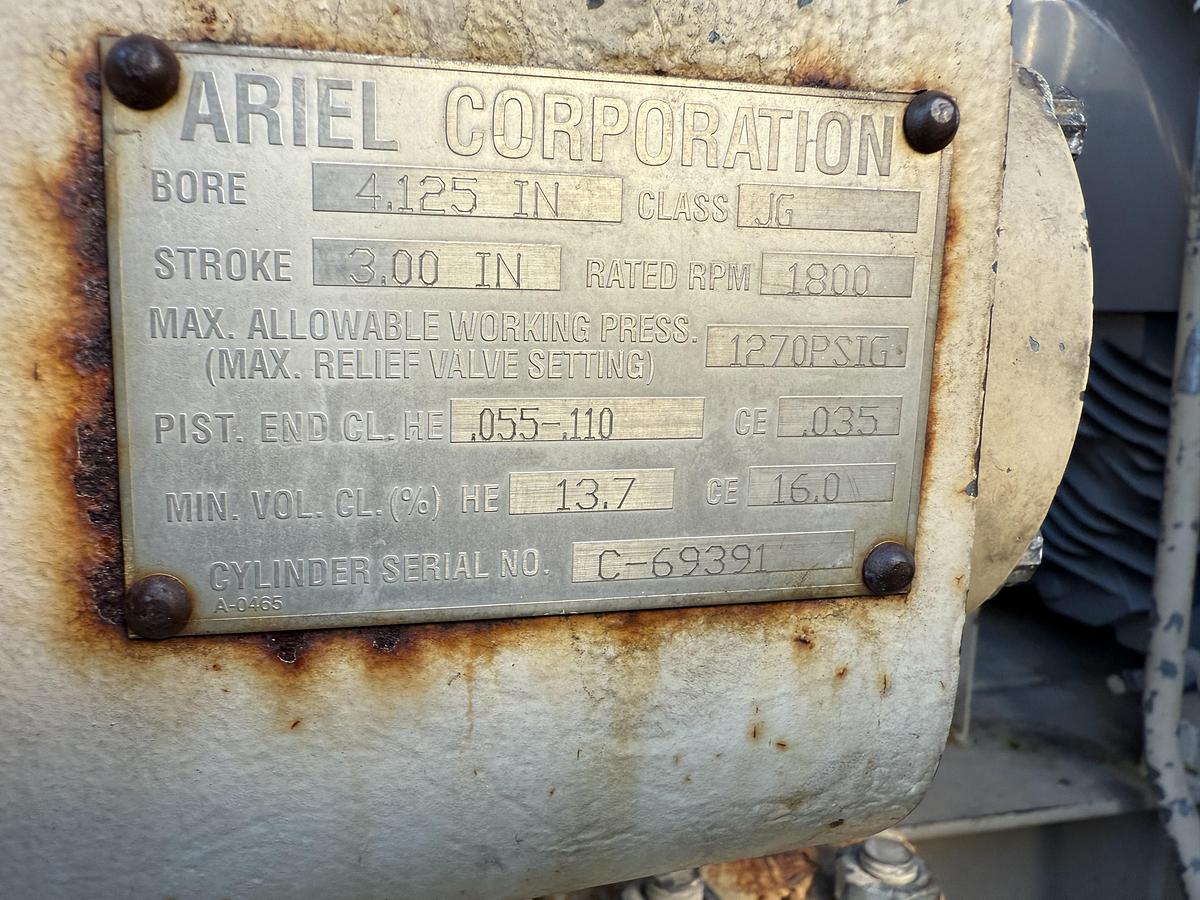

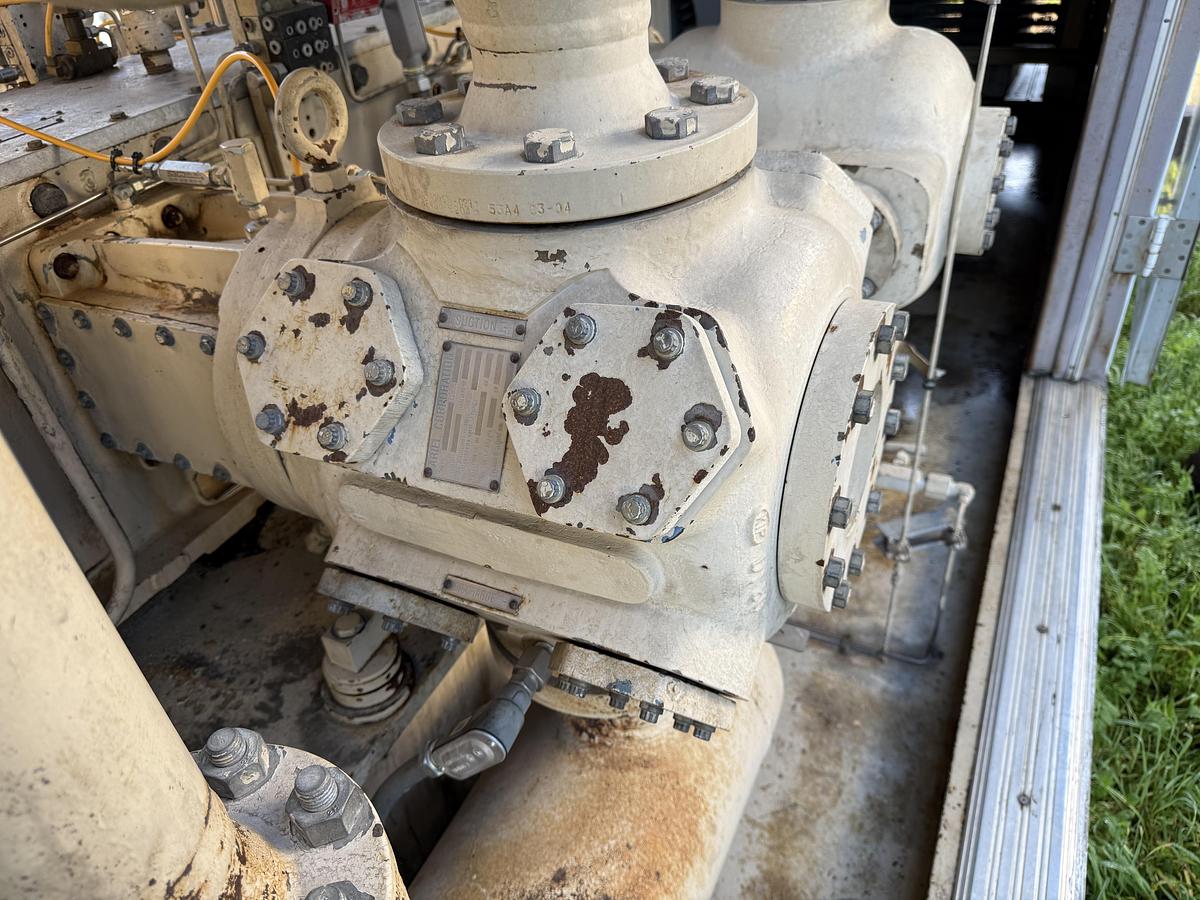

Ariel 2nd stage cylinder
Bore: 4.125”
Stroke: 3”
Class: JG
MAWP: 1270
SN: C-69391

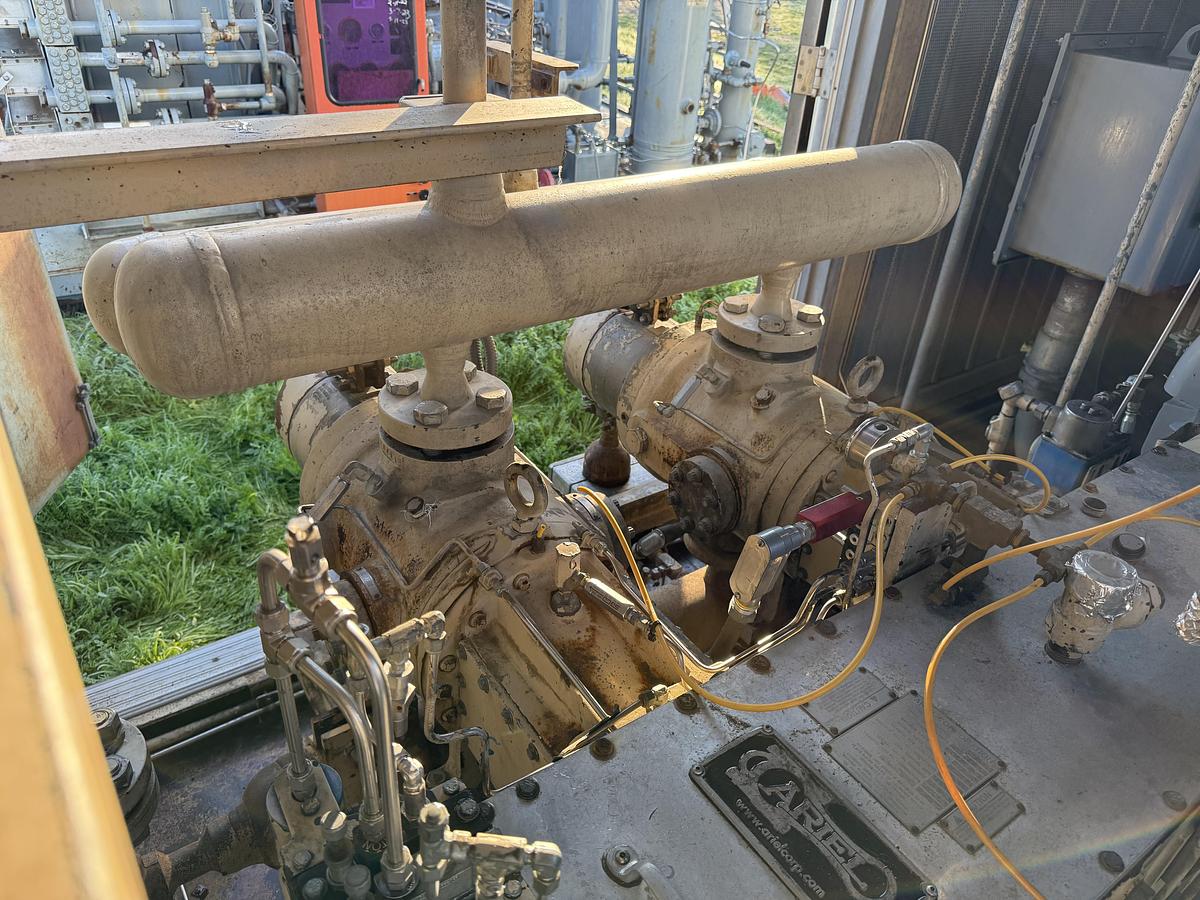

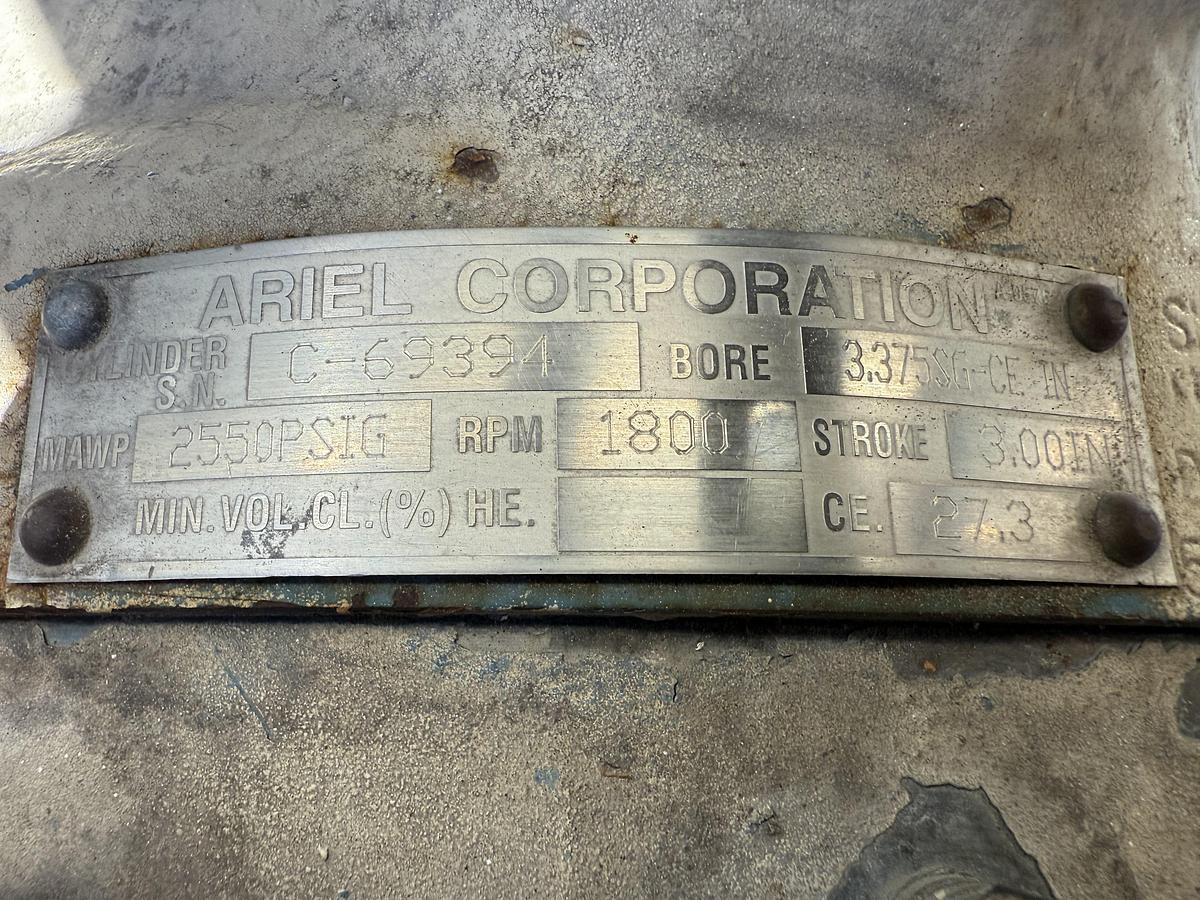

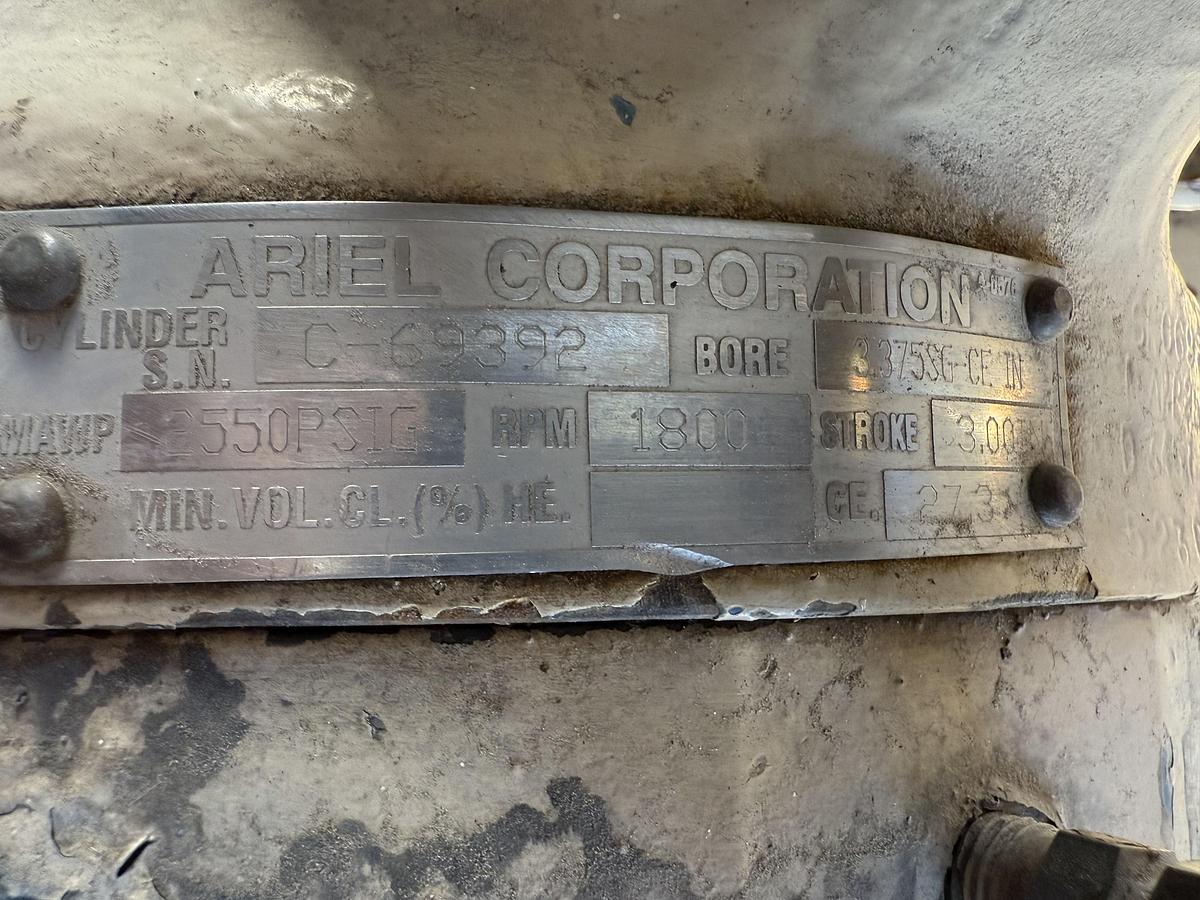

Ariel 3rd stage cylinders (two tandem single acting cylinders tied together with common pulsation bottles)
Bore: 3.375”
Stroke: 3”
Class: SG-CE
MAWP: 2550
SN: C-69392
SN: C-69394

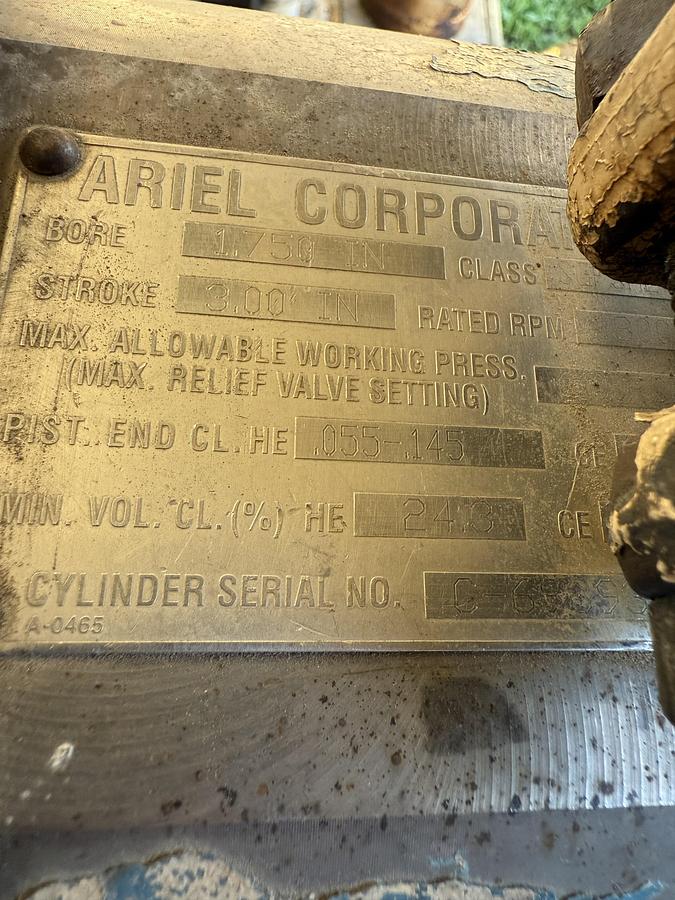

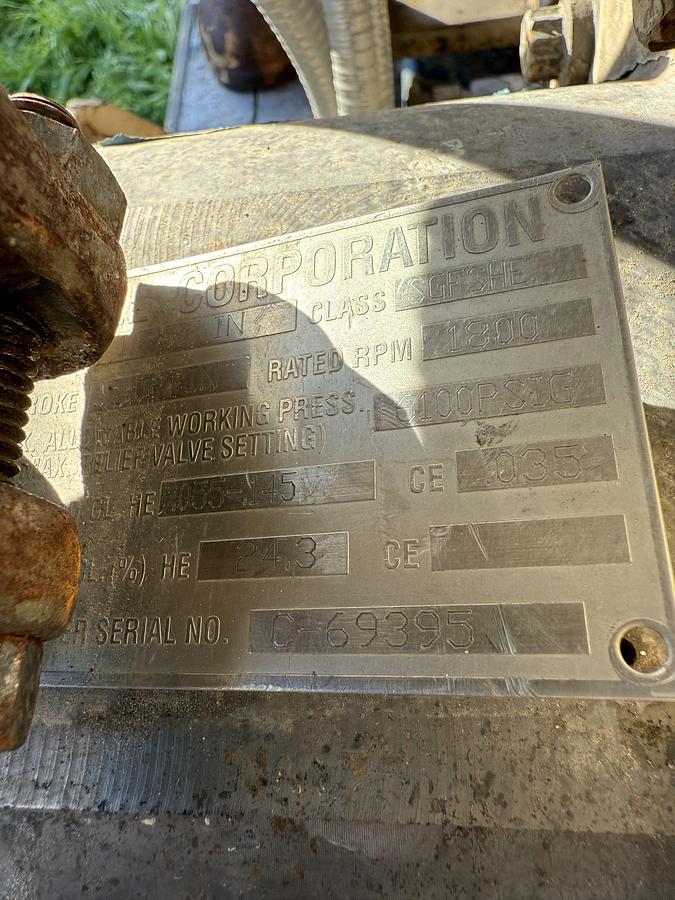

Ariel 4th stage cylinders (two tandem single acting cylinders tied together with common pulsation bottles)
Bore: 1.75”
Stroke: 3”
Class: SGFSHE
MAWP: 6100
SN: C-69393
SN: C-69395

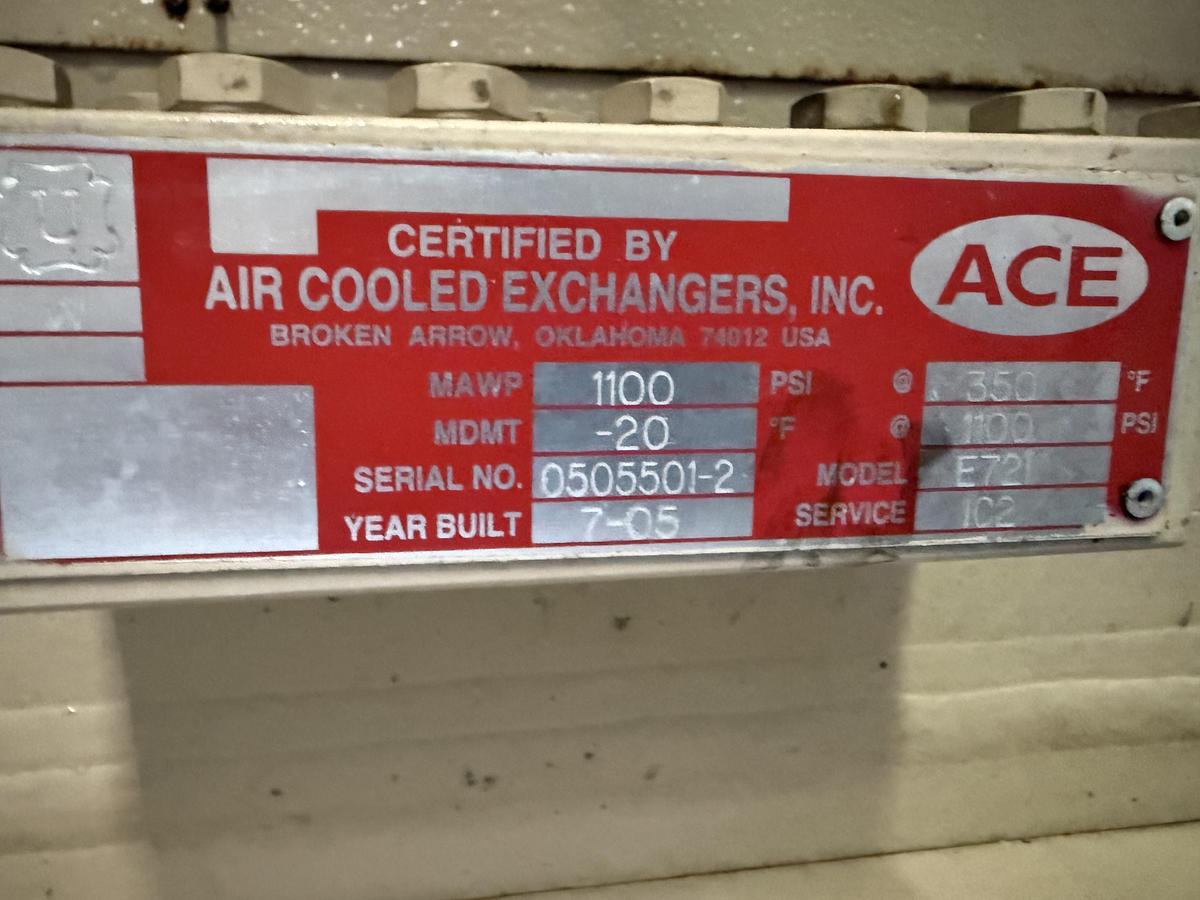

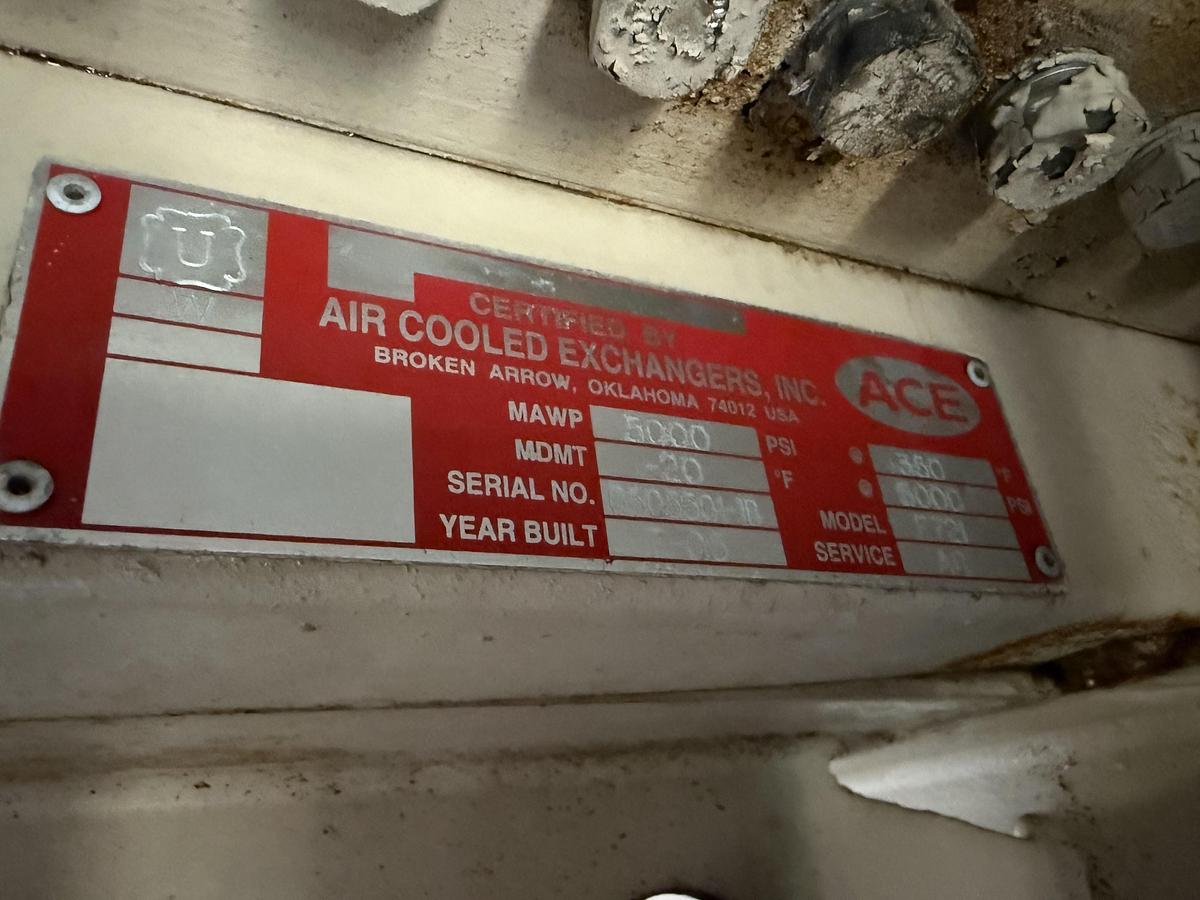

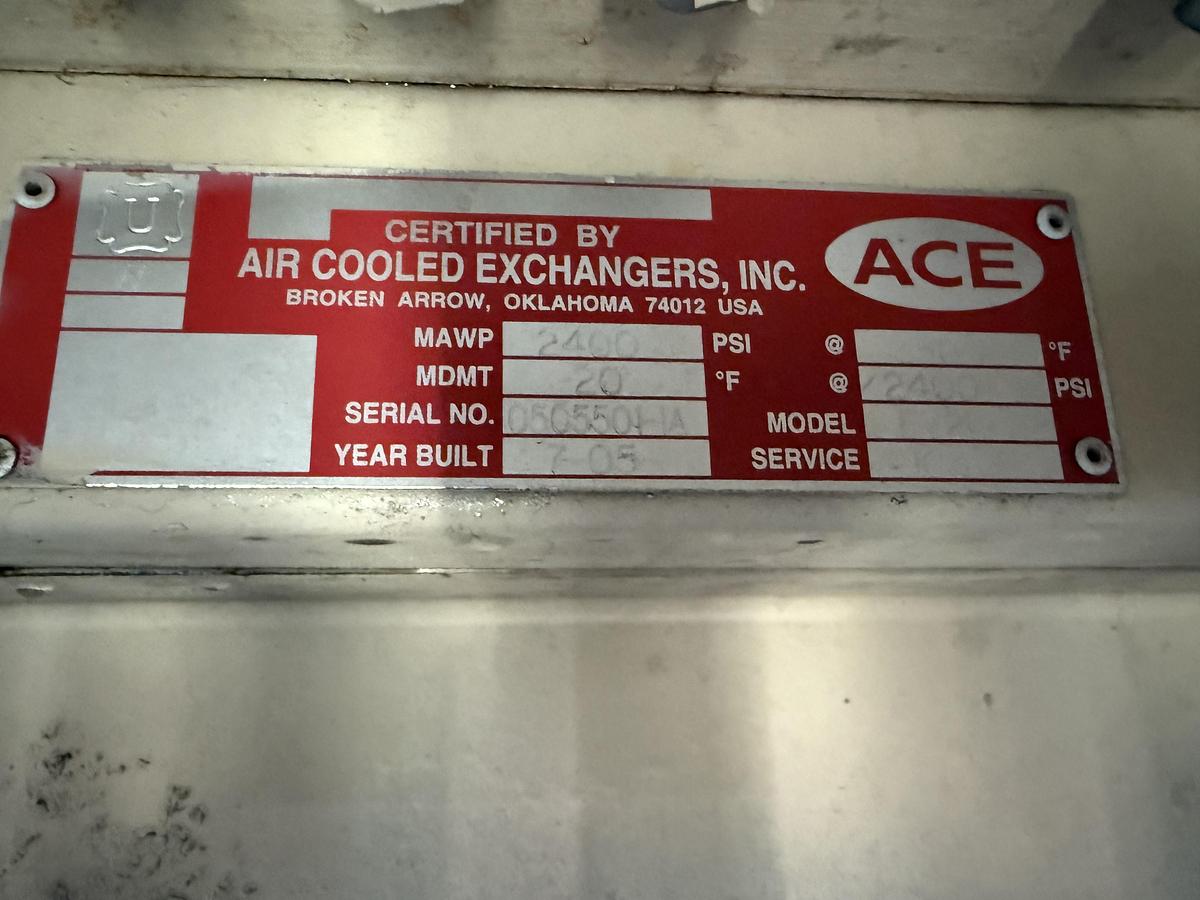

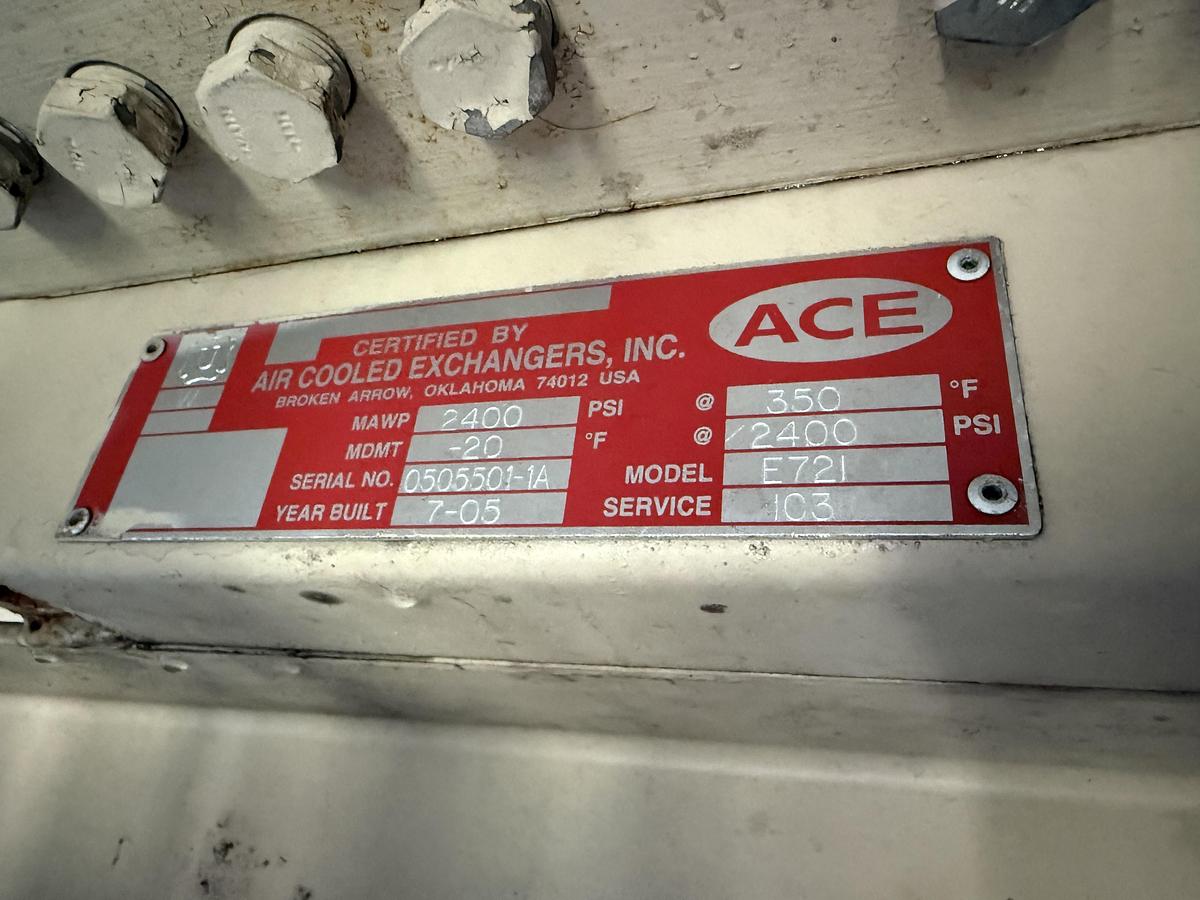

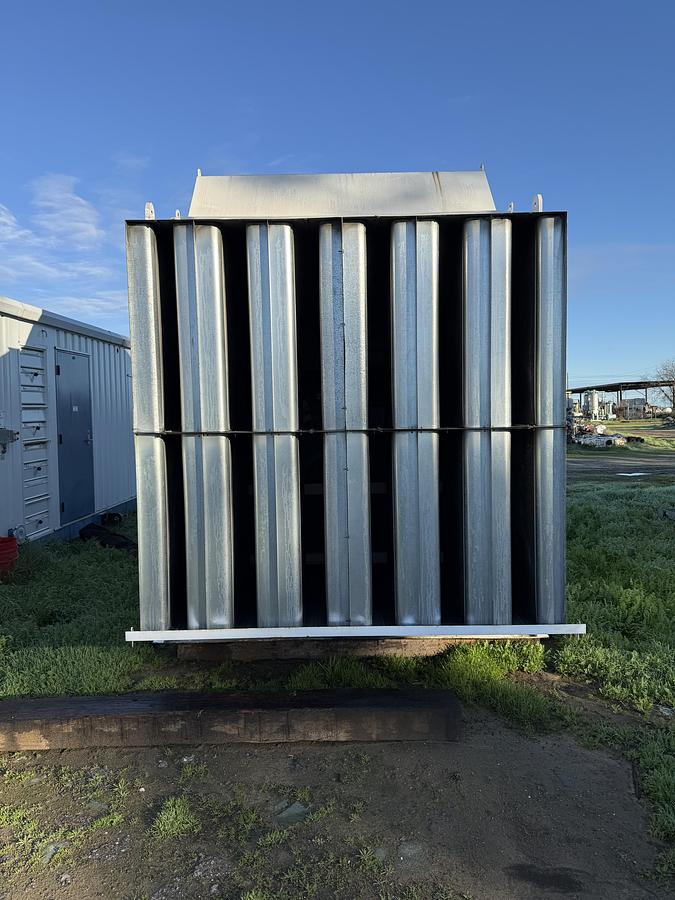

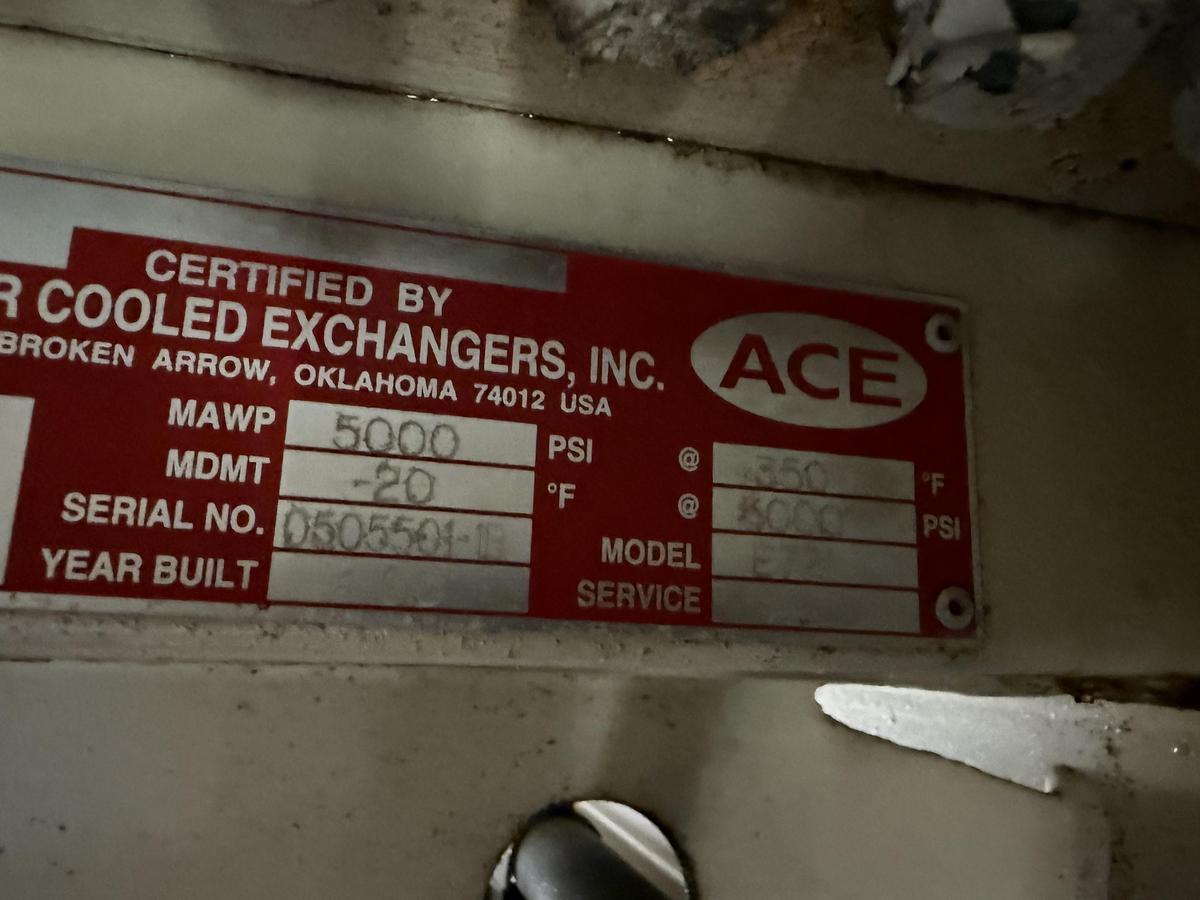

ACE Gas Cooler
Model: E721
Gas Sections: 645, 1100, 2400, 5000 psi
SN: 0505501-3
Specifications
| Manufacturer | Ariel |
| Model | JGA-4 |
| Year | 2005 |
| Condition | Used |
| Serial Number | F-21749 |
| Stock Number | CS-0022126 |
| # of stages | 4 |
| HP | 600 |
| Cylinder Sizes | 6.125” x 4.125” x 3.375” x 3.375” x 1.75” x 1.75” |
| Frame Model | JGA-4 |
| Stroke | 3" |
| Frame SN | F-21749 |
| Cooler MFG | ACE |
| Cooler Model | E721 |
| Cooler SN / Job Number | 0505501 |
| Driver MFG | Teco Westinghouse |
| Driver Model | MAX E-1 |
| Driver Serial Number | XE FC19 A646T1-3 |
| Driver RPM | 1785 |
