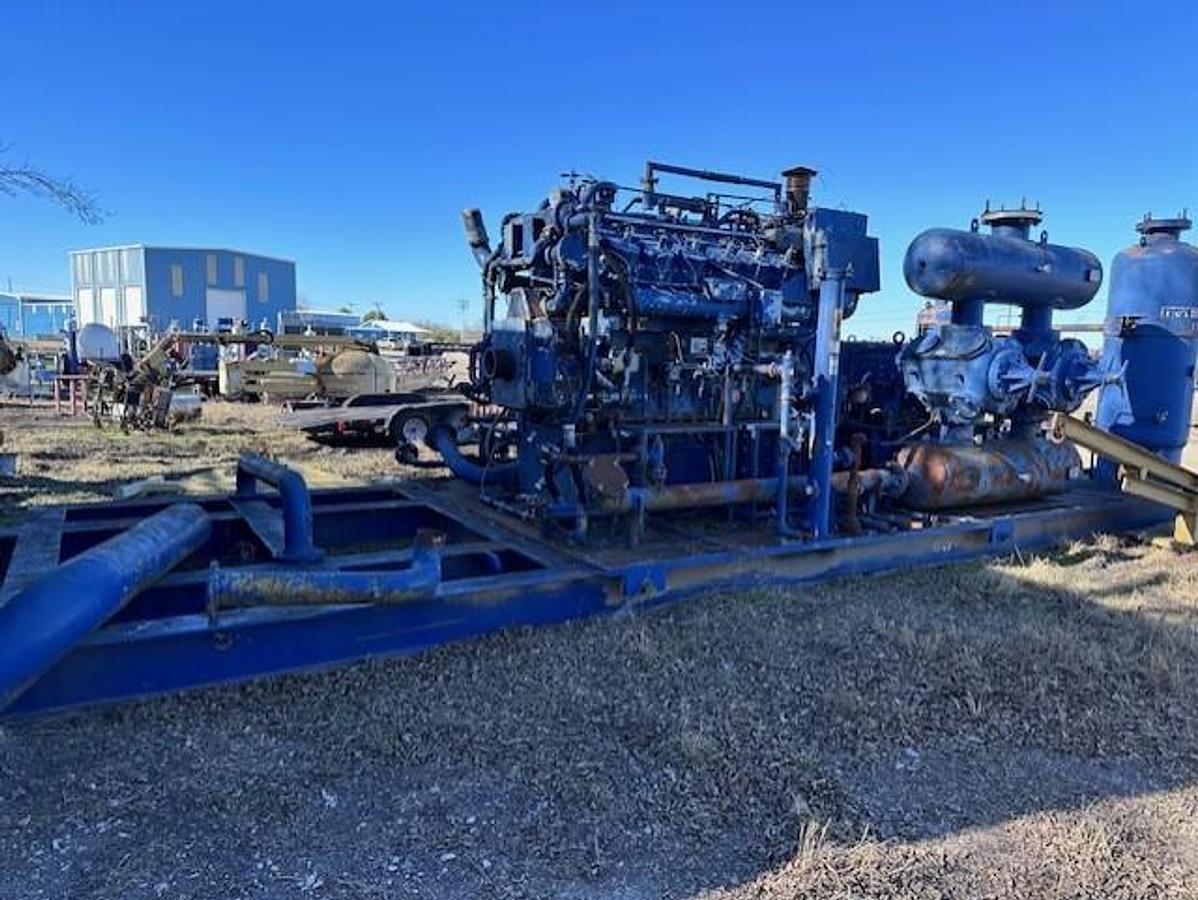

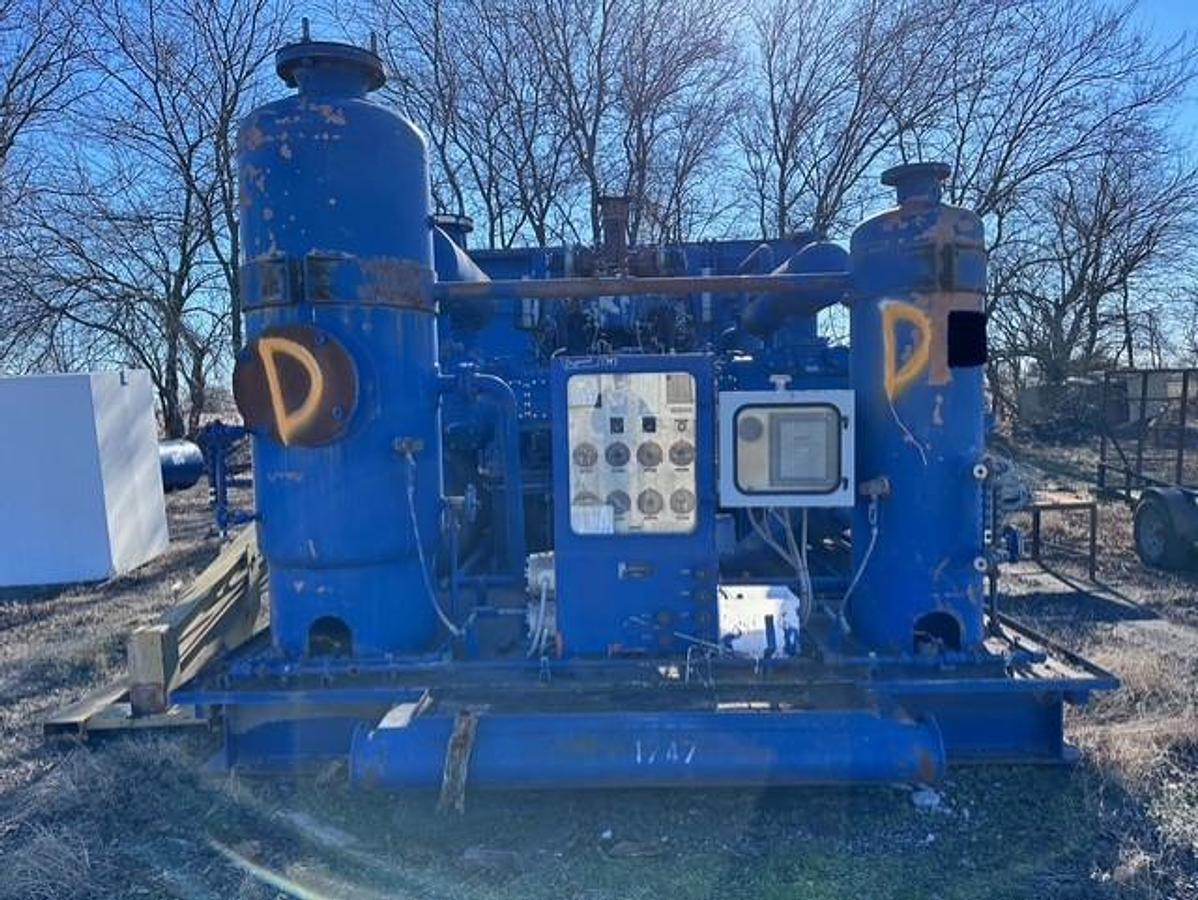

Waukesha L5794GSI / Ariel JGK-4 Three Stage Compressor Package Size 14.125” x 14.125” x 11” x 6.25” with ACE 156 Cooler
or
Call 661-257-8000
Description

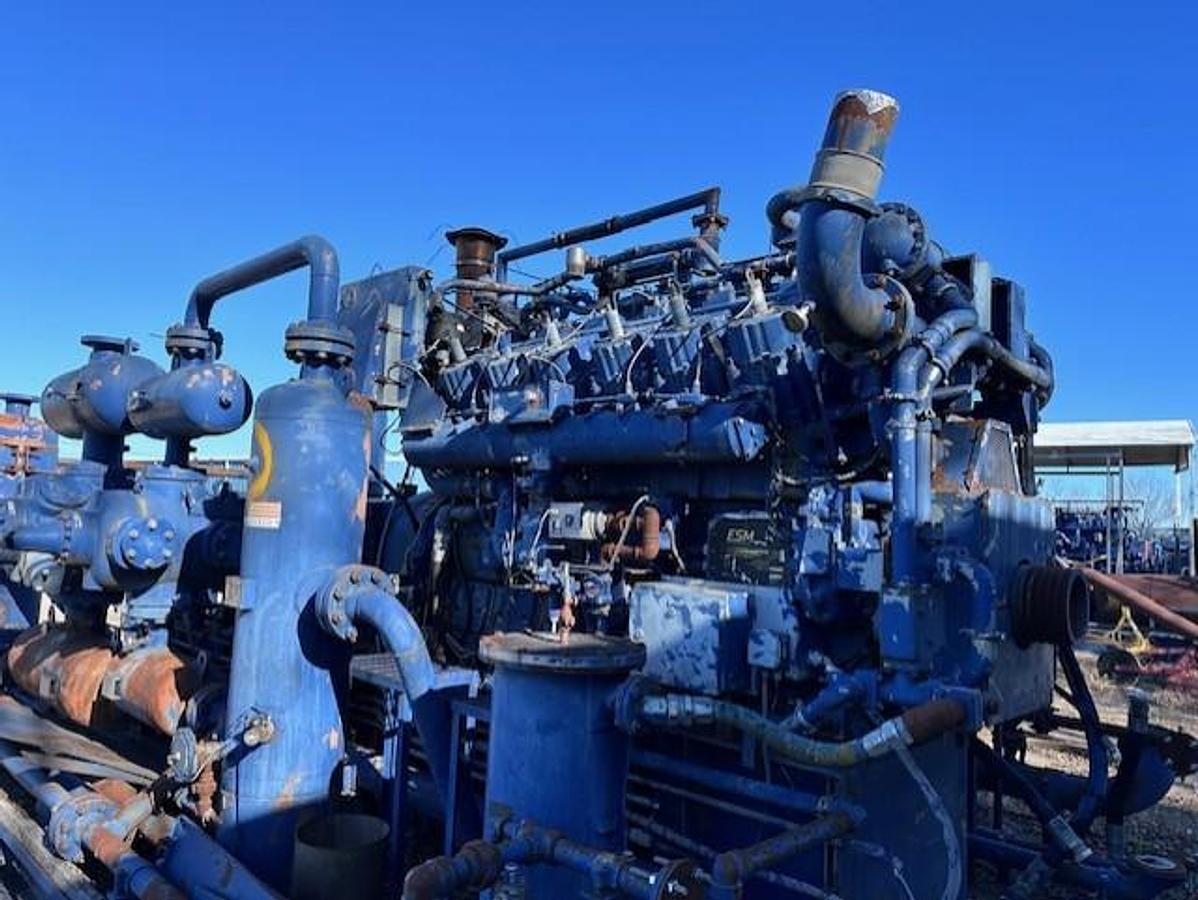

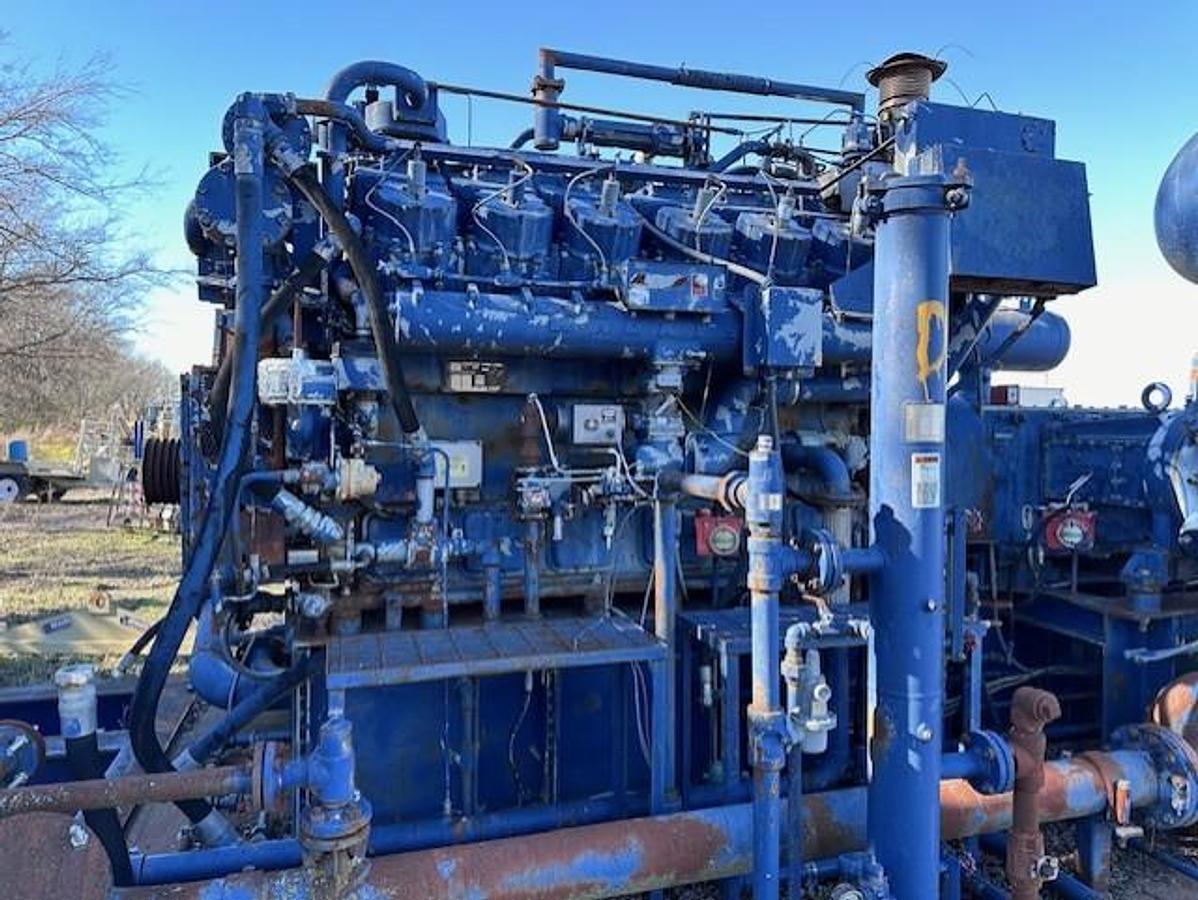

Waukesha Engine
Model: L5794LT ESM
Comp Ratio: 10.2 : 1
Date: FEB 2006
RPM: 1200
SN: C-16576/1

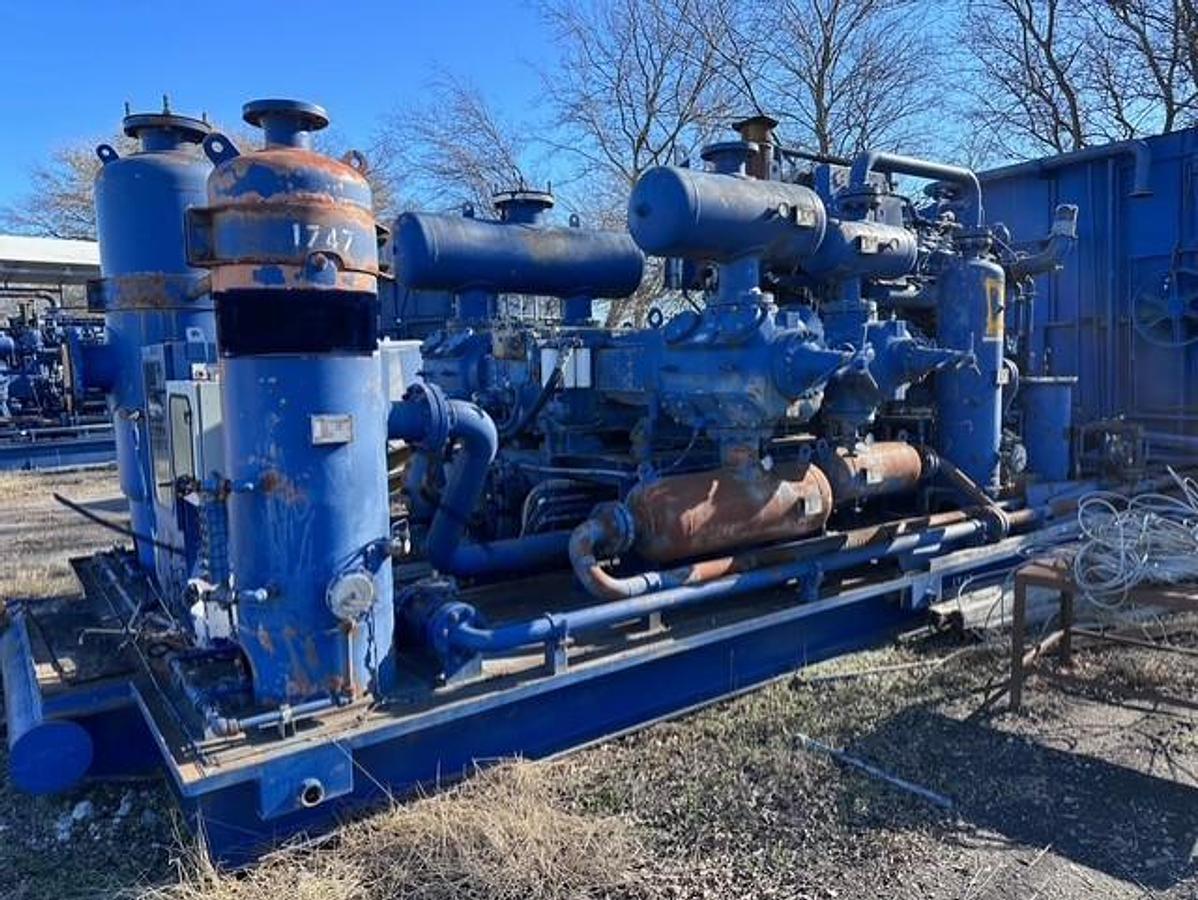

Ariel Compressor Frame
Model: JGK-4
Stroke: 5.5"
Max RPM: 1200
Min RPM: 600
RL Tension: 37,000
RL Compression: 40,000
MFG Date: January 2006
SN: F-22260
Ariel Cylinders 1st Stage
Bore: 14.125"
Stroke: 5.5"
Class: K
RPM: 1200
MAWP: 635 PSIG
SN: C-76254
SN: C-76256
Ariel Cylinder 2nd Stage
Bore: 11"
Stroke: 5.5"
Class: K
RPM: 1200
MAWP: 845 PSIG
SN: C-76255
Ariel Cylinder 3rd Stage
Bore: 6.25"
Stroke: 5.5"
Class: K
RPM: 1200
MAWP: 2050 PSIG
SN: C-76253

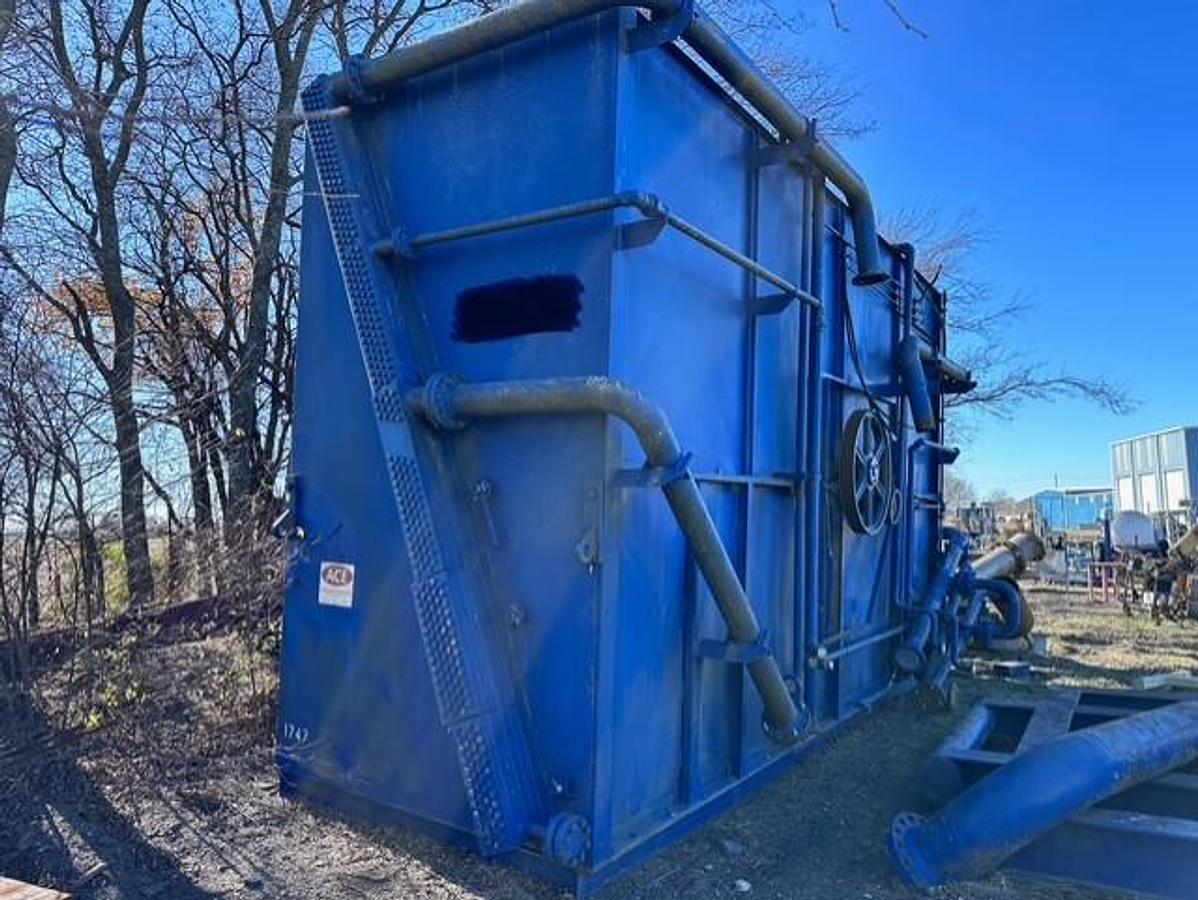

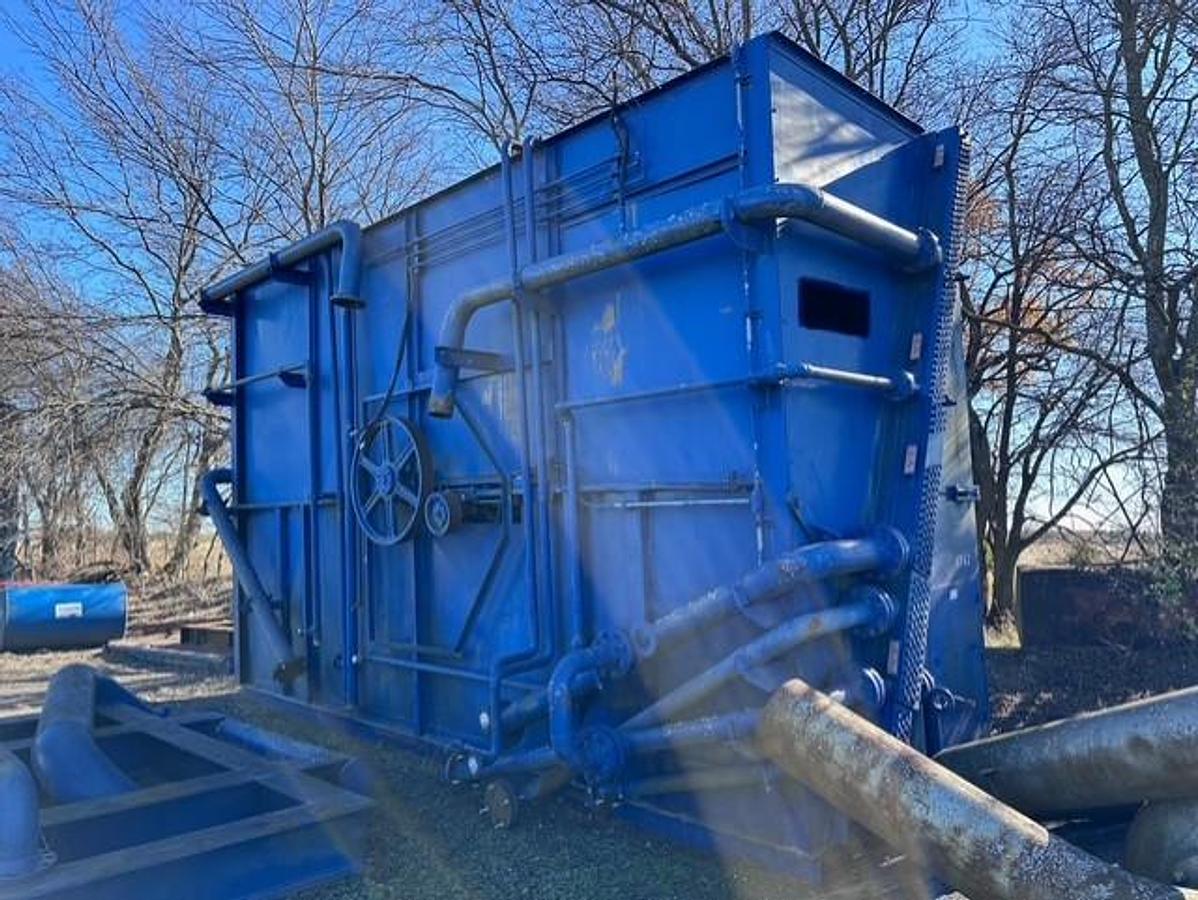

ACE Cooler
Model: A156
MAWP: 150, 645, 1292, 1440 psi @ 350 Deg F
MDMT: -20 Deg F @ 1440 psi
Year: 01/06
SN: 0536402
Specifications
| Manufacturer | Ariel |
| Model | JGK-4 |
| Condition | Used |
| Serial Number | F-22260 |
| Stock Number | CS-0021337 |
| Model | L5794LT ESM |
| Comp Ratio | 10.2 |
| Date | FEB 2006 |
| RPM | 1200 |
| SN | C-16576/1 |
| Model | JGK-4 |
| Stroke | 5.5" |
| Max RPM | 1200 |
| Min RPM | 600 |
| RL Tension | 37,000 |
| RL Compression | 40,000 |
| SN | F-22260 |
| Bore | 14.125" |
| Class | K |
| MAWP | 635 PSIG |
| SN | C-76254 |
| SN | C-76256 |
| Bore | 11" |
| MAWP | 845 PSIG |
| SN | C-76255 |
| Bore | 6.25" |
| MAWP | 2050 PSIG |
| SN | C-76253 |
| Model | A156 |
| Year | 01/06 |
| SN | 0536402 |
