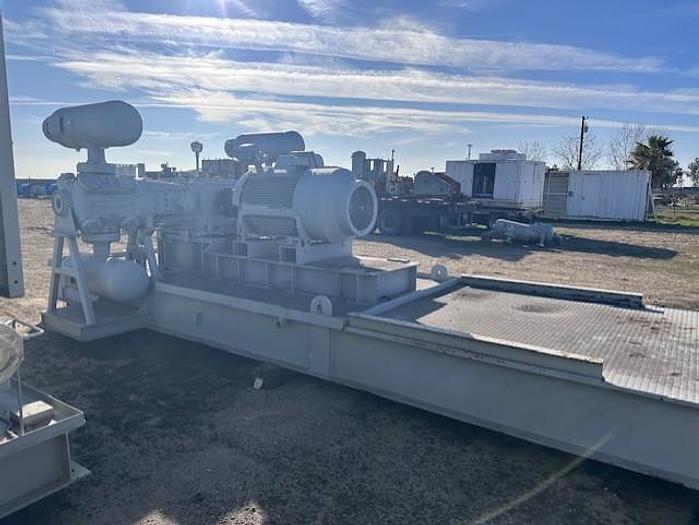

400 HP Ariel JGH-2 Compressor Package SN F-15450
400 HP Ariel JGH-2 Compressor Package SN F-15450
or
Call 661-257-8000
Description
Ariel Frame
Model: JGH-2
Stroke: 4.5"
Max RPM: 1200
Min RPM: 600
RL: 48,000
Date: September 2000
SN: F-15450
Ariel Cylinder
Bore: 7.25"
Stroke: 4.5"
Class: T
MAWP: 2400
RPM: 1500
SN: C-109991
Ariel Cylinder
Bore: 6.25"
Stroke: 4.5"
Class: T
MAWP: PENDING
RPM: PENDING
SN: C-574410
TECO Westinghouse Motor
Type: AEHG-TK
Frame: 5808B
Hp: 400
Volts: 2300 / 4160
Amps: 97.3 / 53.8
RPM: 890
Phase: 3
Hz: 60
CAT NO: KG4008
SN: WYAD138021-1
Specifications
| Manufacturer | Ariel |
| Model | JGH-2 |
| Condition | Rebuilt |
| Serial Number | F-15450 |
| Stock Number | CS-0020912 |
| Model | JGH-2 |
| Stroke | 4.5" |
| Max RPM | 1200 |
| Min RPM | 600 |
| RL | 48,000 |
| Date | September 2000 |
| SN | F-15450 |
| Bore | 7.25" |
| Class | T |
| MAWP | 2400 |
| RPM | 1500 |
| SN | C-109991 |
| Bore | 6.25" |
| MAWP | PENDING |
| RPM | PENDING |
| SN | C-574410 |
| Type | AEHG-TK |
| Frame | 5808B |
| Hp | 400 |
| Volts | 2300 / 4160 |
| Amps | 97.3 / 53.8 |
| RPM | 890 |
| Phase | 3 |
| Hz | 60 |
| CAT NO | KG4008 |
| SN | WYAD138021-1 |
