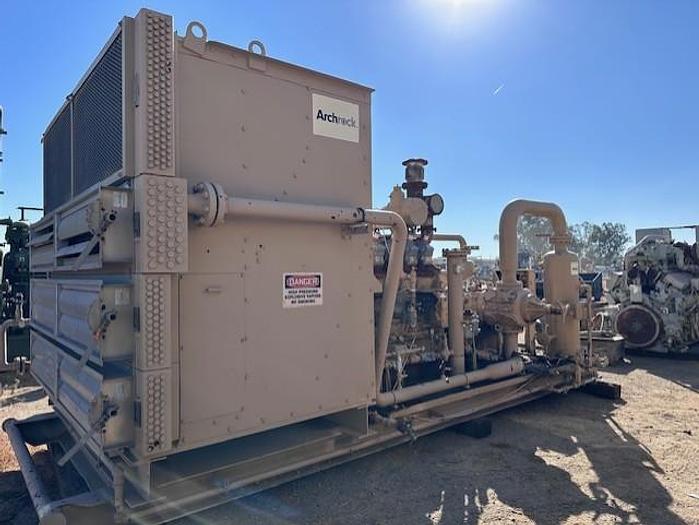

Cat Engine Model G3508NA/ Ariel JGR-2-2 Stage SN F-7426 Cylinder Sizes 9.75” x 5.125” x 4.25” Stroke
Cat Engine Model G3508NA/ Ariel JGR-2-2 Stage SN F-7426 Cylinder Sizes 9.75” x 5.125” x 4.25” Stroke
or
Call 661-257-8000
Description
Ariel Frame
Model: JGR-2
Stroke: 4.25
Min RPM: 1200
Max RPM: 600
Max RL Tension: 32,000
Date: 03-91
SN: F-7426
Ariel Cylinder
Bore: 9.25
Stroke: 4.25
MAWP: 470
SN: C-18699
Ariel Cylinder
Bore: 5.125
Stroke: 4.25
MAWP: 1500
SN: C-18700
Radiator Tag
Item: U18110R
Service Number: IC2
Test Pressure: 1973 PSIG
MAWP: 1315 PSIG @ 300 Deg F
MDMT -20 Deg F @ 1315 PSIG
SN: C6341
SN: C6342
SN: C6343
SN: C6344
Cherco Tag
MAWP: 450 PSI @ 200 Deg F
MDMT: -20 Deg F @ 450 PSI
Year: 1991
SN: CV-2760
Gemini Engine Tag
Model: MK-XX
Hydro Test PSI: 1013
MAWP: 675PSI @ 200 Deg F
MDMT: -20 Deg F @ 675PSI
Year: 1991
Skid Weighs 45,000 Lbs.
Specifications
| Manufacturer | Ariel |
| Model | JGR-2 |
| Condition | Used |
| Serial Number | F-7426 |
| Stock Number | CS-0020603 |
| Model | JGR-2 |
| Stroke | 4.25 |
| Min RPM | 1200 |
| Max RPM | 600 |
| Max RL Tension | 32,000 |
| Date | 03-91 |
| SN | F-7426 |
| Bore | 9.25 |
| MAWP | 470 |
| SN | C-18699 |
| Bore | 5.125 |
| MAWP | 1500 |
| SN | C-18700 |
| Item | U18110R |
| Service Number | IC2 |
| Test Pressure | 1973 PSIG |
| SN | C6341 |
| SN | C6342 |
| SN | C6343 |
| SN | C6344 |
| Year | 1991 |
| SN | CV-2760 |
| Model | MK-XX |
| Hydro Test PSI | 1013 |
