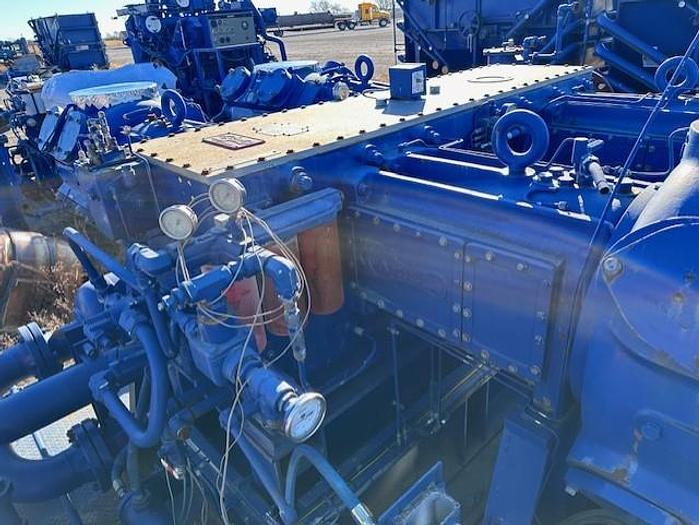

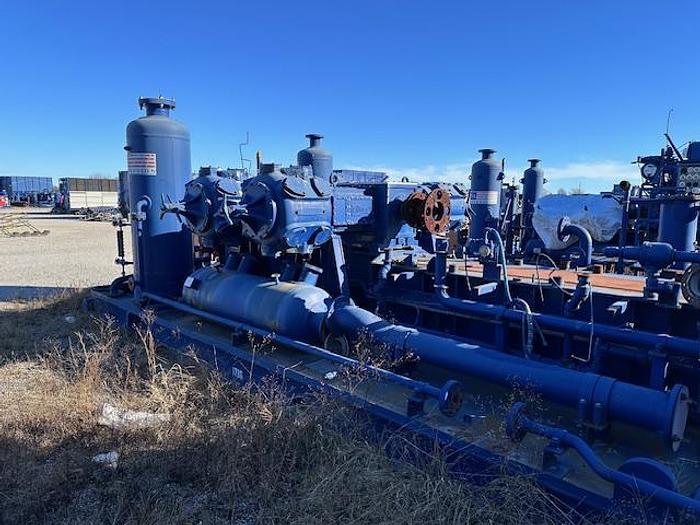

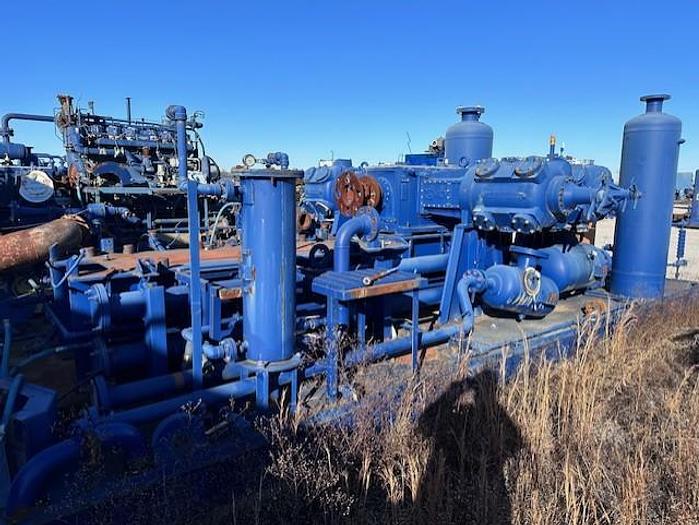

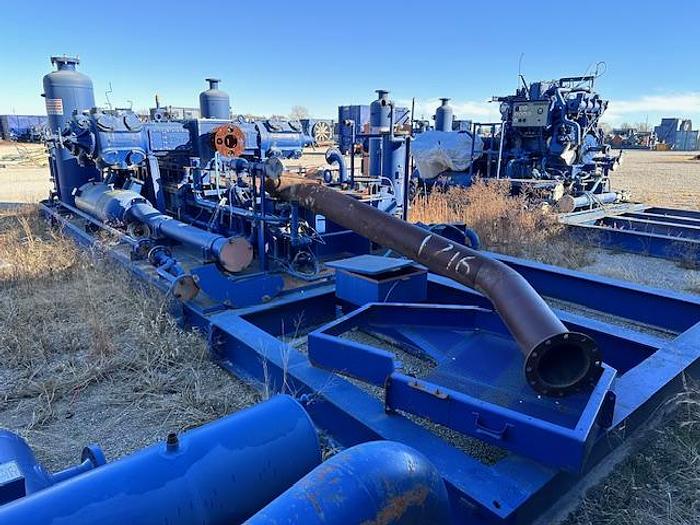

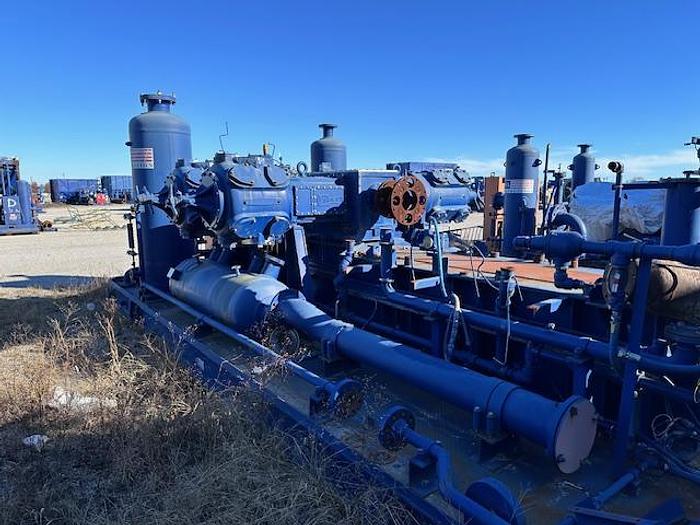

Ariel JGE-4 SN F-23606 / Waukesha F3524GSI (no engine) Three Stage Compressor Package Size 17.25” x 17.25” x 13.5” x 9.625” with ACE J144 Cooler
Ariel JGE-4 SN F-23606 / Waukesha F3524GSI (no engine) Three Stage Compressor Package Size 17.25” x 17.25” x 13.5” x 9.625” with ACE J144 Cooler
or
Call 661-257-8000
Description

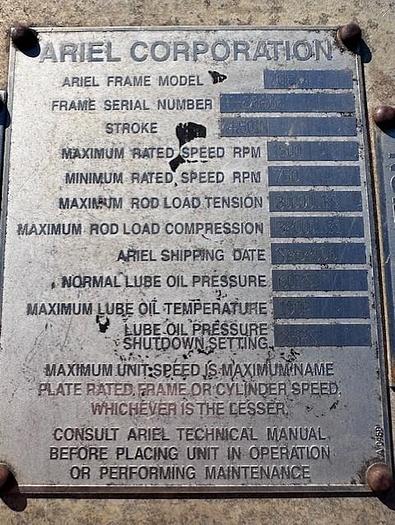

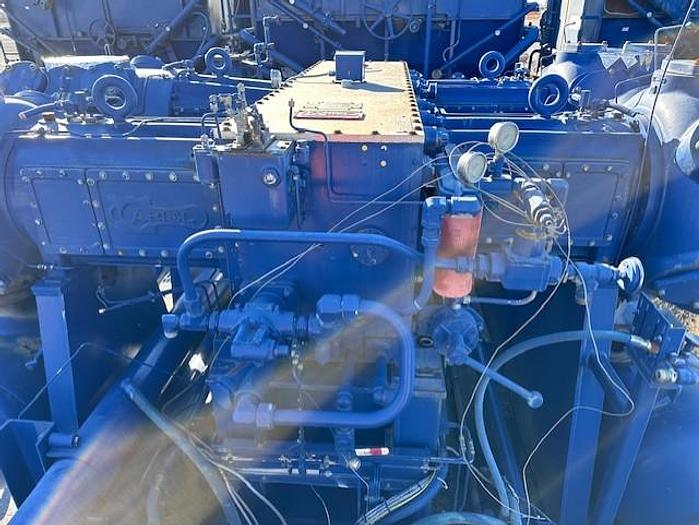

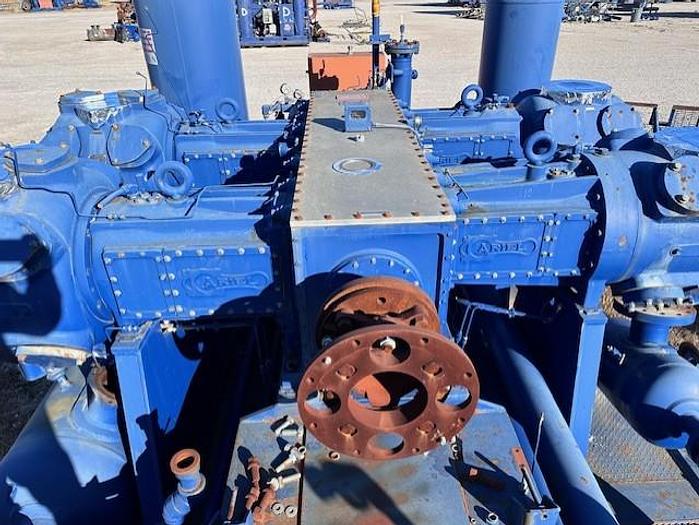

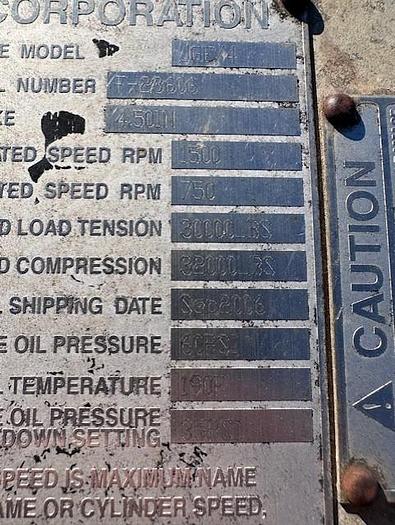

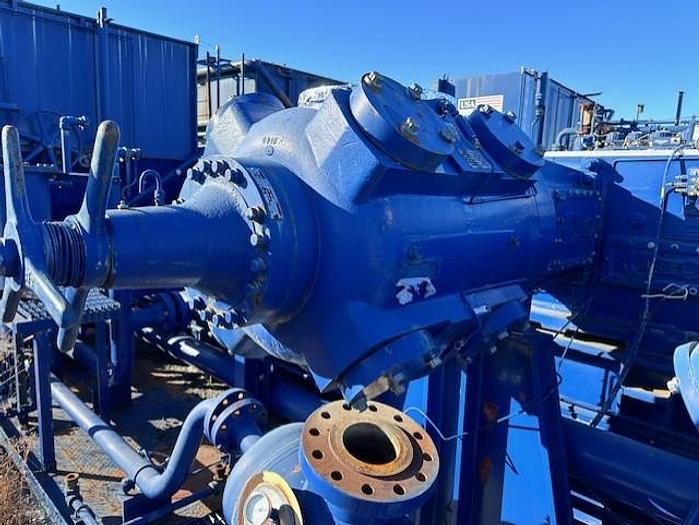

Ariel Frame
Model: JGE-4
Stroke: 4.5"
Max RPM: 1500
Min RPM: 750
Max RL Tension: 30000 Lbs
Max RL Compression: 32000 Lbs
Shipping Date: SEP 2006
Normal Lube Oil Temp: 60 PSI
Max Lube Oil Temp: 190 PSI
SN: F-23606

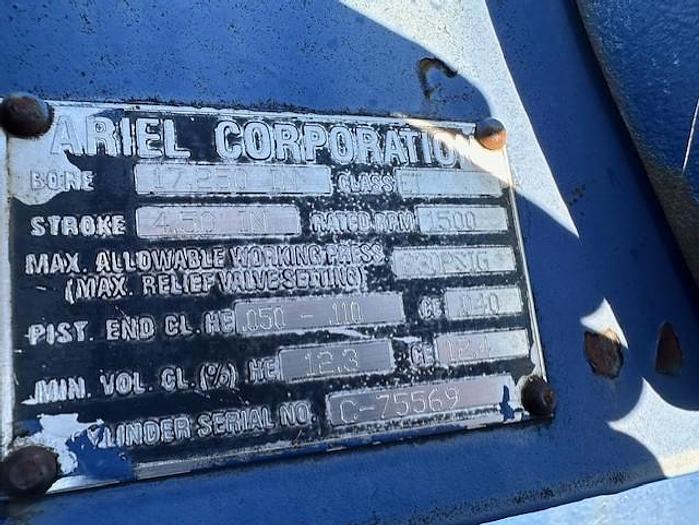

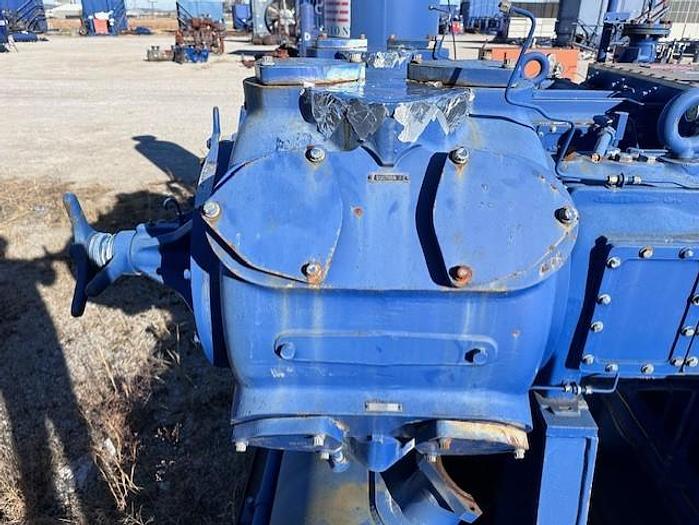

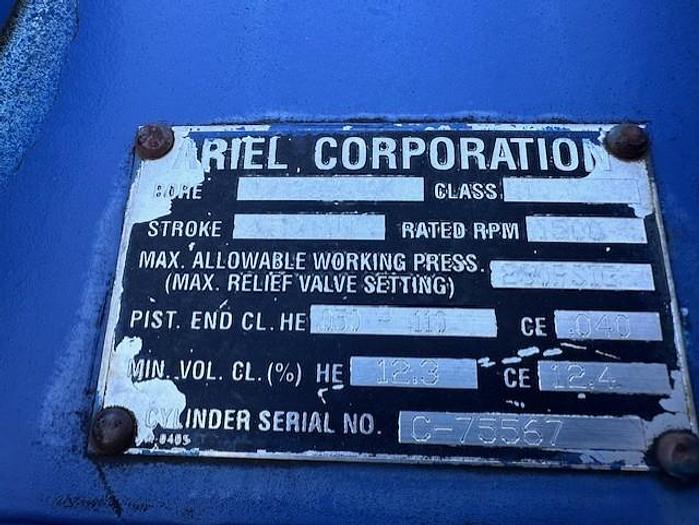

Ariel Cylinder 1st Stage
Bore: 17.25"
Stroke: 4.5"
Class: ET
RPM: 1500
MAWP: 230 PSIG
SN: C-75569
SN: C-75567

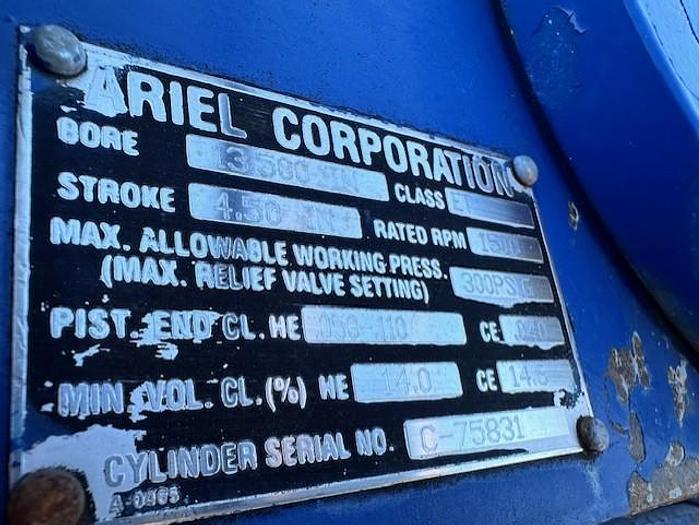

Ariel Cylinder 2nd Stage
Bore: 13.5"
Stroke: 4.5"
Class: ET
RPM: 1500
MAWP: 300 PSIG
SN: C-75831

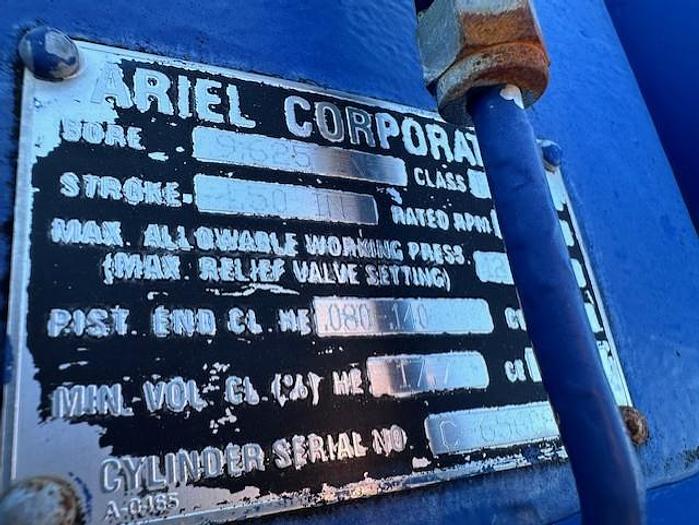

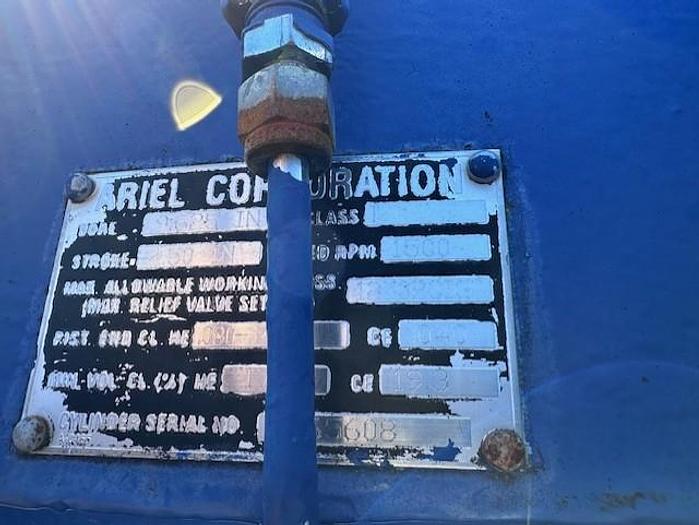

Ariel Cylinder 3rd Stage
Bore: 9.625"
Stroke: 4.5"
Class: ET
RPM: 1500
MAWP: 1270 PSIG
SN: C-65608

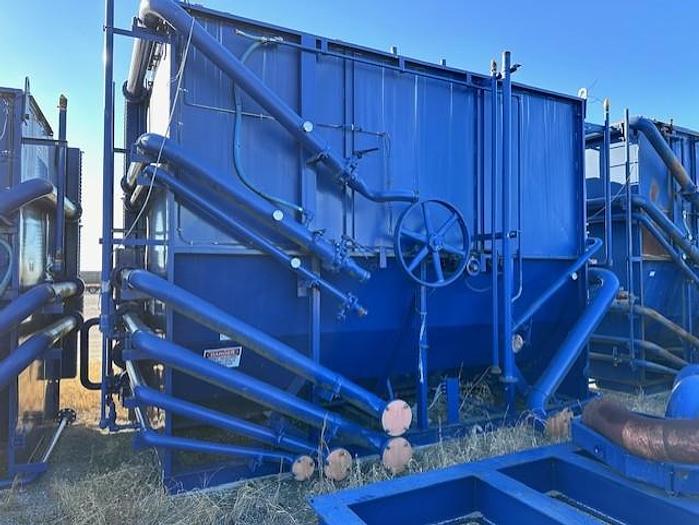

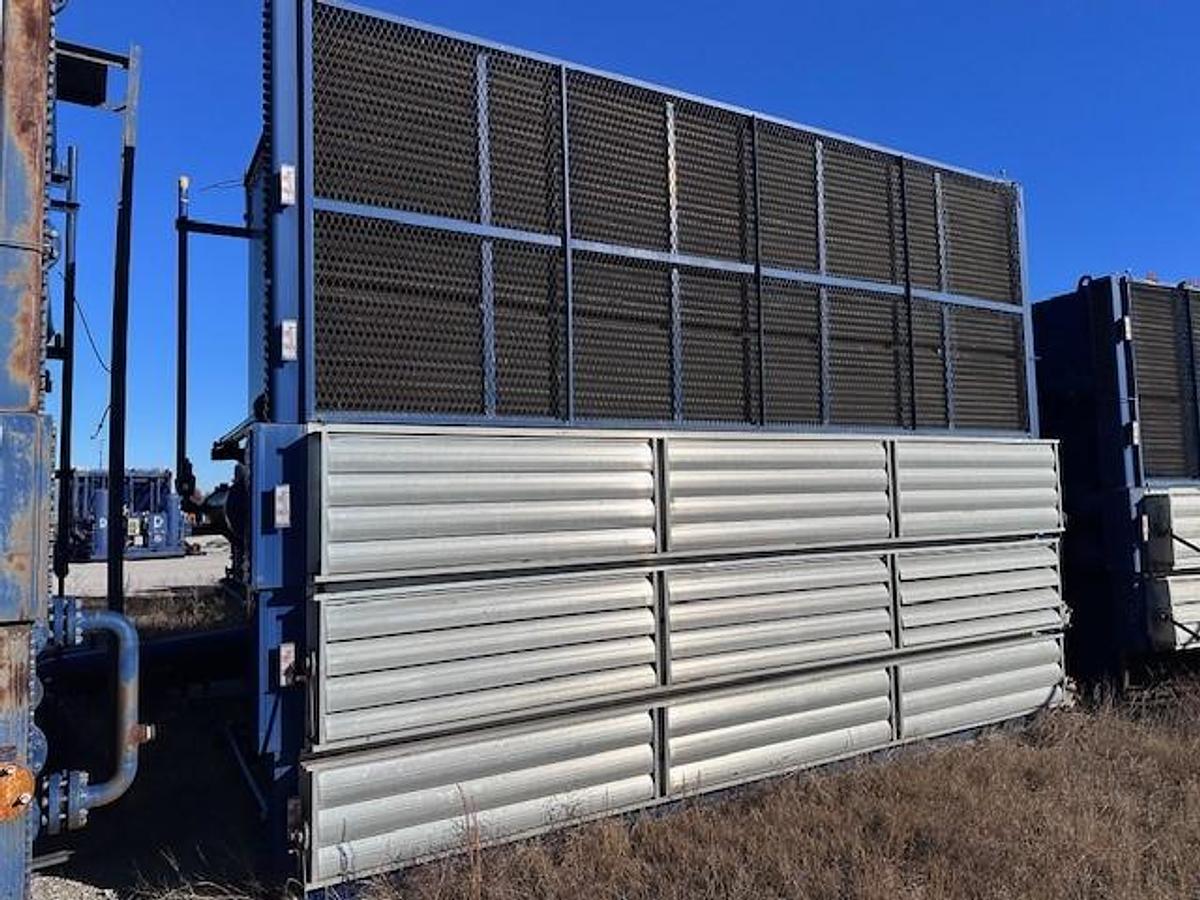

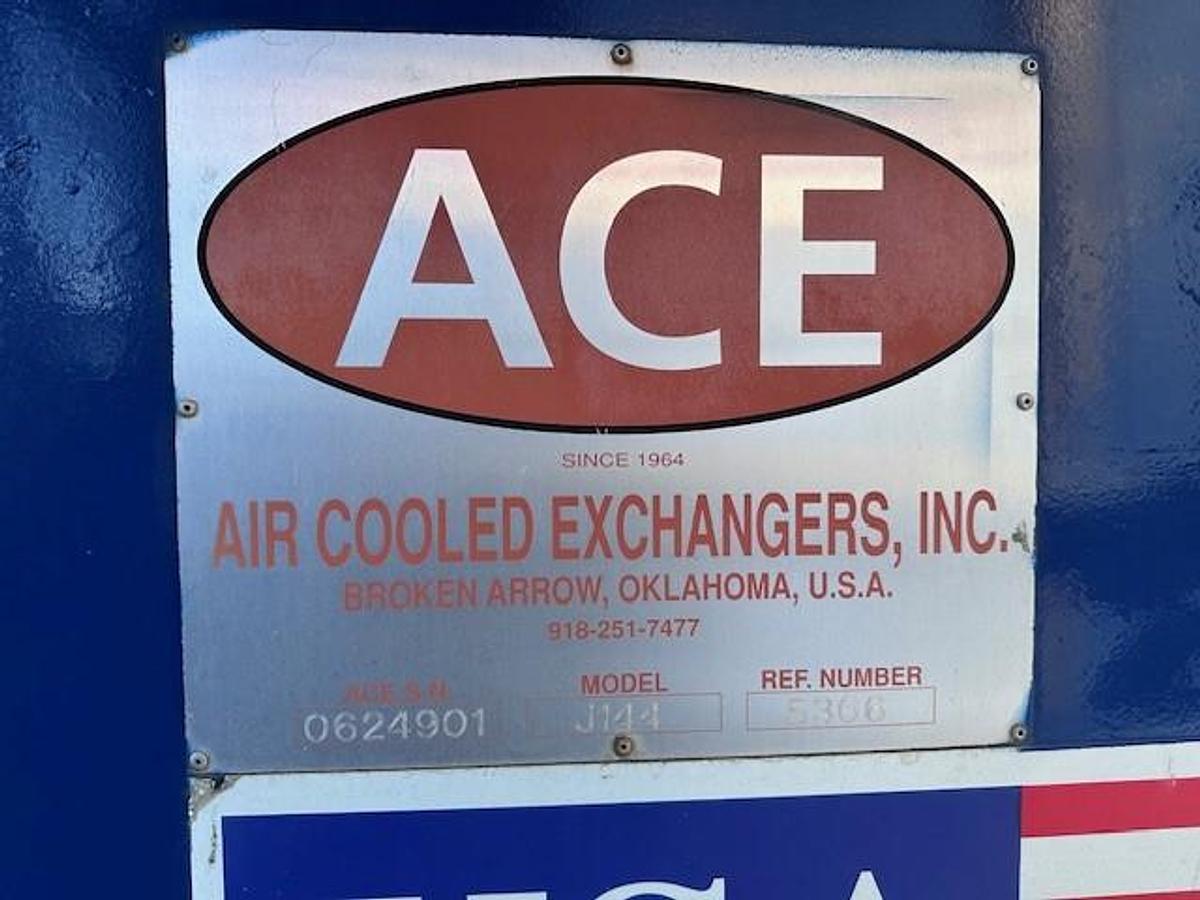

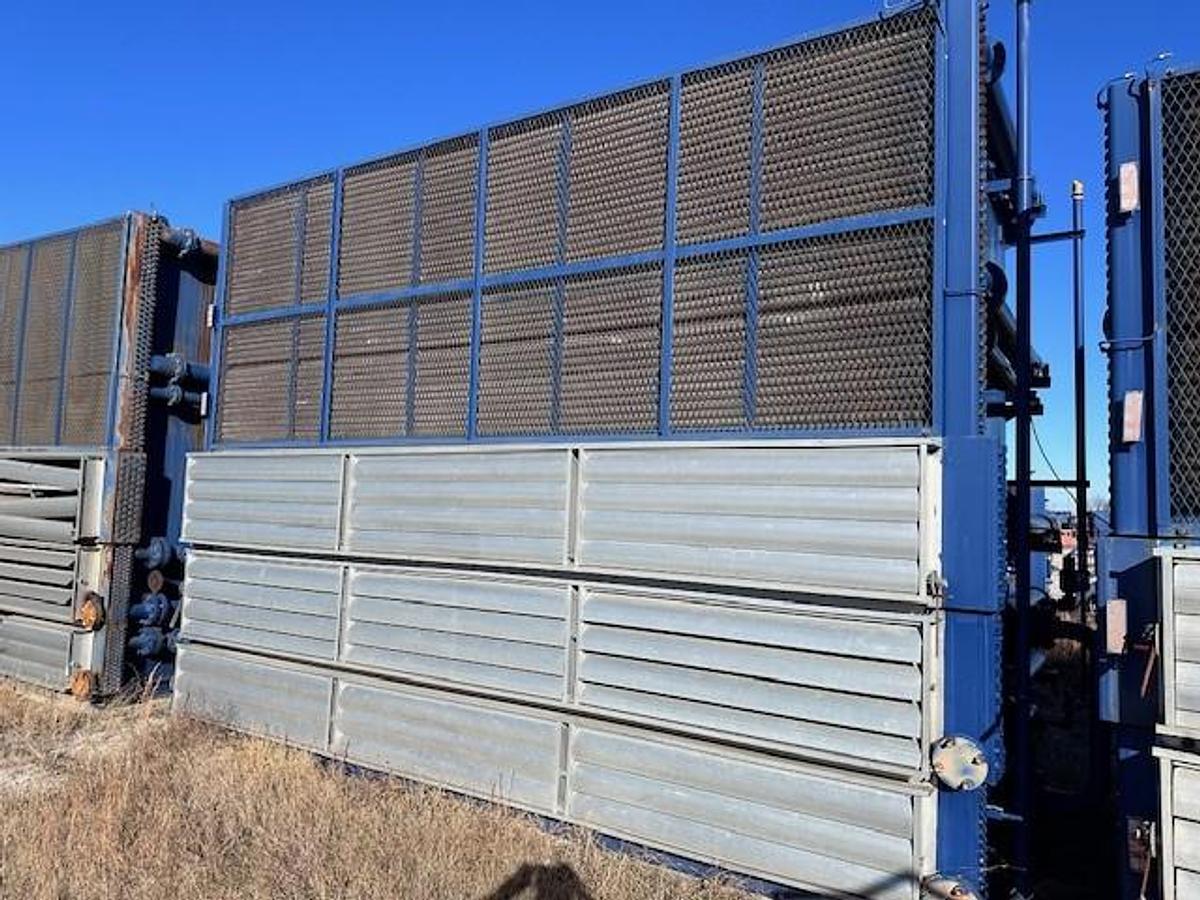

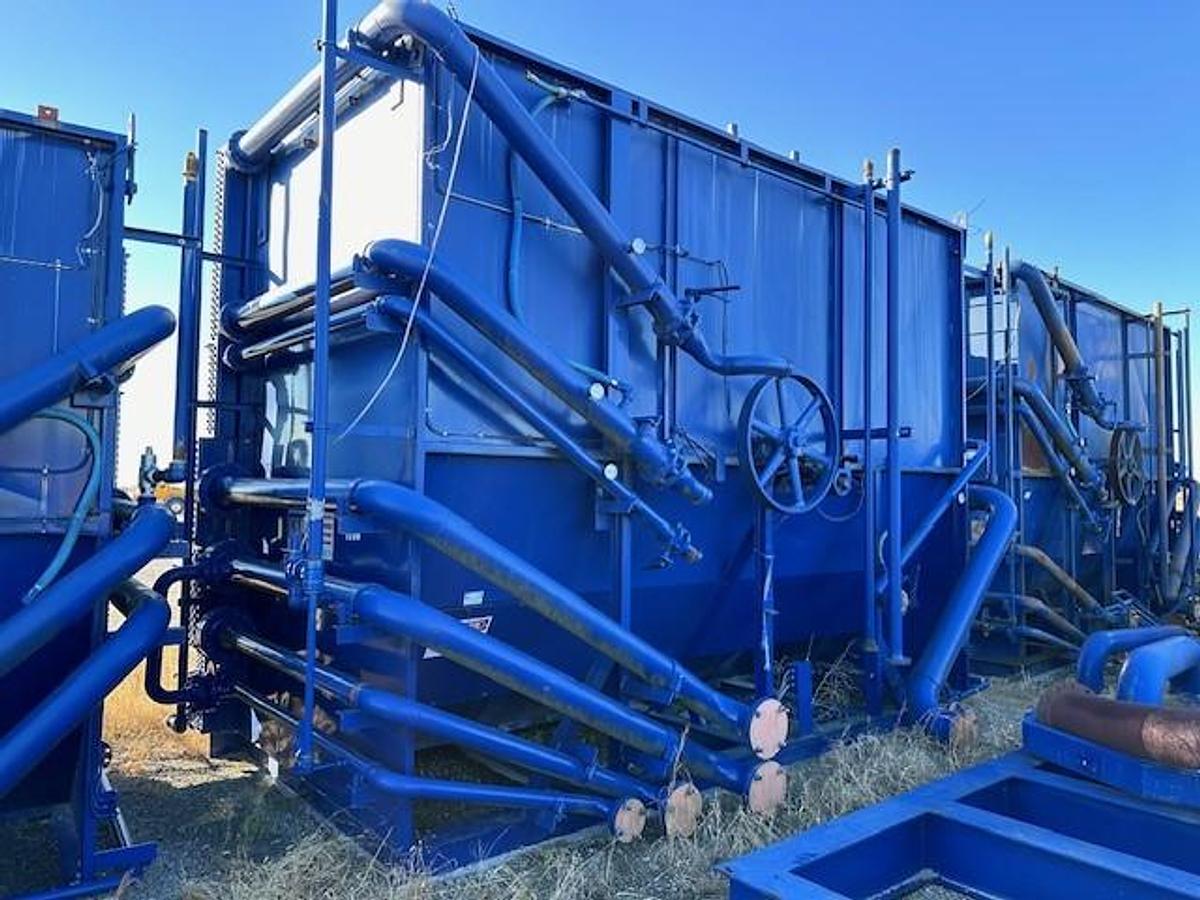

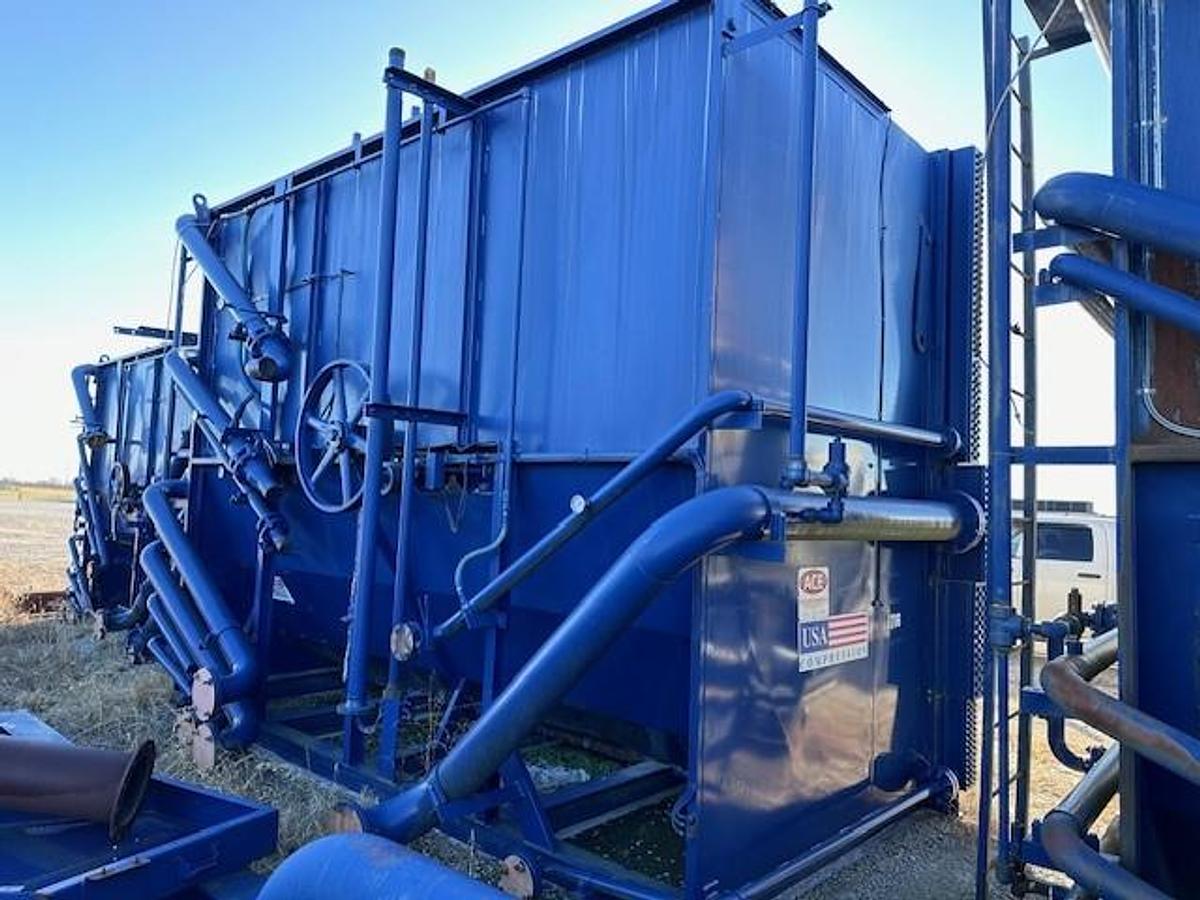

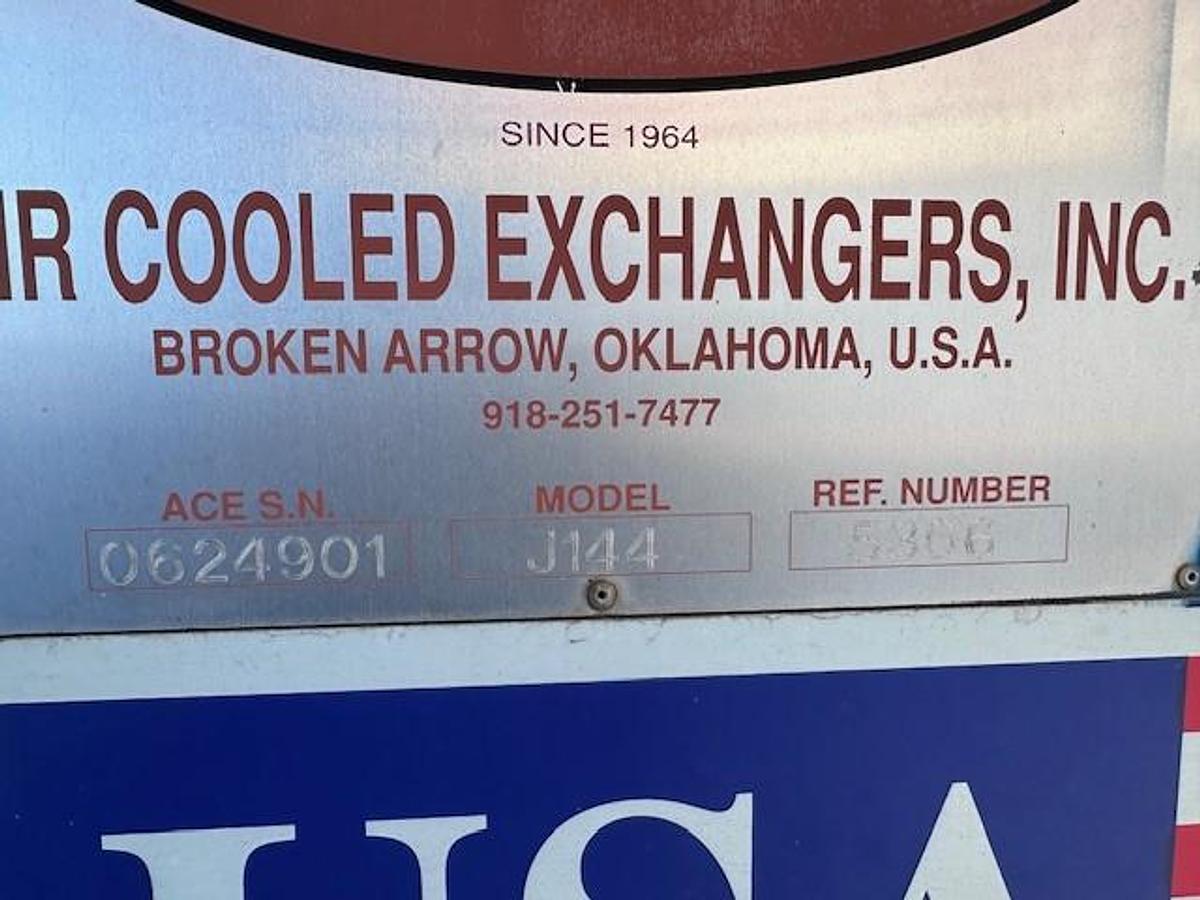

Air Cooler Exchanger inc.
Model: J144
Ref No.: 5306
SN: 0624901

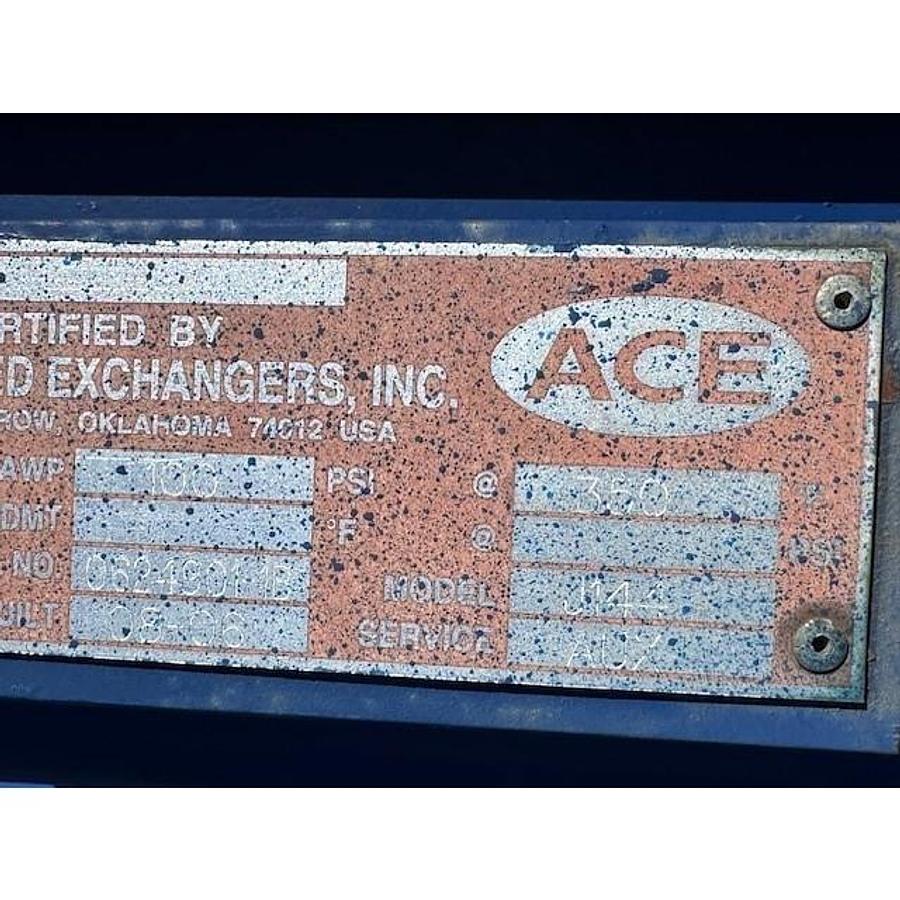

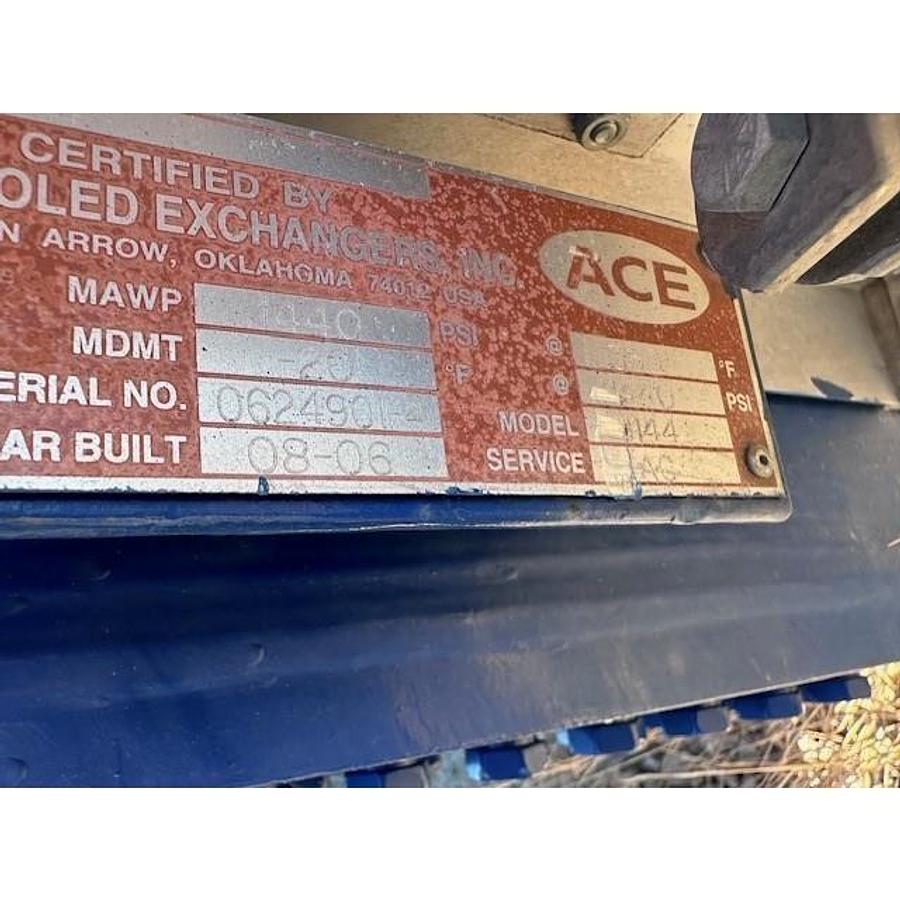

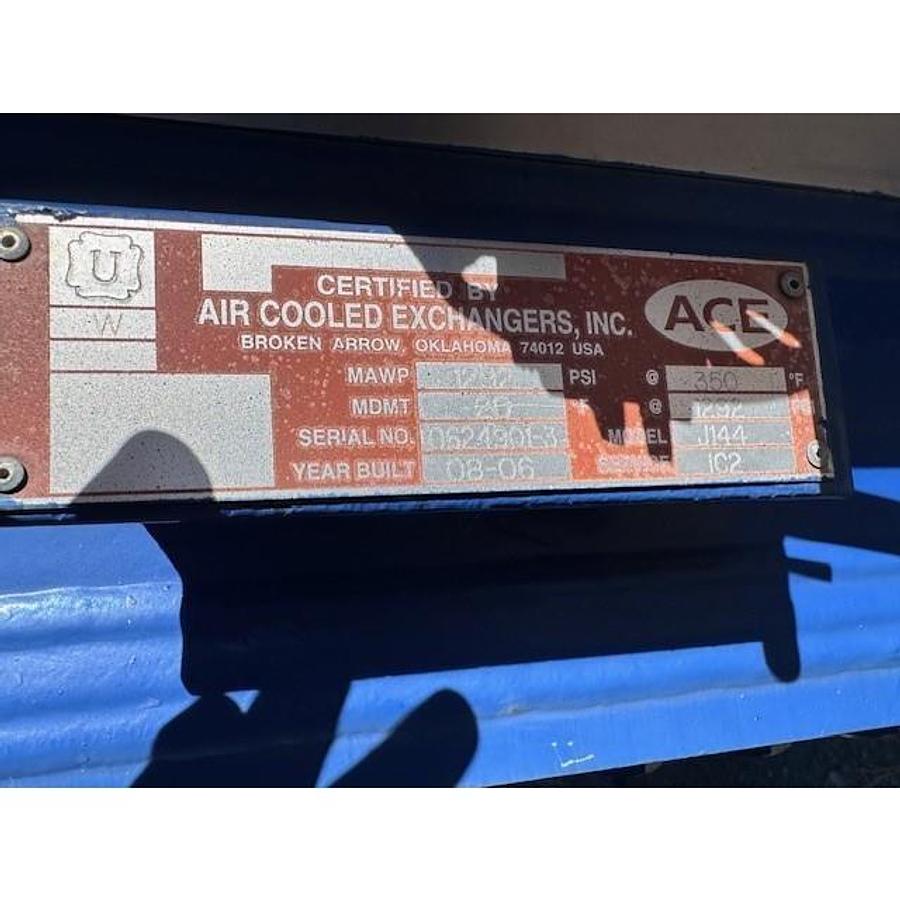

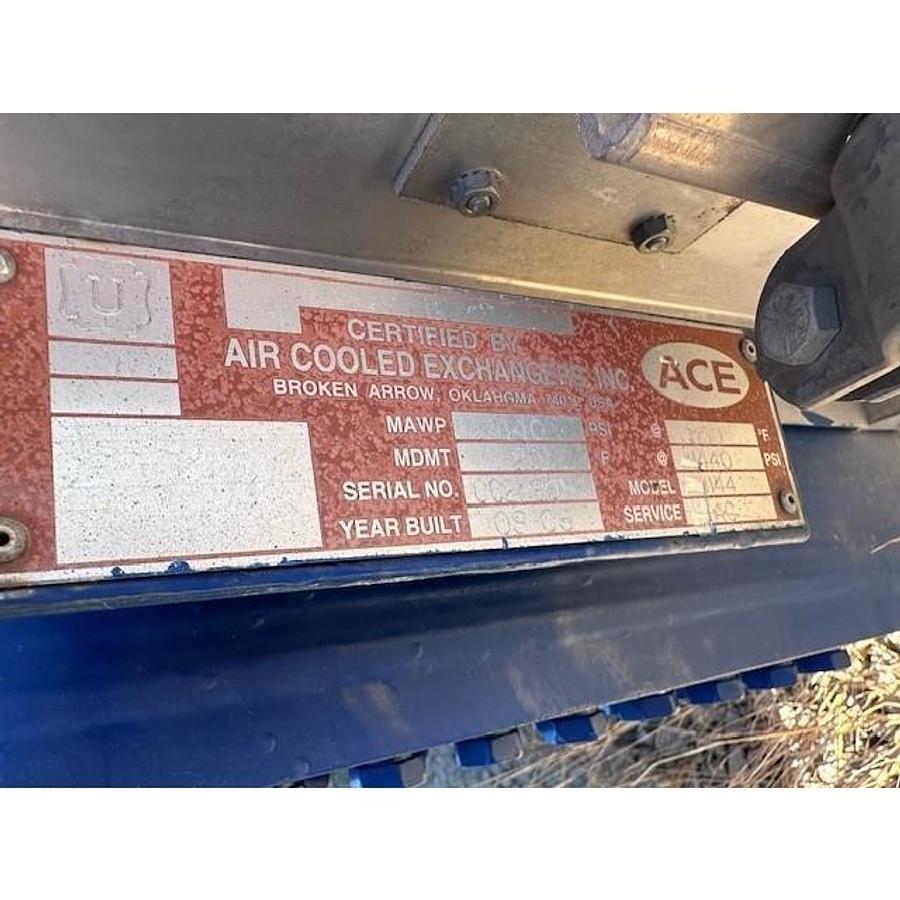

Air Cooler Exchager inc. 2nd Tag
Model: J144
Service: IC2
Year: 08-06
MAWP: 1292 psi @ 350 deg F
MDMT: -20 deg F @ 1292 psi
Specifications
| Manufacturer | Ariel |
| Model | JGE-4 |
| Condition | Used |
| Serial Number | F-23606 |
| Stock Number | CS-0020445 |
| Model | JGE-4 |
| Stroke | 4.5" |
| Max RPM | 1500 |
| Min RPM | 750 |
| Max RL Tension | 30000 Lbs |
| Max RL Compression | 32000 Lbs |
| Shipping Date | SEP 2006 |
| Normal Lube Oil Temp | 60 PSI |
| Max Lube Oil Temp | 190 PSI |
| SN | F-23606 |
| Bore | 17.25" |
| Class | ET |
| RPM | 1500 |
| MAWP | 230 PSIG |
| SN | C-75569 |
| SN | C-75567 |
| Bore | 13.5" |
| MAWP | 300 PSIG |
| SN | C-75831 |
| Bore | 9.625" |
| MAWP | 1270 PSIG |
| SN | C-65608 |
| Model | J144 |
| Ref No. | 5306 |
| SN | 0624901 |
| Service | IC2 |
| Year | 08-06 |
