Description

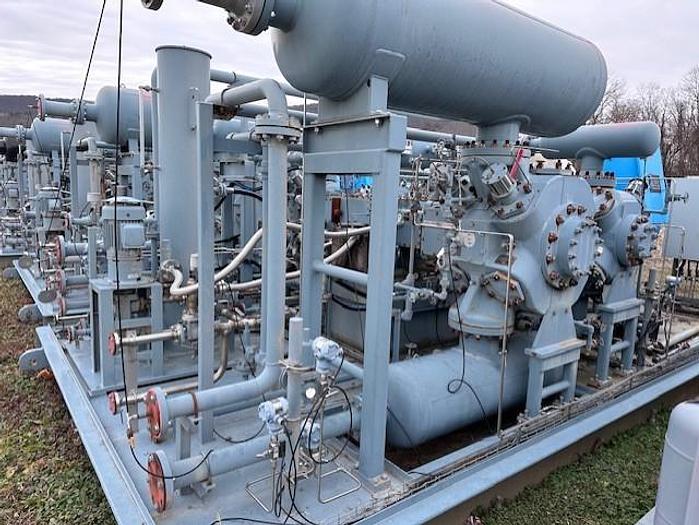

Dresser Rand MOS-4 / 550 HP Compressor Packages – designed for LNG Service

Dresser Rand Compressor Frame

Model: 7MOS-4

Stroke: 7”

RPM: 425

Non Lube Design

SN: 1392366



Dresser Rand Compressor Cylinder

Bore: 17.5”

Stroke: 7”

Class: HOS

MAWP: 545

Water cooled

Non lube cylinder

Standard fixed head

SN: 1395286



Dresser Rand Compressor Cylinder

Bore: 11.5”

Stroke: 7”

Class: HOS

MAWP: 1265

Water cooled

Non lube cylinder

Standard fixed head

SN: 1395276



Dresser Rand Compressor Cylinder

Bore: 10.5”

Stroke: 7”

Class: HOS

MAWP: 1650

Water cooled

Non lube cylinder

Standard fixed head

SN: 1390942



Dresser Rand Compressor Cylinder

Bore: 10.5”

Stroke: 7”

Class: HOS

MAWP: 1650

Water cooled

Non lube cylinder

Standard fixed head

SN: 1390943

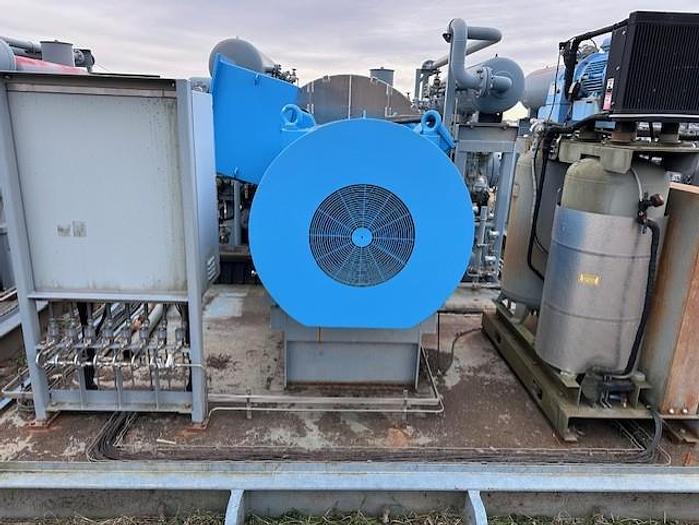

WEG Electric Motor

HP: 550

RPM: 426

Volts: 480

Amps: 874.1

Hz: 50

Phase: 3

Frame: 8008

Enclosure: TEFC

Insulation Class: F

S.F.: 1.0

P.F.: 0.60

Duty: S1

Code: J

Altitude: 3300 ft

Weight 16,888 LBS

SN: 1020954657



Dresser Rand Panel

PN: 23844

Drawing: 000-025-0114

Supply Voltage: 24 VDC

Max Current: 10 Amps

SCCR: 10 Ks RMS

SN: 23844-015



Skid Dimensions: 27’5” L x 14’ W x 9’11” H

Estimated weight: 91,000 LBS



https://www.youtube.com/watch?v=1-TQwN5XreM



https://www.compressortech2.com/news/go-go-lngo/8001117.article


Specifications

ManufacturerDresser Rand
Model7MOS-4
ConditionUsed
Serial Number1392366
Stock NumberCS-0020338
Model7MOS-4
Stroke7”
RPM425
SN1392366
