Ariel JGJ-6 Frame SN F-33689 Size 19” x 19” x 19” x 13.5” x 9.75” x 7”

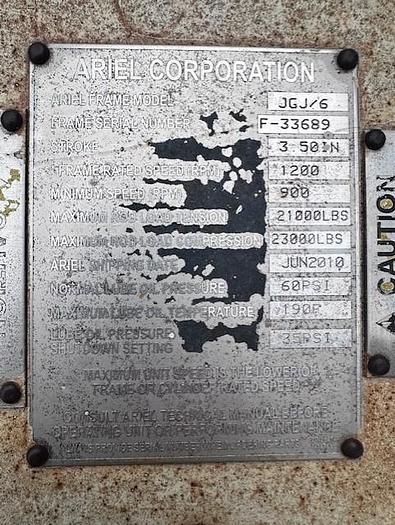

Ariel Compressor Frame

MODEL: JGJ-6

STROKE: 3.50"

RPM: 1200

MIN. RPM: 900

MAX. ROD LOAD TENSION: 21,000 LBS

MAX. ROD LOAD COMPRESSION: 23.000 LBS

ARIEL SHIPPING DATE: JUN2010

SN: F-33689

Ariel Cylinder 1

BORE: 19.000"

CLASS: RJ-PRC

STROKE: 3.50"

RPM: 1200

MAWP: 200 PSI

SN: C-116343

Ariel Cylinder 2

BORE: 19.000"

CLASS: RJ-PRC

STROKE: 3.50"

RPM: 1200

MAWP: 200 PSI

SN: C-116341

Ariel Cylinder 3

BORE: 19.000"

CLASS: RJ-PRC

STROKE: 3.50"

RPM: 1200

MAWP: 200 PSI

SN: C-116344

Ariel Cylinder 5

BORE: 13.500"

CLASS: RJ-PRC

STROKE: 3.50"

RPM: 1200

MAWP: 300 PSI

SN: C-116342

Ariel Cylinder 4

BORE: 9.750"

CLASS: RJ-PRC

STROKE: 3.50"

RPM: 1200

MAWP: 635 PSI

SN: C-116340

Ariel Cylinder 6

BORE: 7.000"

CLASS: RJ-PRC

STROKE: 3.50"

RPM: 1200

MAWP: 845 PSI

SN: C-116339

Dimensions

8’2” W

12’10” L

6’ H
