Gemini H304 / 250 HP Four Stage CNG Units Size 7.5” x 4” x 2.5” x 1.25”
Gemini H304 / 250 HP Four Stage CNG Units Size 7.5” x 4” x 2.5” x 1.25”
orCall (661) 257-8000
Description
“Unit D - 11553”

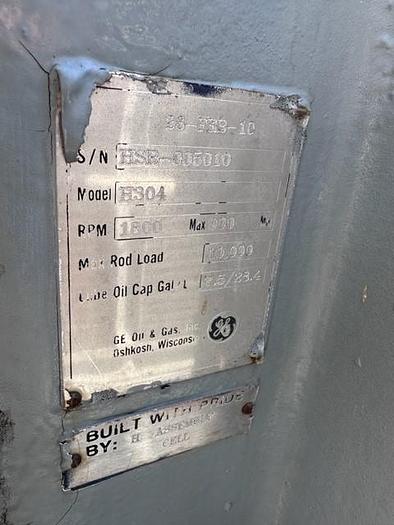

Gemini Compressor Frame
Model: H304
Stroke: 3”
RPM: 1800
Rod Load: 10,000 LBS
MFG Date: February 2010
SN: HSR-005010
Cylinder Sizes 7.5” x 4” x 2.5” x 2.5” x 1.25”x 1.25” Tandems
Siemens PE-21 Plus Premium Efficiency Electric Motor
HP: 250
RPM: 1785
Type: R6ZZESD
Volts: 460
Amps: 282
Phase: 3
Hz: 60
Ins Class: B
Duty: Continuous
Frame: 449T
S.F.: 1.15
SN: 3-5141-LR13630-1-2
Specifications
| Manufacturer | Gemini |
| Model | H304 |
| Year | 2010 |
| Condition | Used |
| Serial Number | HSR-005010 |
| Stock Number | CS-0020153 |
| Model | H304 |
| Stroke | 3” |
| RPM | 1800 |
| Rod Load | 10,000 LBS |
| MFG Date | February 2010 |
| SN | HSR-005010 |
| HP | 250 |
| Frame | 449T |
| RPM | 1785 |
| Type | R6ZZESD |
| Volts | 460 |
| Amps | 282 |
| Amps | 282 |
| Phase | 3 |
| Phase | 3 |
| Phase | 3 |
| Phase | 3 |
| Phase | 3 |
| Hz | 60 |
| Ins Class | B |
| Duty | Continuous |
| S.F. | 1.15 |
| SN | 3-5141-LR13630-1-2 |
