Ariel JGD-4 Compressor Frame S/N: F-13209

Sold

Ariel JGD-4 Compressor Frame S/N: F-13209

Description

Ariel cylinders on the frame:

1st stage Ariel Cylinders

Bore: 15.375”

Stroke: 5.5”

Class: JGD

MAWP: 635

SN: C-100326

SN: C-100364

Complete with VVCPs

Tandem suction pulsation bottle included


2nd stage Ariel Cylinders

Bore: 9.625”

Stroke: 5.5”

Class: JGD (have been converted from C to D)

MAWP: 1270

SN: C-23077

SN: C-23977

Complete with VVCP

Tandem suction pulsation bottle included



Also included:

Cat G3606/ G3608 Air Cleaner Box

Cat G3600 series hot start

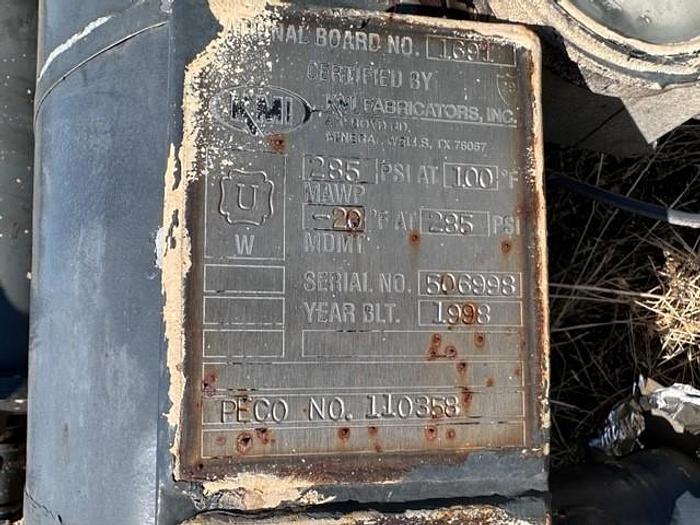

Cat G3600 series engine fuel gas filter (PECO)

Ariel JGD-4 frame oil cooler

Scrubber 7’ x 42” OD, 500 psig MAWP

Scrubber 7’ x 36” OD, 700 psig MAWP



Specifications

ManufacturerAriel
ModelJGD-4
Year1998
ConditionUsed
Serial NumberF-13209
Stock NumberCS-0020092
RPM1200
ModelJGD-4
Rod Load114,000 lbs
MFG DateJune 1998
ClassJGD
SNF-13209
Stroke5.5”
