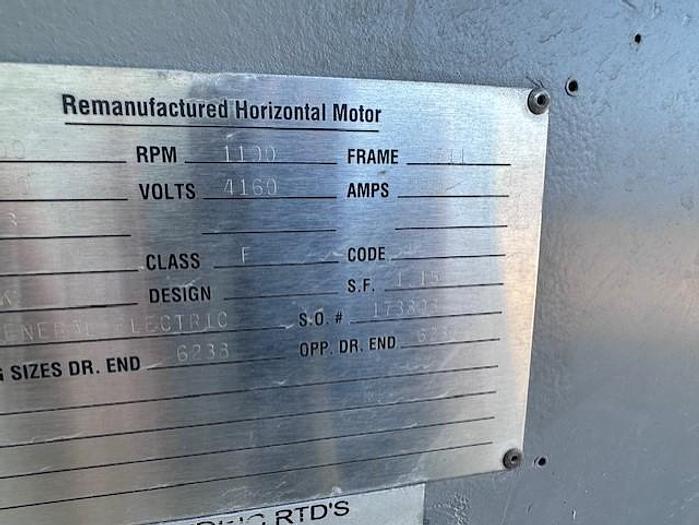

General Electric 2500 HP @1190 RPM Motor SN 173898- Rebuilt

General Electric

HP: 2500

RPM: 1190

Type: K

Frame: 8511

Phase: 3

Volt: 4160

AMPS: 320

Code: H

S.F.: 1.15

Hz: 60

Class: F

S/N: 173898

Winding RTD's

6 Each - 2 Per Phase

Ohms: 100 Platinum

Bearing RTD's

2 Each

Ohms: 100 Platinum

Space Heaters

Volts: 240

Watts: 3200

Advantech Touch Panel Screen

Model: TPC-1570H-A1E

Input: 18-32 vdc

GCS PN: 2915-7301

Woodward AtlasSC Control

PN: 8273-040

REV: D

SN: 14606380 0601

GCS PN: 2910-7301

GCS SN: 14606380

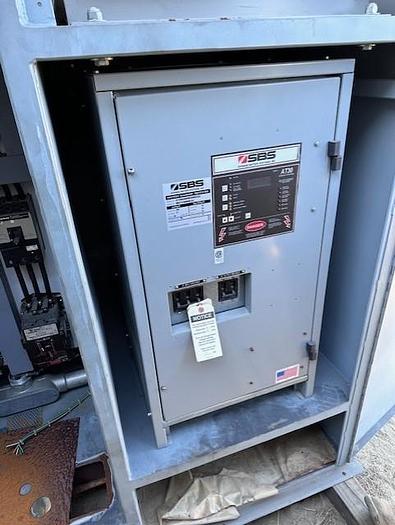

SBS Battery Charger

Model: AT30024050E208SXSX

INPUT

AC Volts: 208

AC Amps: 77

Hz: 60

Phase: 3

OUTPUT

DC Volts: 24

DC Amps: 50

Ripple mV rms: 30

Battery Type: PB

# of Cells: 12

SN: 98572-569040 EJ

LimitAMP Motor Control

Model: CR194A118A2

Power Fuse CAT #: 55A212942P24RB

Interrupting Rate: 350

MVA Class E: 2

Phase: 3

Hz: 60

Volts AC: 4160

Kv: 60

Load Type: IND

CAT#: 19197-001
