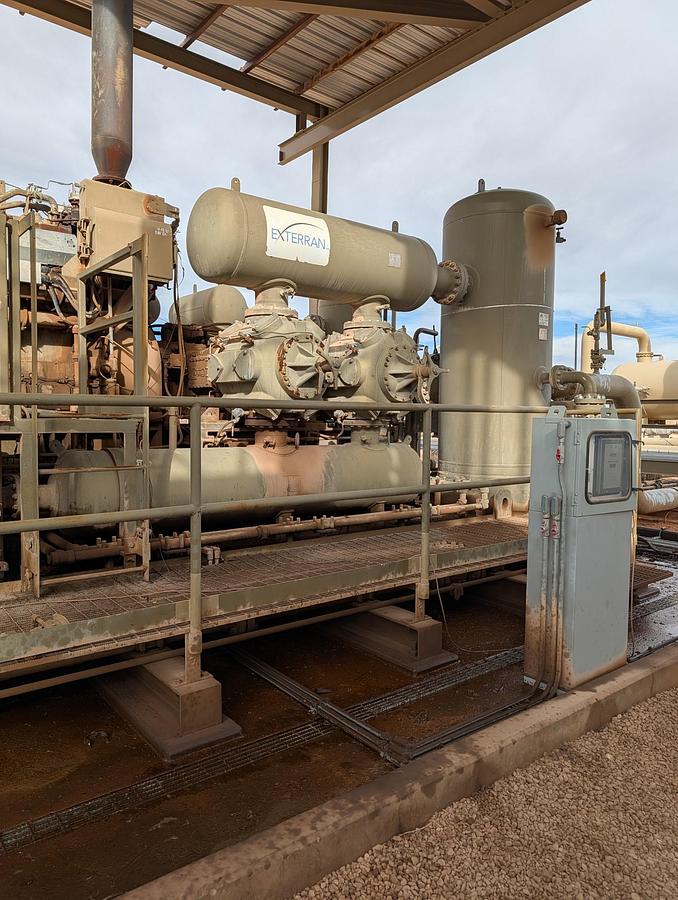

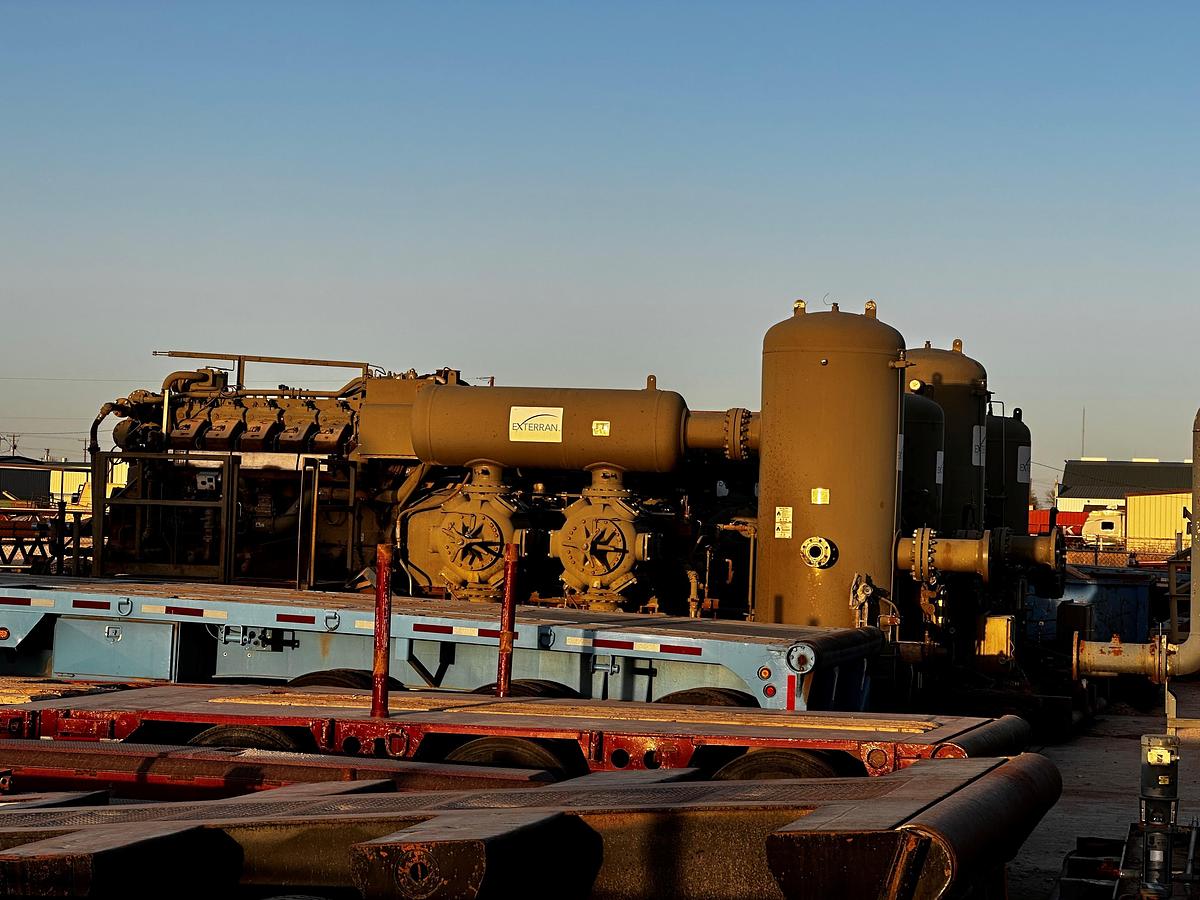

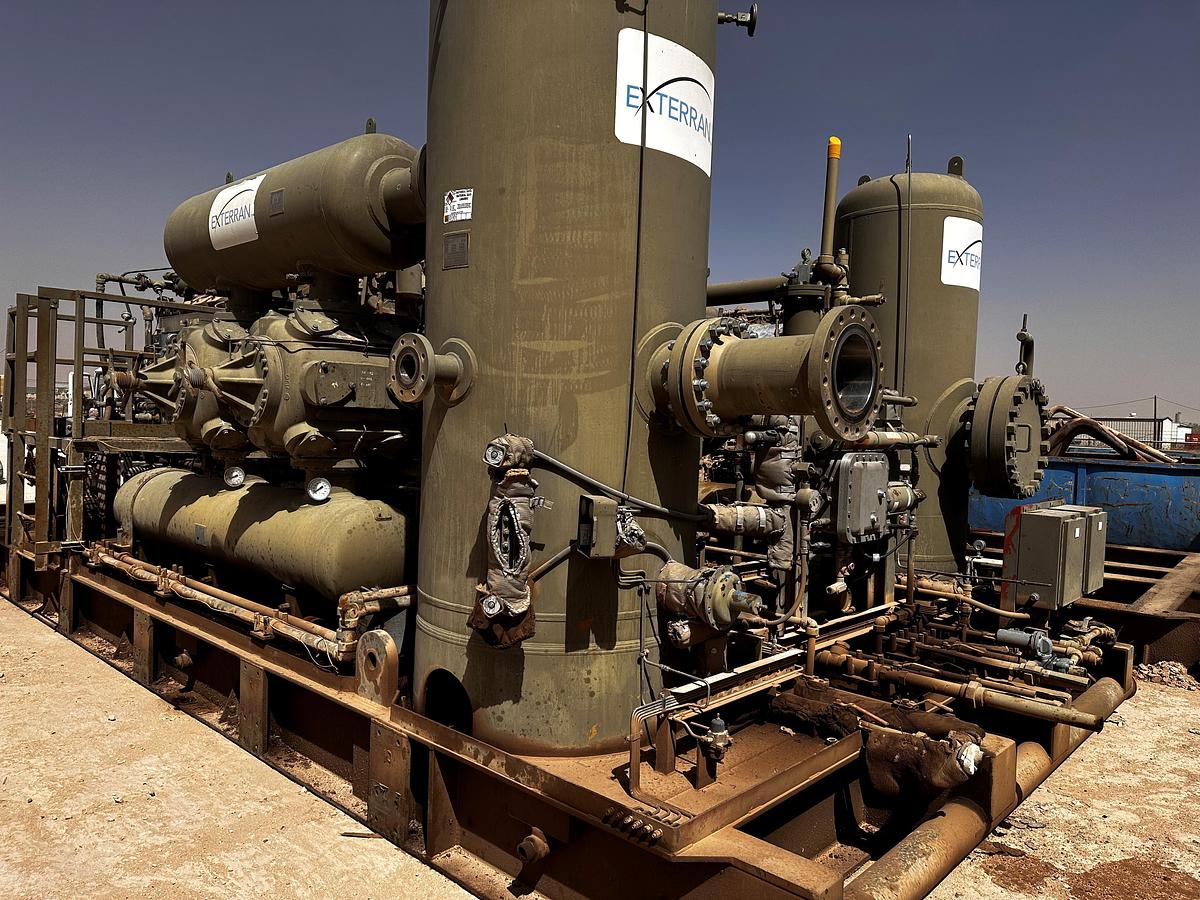

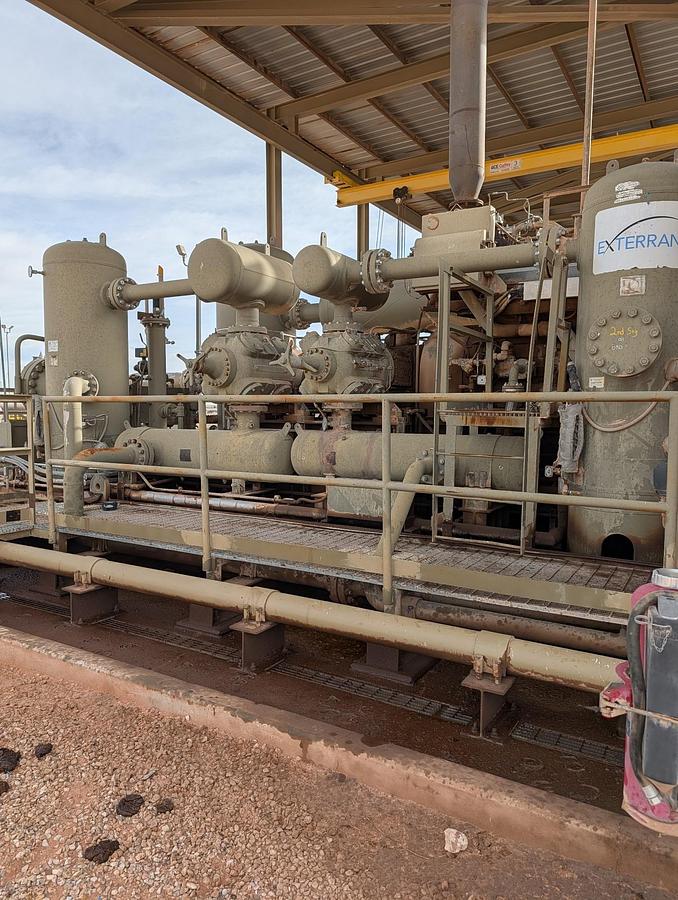

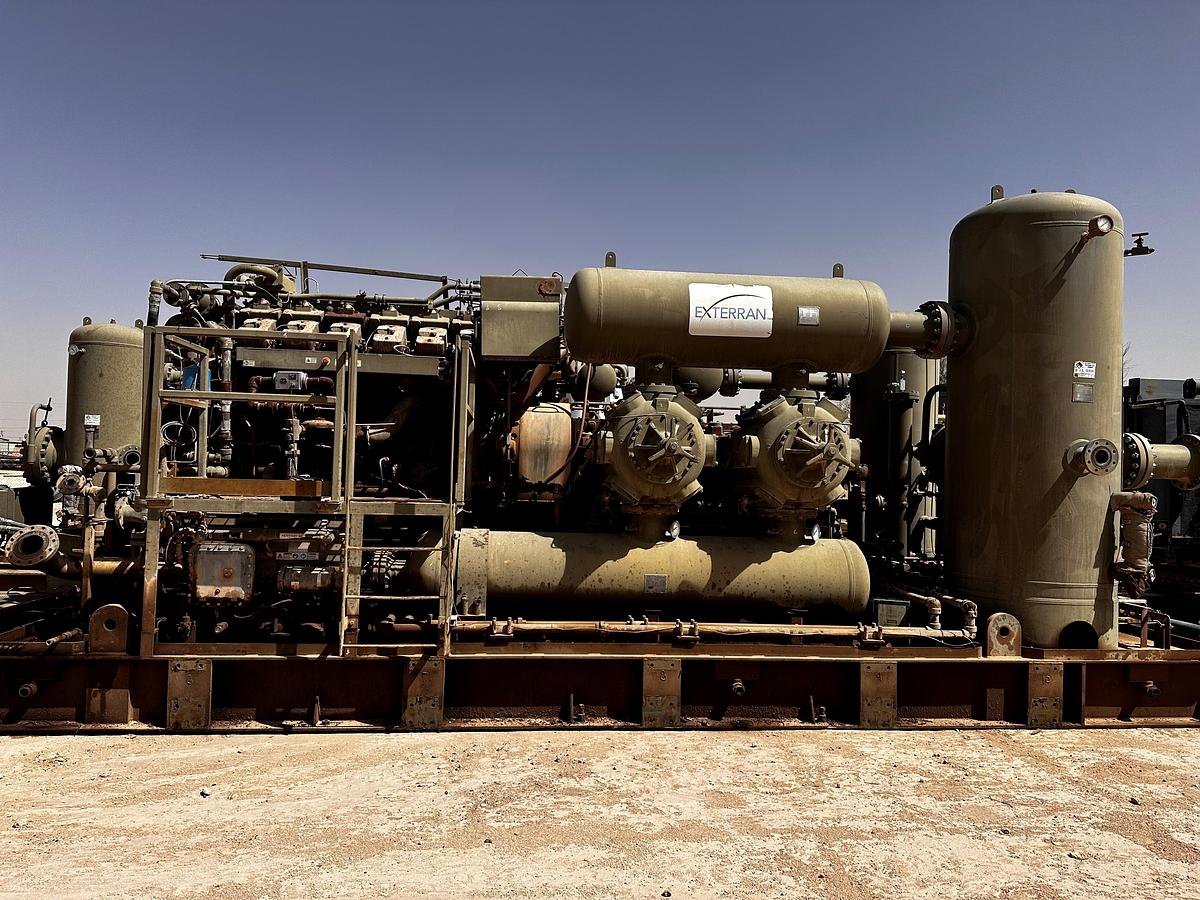

Quote: (4) Waukesha L7042GSI S4 ESM / Ariel JGK-4 Three Stage Compressor Packages Size 15.375" x 15.375" x 10.5" x 7.25" with 168EH Cooler

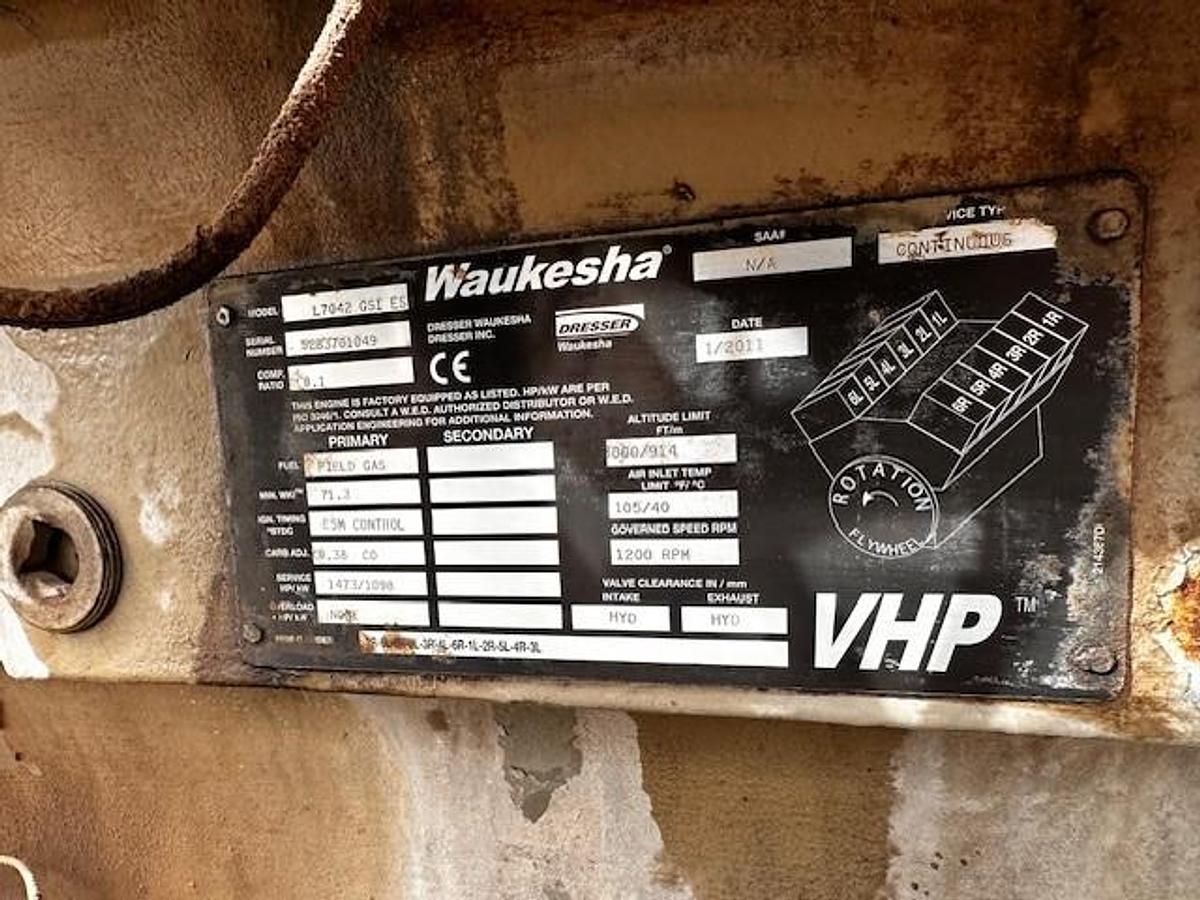

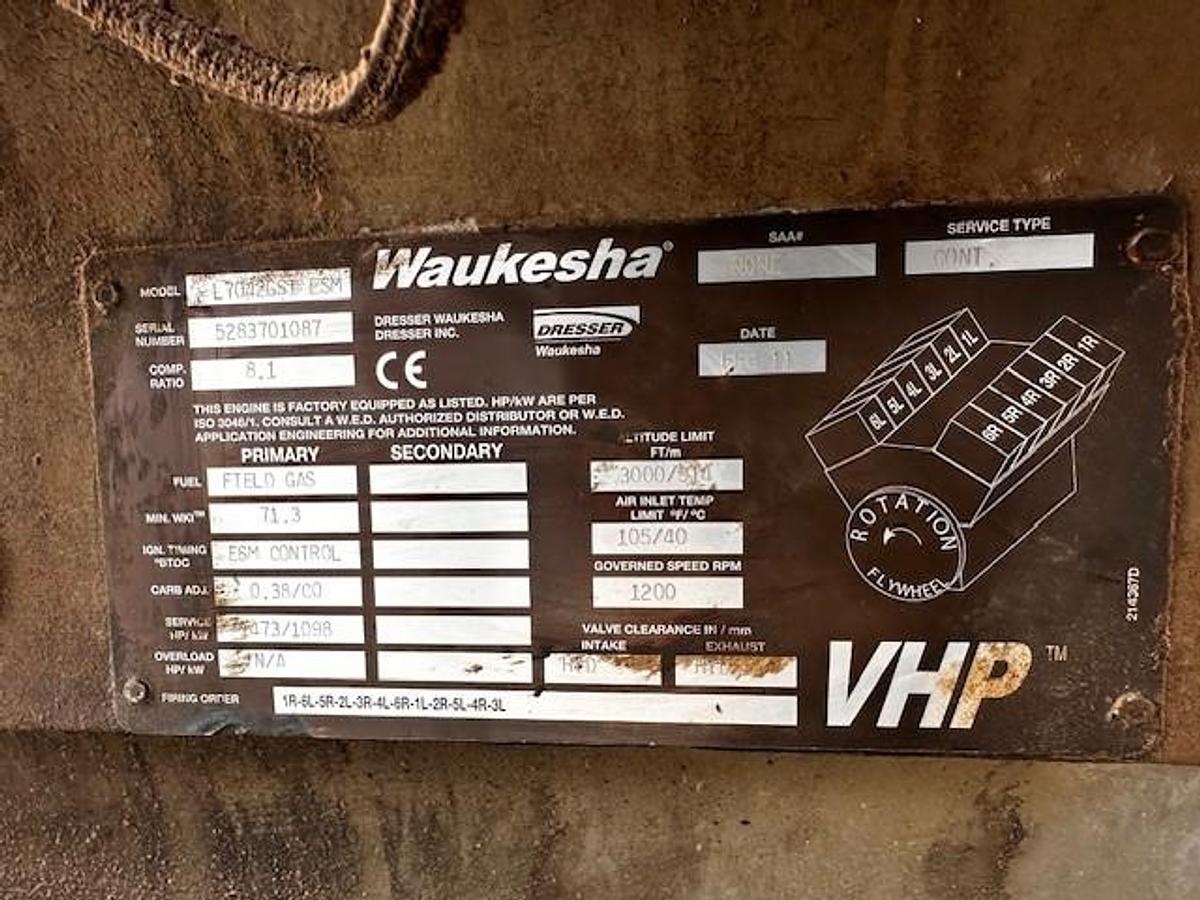

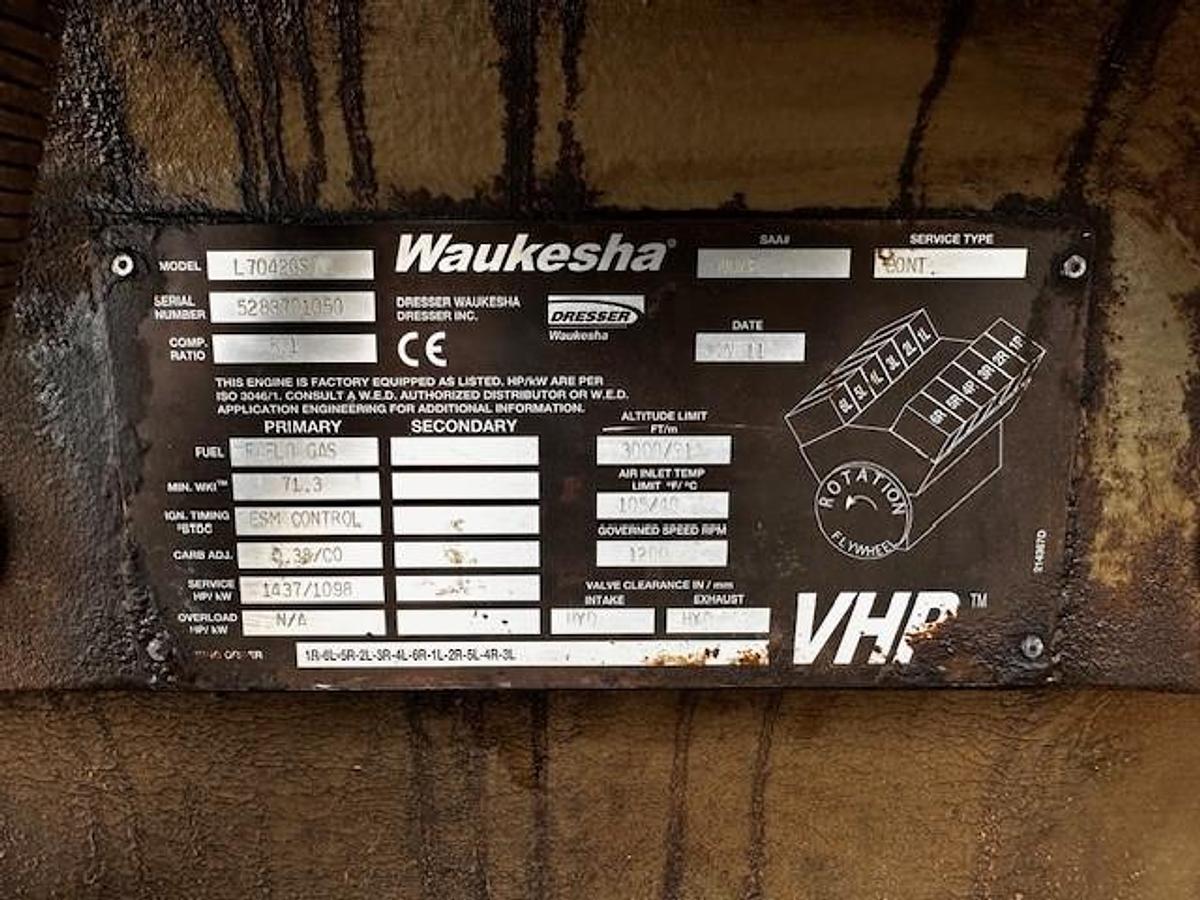

Waukesha VHP Engines

Model 7042GSI ESM

RPM: 1200

HP: 1473

MFG Date: 1/2011 / 2/2011

S/N 5283701049

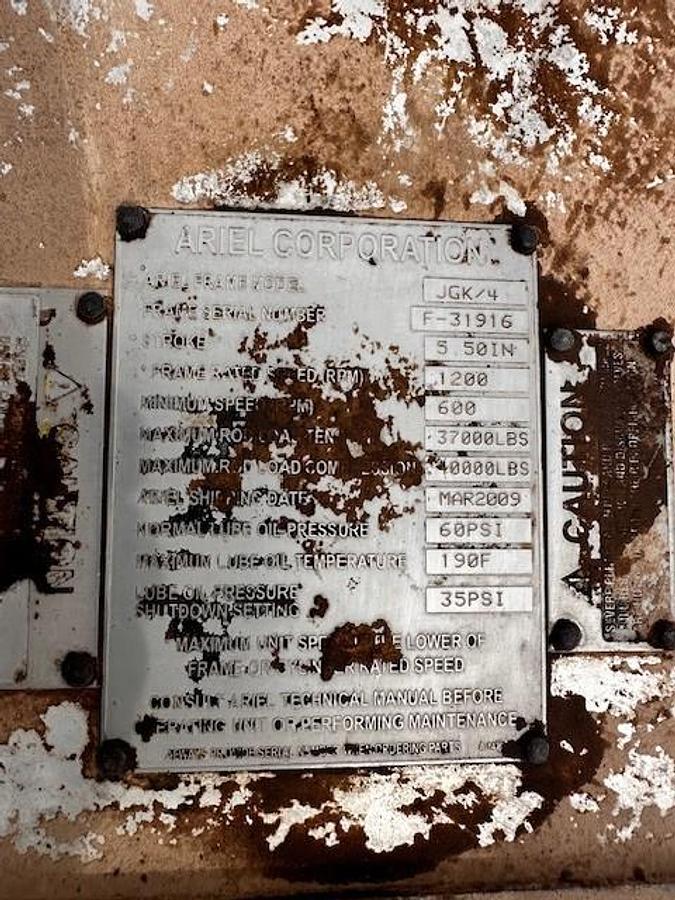

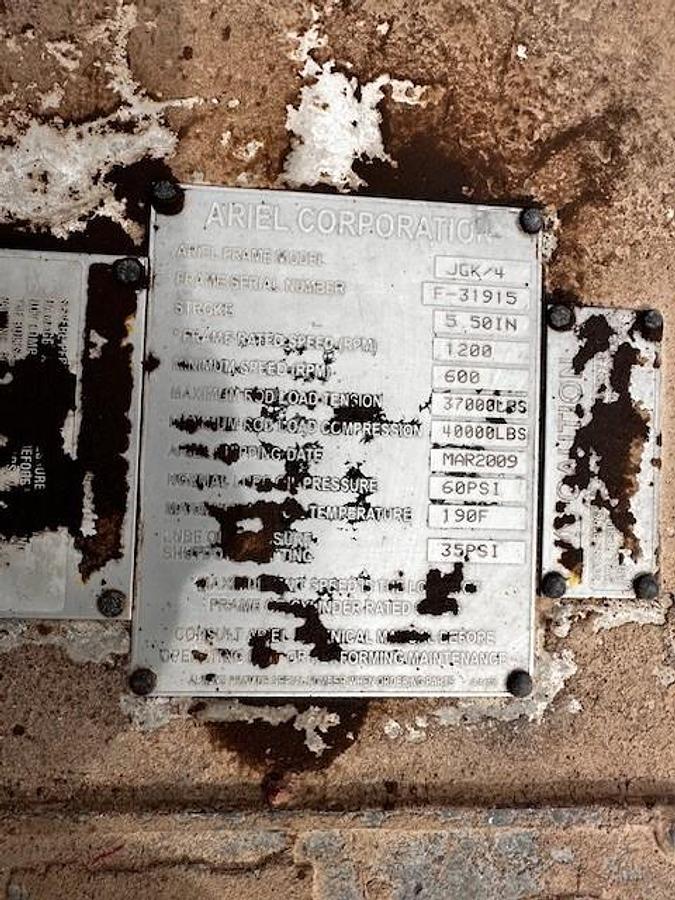

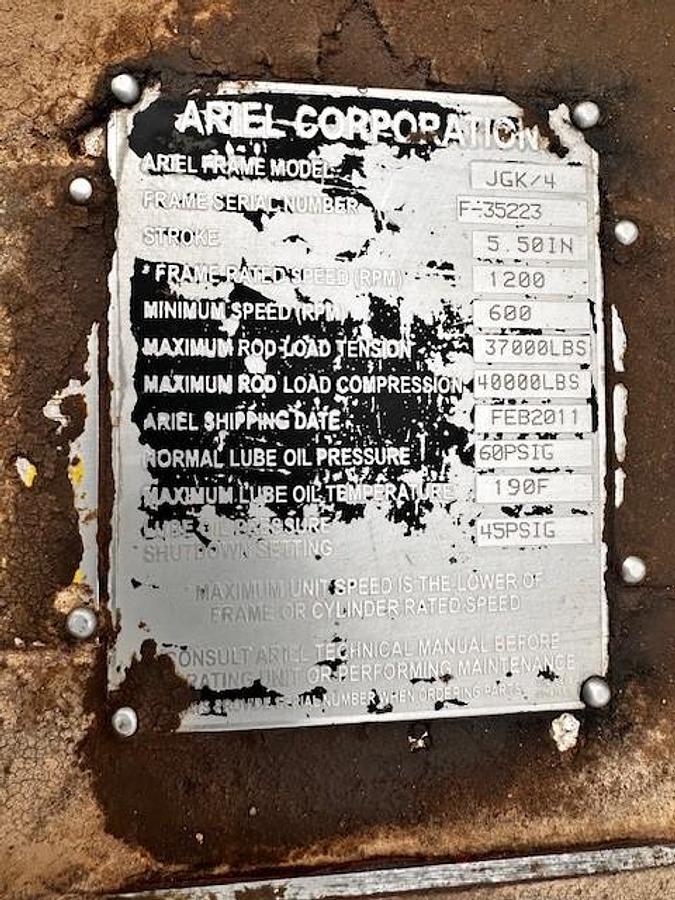

Ariel Compressor Frames

Model: JGK-4

Rod Load: 77,000 LB

S/N F-35223

1st Stage Cylinders

Bore: 15.375”

Stroke: 5.5”

Class: JGK

MAWP: 635

SN: C-121324

2nd Stage Cylinders

Bore: 10.5”

Stroke: 5.5”

Class: JGK

MAWP: 845

SN: C-121325

3rd Stage Cylinders

Bore: 7.25”

Stroke: 5.5”

Class: JGK

MAWP: 1900

SN: C-121323

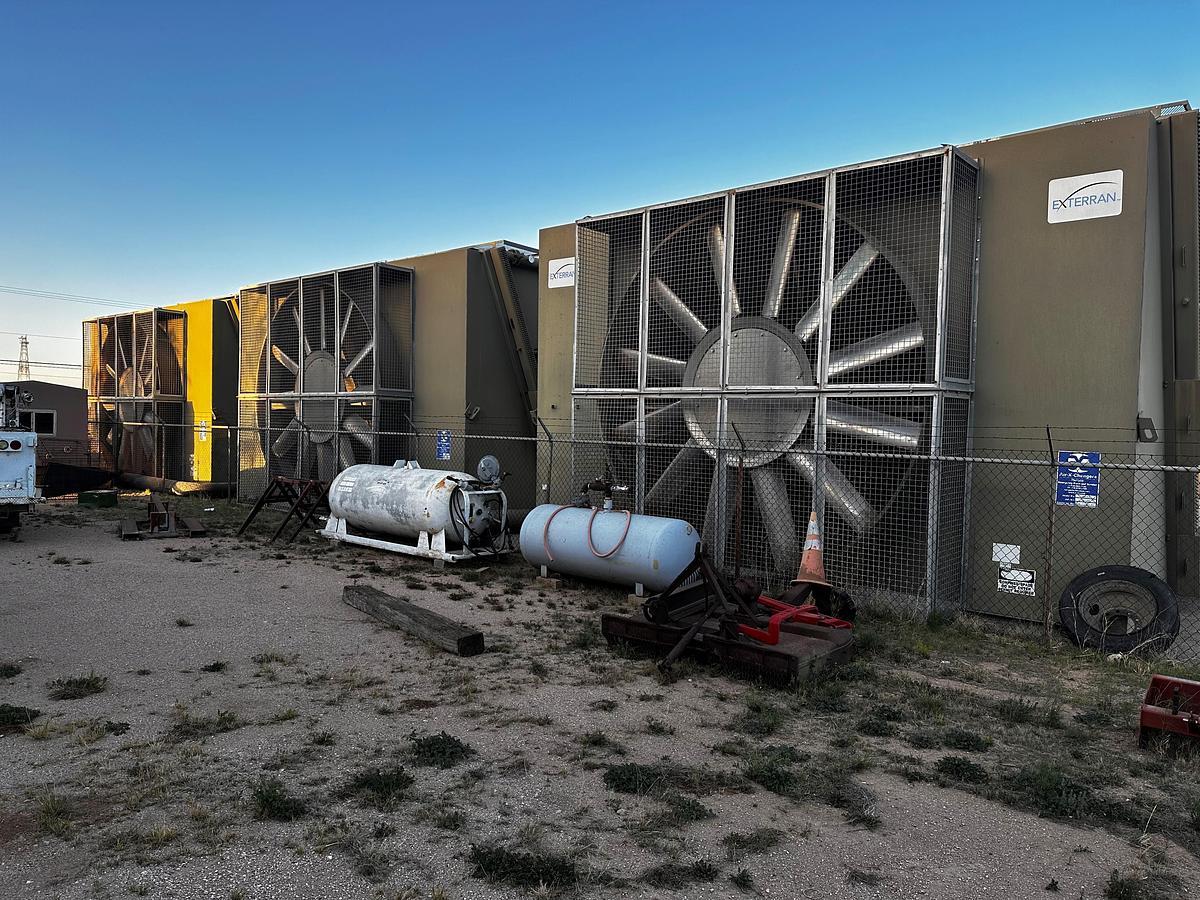

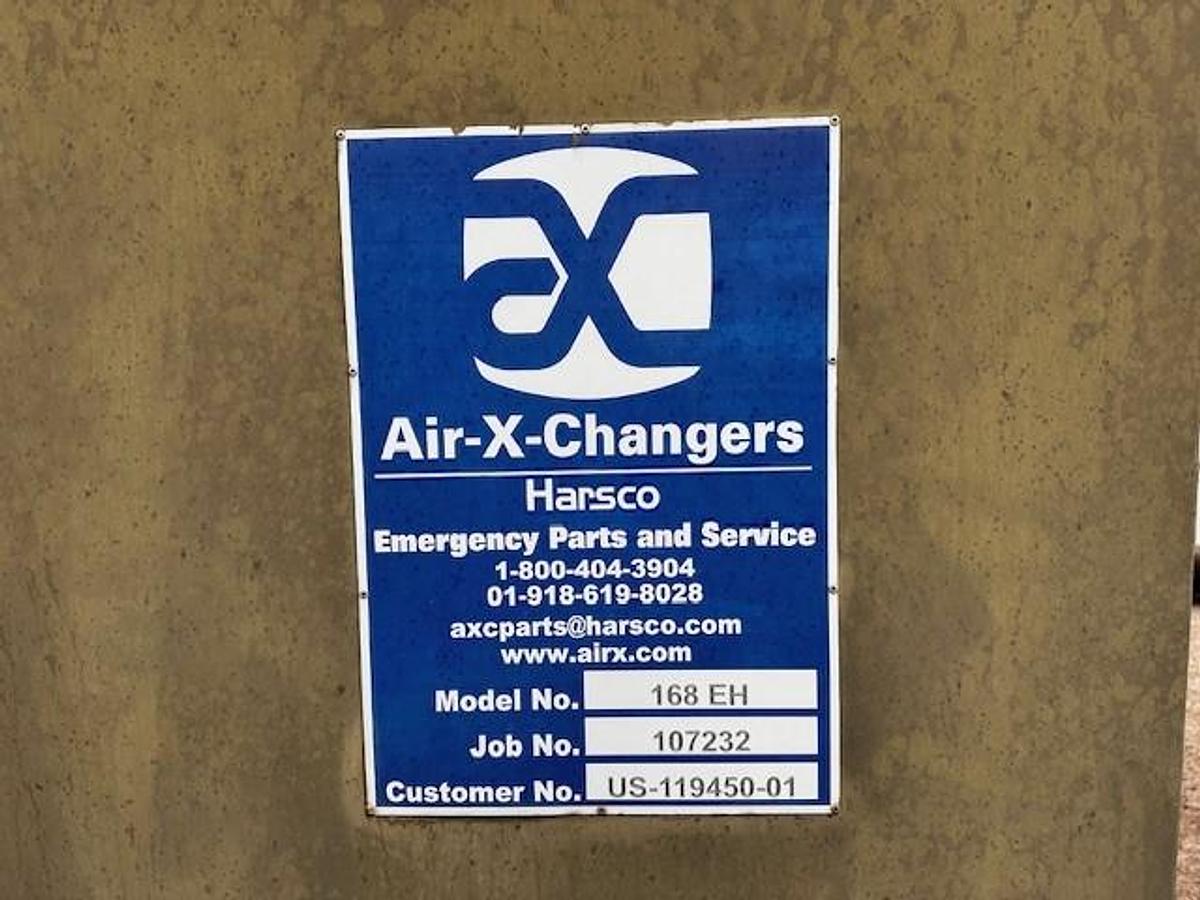

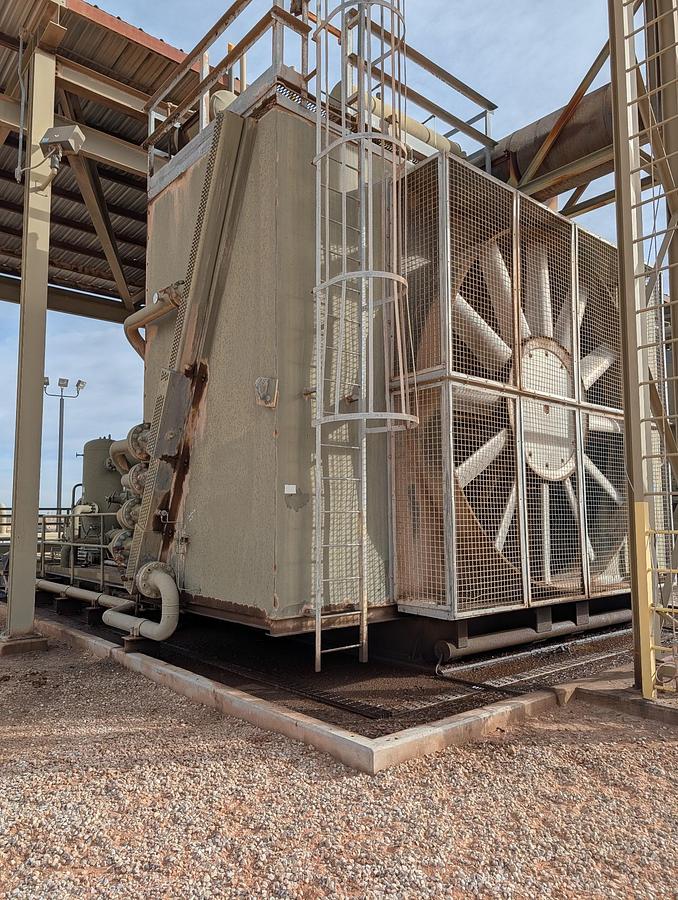

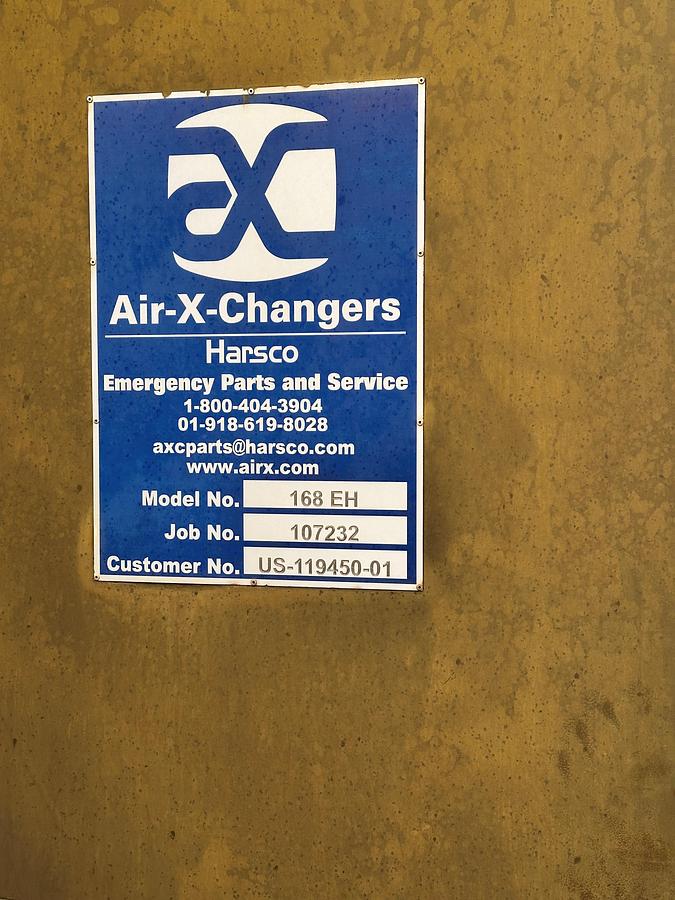

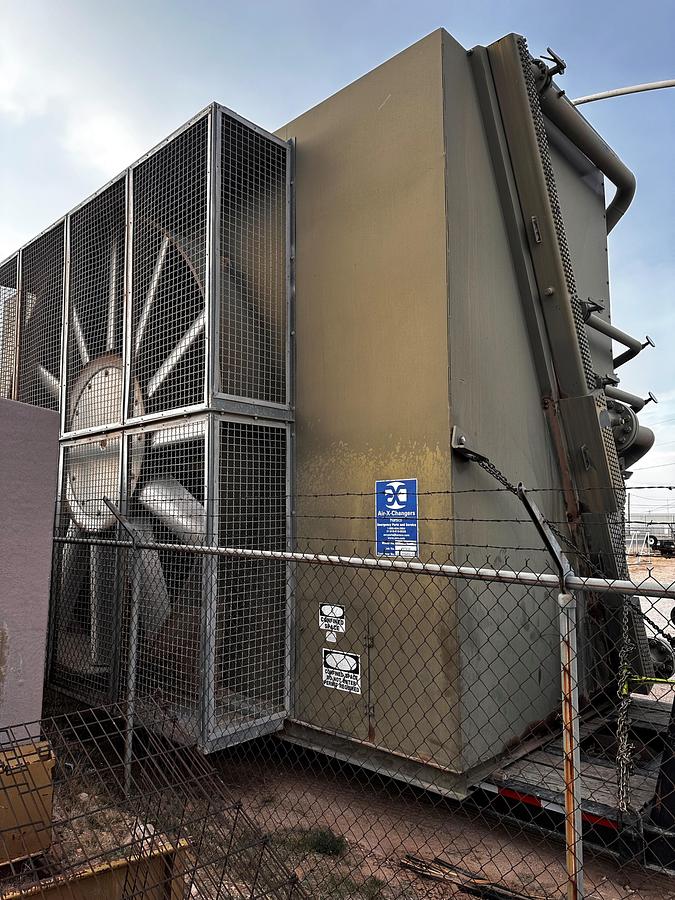

Air- Ex Coolers Model 168EH:

Cooler Sections MAWP 150, 200, 635, 845, 1287 psi

Job Number # 107232

Gas Scrubbers:

1st Stage   200 LB MAWP

Exterran Unit Job #:

Unit # 1 119450-01
