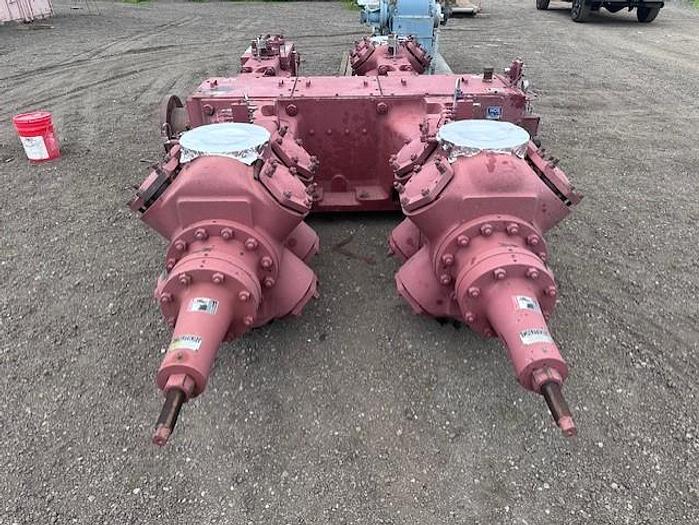

Ingersoll Rand 6HOS-4 Compressor Frame SN 6HF1035 with 13” x 13” x 9.5” x 6” Cylinders

Ingersoll Rand 6HOS-4 Compressor Frame SN 6HF1035 with 13” x 13” x 9.5” x 6” Cylinders

orCall (661) 257-8000

Description

Dresser-Rand Compressor

Model: 6HOS-4

Stroke: 6"

RPM: 1200

Year: 2006

SN: 6HF1035


Cylinder 1st and 2nd Stage

Type: HOS

Bore: 13" 330.2 mm

Stroke: 6" 152.4 mm

RDP: 585 41.1 kg/cm2g

MAWP: 644 45.3 kg/cm2g

HTP: 970 68.2 kg/cm2g

MADGT: 350 F 177 C

RPM: 1200

Base Cylinder Clearance

Outer End: 17.8

Frame End: 17.7

Normal Lineal Clearance

.09" 2.4mm

.06" 1.6mm

SN: 6HC3377

SN: 6HC3378


Cylinder 3rd Stage

Type: HOS

Bore: 9.5" 241.3 mm

Stroke: 6" 152.4 mm

RDP: 1150 88.9 kg/cm2g

MAWP: 1285 88.9 kg/cm2g

HTP: 1900 133.6 kg/cm2g

MADGT: 350 F 177 C

RPM: 1200

Base Cylinder Clearance

Outer End: 25.5

Frame End: 25.7

Normal Lineal Clearance

.09" 2.4mm

.06" 1.6mm

SN: 6HC3379


Cylinder 4th Stage

Type: HOS

Bore: 6" 152.4 mm

Stroke: 6" 152.4 mm

RDP: 1750 123.1 kg/cm2g

MAWP: 1925 135.4 kg/cm2g

HTP: 2890 203.2 kg/cm2g

MADGT: 350 F 177 C

RPM: 1200

Base Cylinder Clearance

Outer End: 24.8

Frame End: 30.0

Normal Lineal Clearance

.09" 2.4mm

.06" 1.6mm

SN: 6HC3380

Specifications

ManufacturerIngersoll Rand
Model6HOS-4
ConditionUsed
Serial Number6HF1035
Stock NumberCS-0020261
Model6HOS-4
Stroke6"
RPM1200
Year2006
SN6HF1035
